Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,954,291
ssj_ops@100% per JVM = 1,488,573
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 12, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,978,907
Calibration 2     5,972,702
Calibration 3     5,966,932
ssj_ops@calibrated=5,969,817
100% 99.7% 5,969,817 5,954,291
90% 90.0% 5,372,836 5,370,343
80% 79.9% 4,775,854 4,769,810
70% 70.0% 4,178,872 4,179,449
60% 60.1% 3,581,890 3,585,954
50% 49.9% 2,984,909 2,980,544
40% 40.0% 2,387,927 2,388,270
30% 30.1% 1,790,945 1,796,187
20% 20.1% 1,193,963 1,198,859
10% 10.0% 596,982 594,077
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 10
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: blade
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: 4.12.14-94.41-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=384 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=37 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: numactl --cpunodebind=[0-3] --localalloc
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
SY480-03.001 1,502,152
SY480-03.002 1,468,576
SY480-03.003 1,492,858
SY480-03.004 1,490,704
ssj_ops@100% 5,954,291
ssj_ops@100% per JVM 1,488,573

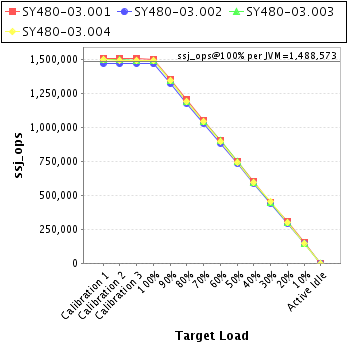

Graph of per-instance results
JVM 'SY480-03.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,510,598
Calibration 2     1,509,271
Calibration 3     1,506,297
ssj_ops@calibrated=1,507,784
100% 99.6% 1,507,784 1,502,152
90% 89.9% 1,357,006 1,356,027
80% 80.1% 1,206,227 1,207,764
70% 70.0% 1,055,449 1,055,116
60% 60.0% 904,670 903,951
50% 49.9% 753,892 752,676
40% 40.0% 603,114 603,042
30% 29.9% 452,335 451,099
20% 20.2% 301,557 304,458
10% 10.0% 150,778 150,969
Active Idle   0 0
Graph of results
JVM 'SY480-03.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,472,273
Calibration 2     1,470,896
Calibration 3     1,471,770
ssj_ops@calibrated=1,471,333
100% 99.8% 1,471,333 1,468,576
90% 90.0% 1,324,200 1,324,007
80% 80.1% 1,177,066 1,177,857
70% 70.0% 1,029,933 1,030,279
60% 60.1% 882,800 884,650
50% 50.0% 735,666 735,223
40% 40.1% 588,533 590,526
30% 30.1% 441,400 442,528
20% 19.9% 294,267 293,353
10% 10.0% 147,133 146,825
Active Idle   0 0
Graph of results
JVM 'SY480-03.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,498,382
Calibration 2     1,498,421
Calibration 3     1,494,242
ssj_ops@calibrated=1,496,331
100% 99.8% 1,496,331 1,492,858
90% 89.9% 1,346,698 1,345,257
80% 79.6% 1,197,065 1,191,731
70% 70.0% 1,047,432 1,047,639
60% 60.3% 897,799 902,373
50% 49.9% 748,166 746,988
40% 40.0% 598,533 598,101
30% 30.1% 448,899 450,029
20% 20.1% 299,266 300,805
10% 9.8% 149,633 147,309
Active Idle   0 0
Graph of results
JVM 'SY480-03.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,497,655
Calibration 2     1,494,115
Calibration 3     1,494,623
ssj_ops@calibrated=1,494,369
100% 99.8% 1,494,369 1,490,704
90% 90.0% 1,344,932 1,345,053
80% 79.8% 1,195,495 1,192,458
70% 70.0% 1,046,058 1,046,416
60% 59.9% 896,621 894,980
50% 49.9% 747,185 745,657
40% 39.9% 597,748 596,602
30% 30.3% 448,311 452,531
20% 20.1% 298,874 300,243
10% 10.0% 149,437 148,974
Active Idle   0 0
Graph of results
