Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,922,566
ssj_ops@100% per JVM = 1,480,642
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 12, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,951,167
Calibration 2     5,940,636
Calibration 3     5,938,045
ssj_ops@calibrated=5,939,341
100% 99.7% 5,939,341 5,922,566
90% 89.9% 5,345,407 5,337,889
80% 79.9% 4,751,473 4,744,887
70% 70.0% 4,157,538 4,155,917
60% 60.0% 3,563,604 3,564,694
50% 49.8% 2,969,670 2,960,046
40% 40.0% 2,375,736 2,377,244
30% 30.0% 1,781,802 1,783,046
20% 20.0% 1,187,868 1,188,857
10% 10.0% 593,934 593,908
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 10
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: blade
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: 4.12.14-94.41-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=384 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=37 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: numactl --cpunodebind=[0-3] --localalloc
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
SY480-01.001 1,462,438
SY480-01.002 1,491,005
SY480-01.003 1,491,655
SY480-01.004 1,477,469
ssj_ops@100% 5,922,566
ssj_ops@100% per JVM 1,480,642

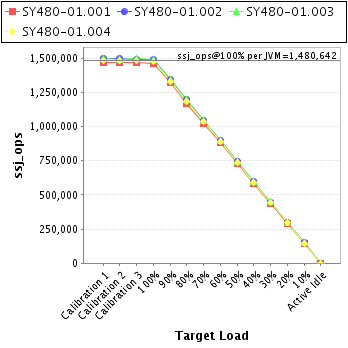

Graph of per-instance results
JVM 'SY480-01.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,469,071
Calibration 2     1,467,292
Calibration 3     1,465,850
ssj_ops@calibrated=1,466,571
100% 99.7% 1,466,571 1,462,438
90% 90.1% 1,319,914 1,321,735
80% 79.7% 1,173,257 1,168,280
70% 69.9% 1,026,600 1,025,603
60% 60.0% 879,943 880,617
50% 49.8% 733,286 730,466
40% 39.9% 586,629 585,530
30% 30.1% 439,971 440,850
20% 20.0% 293,314 293,777
10% 10.1% 146,657 147,641
Active Idle   0 0
Graph of results
JVM 'SY480-01.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,500,782
Calibration 2     1,497,744
Calibration 3     1,492,965
ssj_ops@calibrated=1,495,355
100% 99.7% 1,495,355 1,491,005
90% 89.9% 1,345,819 1,343,917
80% 79.9% 1,196,284 1,195,268
70% 70.0% 1,046,748 1,046,448
60% 60.1% 897,213 898,569
50% 49.9% 747,677 746,686
40% 40.1% 598,142 600,364
30% 29.9% 448,606 447,004
20% 20.0% 299,071 298,582
10% 10.0% 149,535 148,990
Active Idle   0 0
Graph of results
JVM 'SY480-01.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,495,258
Calibration 2     1,494,647
Calibration 3     1,496,473
ssj_ops@calibrated=1,495,560
100% 99.7% 1,495,560 1,491,655
90% 89.8% 1,346,004 1,342,976
80% 80.1% 1,196,448 1,197,612
70% 70.0% 1,046,892 1,046,934
60% 60.0% 897,336 897,900
50% 49.9% 747,780 746,484
40% 40.1% 598,224 599,605
30% 30.1% 448,668 449,779
20% 20.0% 299,112 299,035
10% 10.0% 149,556 149,903
Active Idle   0 0
Graph of results
JVM 'SY480-01.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,486,056
Calibration 2     1,480,953
Calibration 3     1,482,756
ssj_ops@calibrated=1,481,855
100% 99.7% 1,481,855 1,477,469
90% 89.7% 1,333,669 1,329,262
80% 79.9% 1,185,484 1,183,727
70% 70.0% 1,037,298 1,036,931
60% 59.9% 889,113 887,609
50% 49.7% 740,927 736,409
40% 39.9% 592,742 591,744
30% 30.1% 444,556 445,412
20% 20.1% 296,371 297,463
10% 9.9% 148,185 147,374
Active Idle   0 0
Graph of results
