Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module SPECpower_ssj2008 = 10,951 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 12, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 4,930 23.6
Calibration 2 4,949 23.7
Calibration 3 4,961 23.8
100% 4,940 23.8
90% 4,464 23.9
80% 3,894 24.1
70% 3,313 24.2
60% 2,899 24.1
50% 2,533 24.2
40% 2,200 24.1
30% 1,889 24.1
20% 1,603 24.1
10% 1,347 24.0
Active Idle 700 23.9

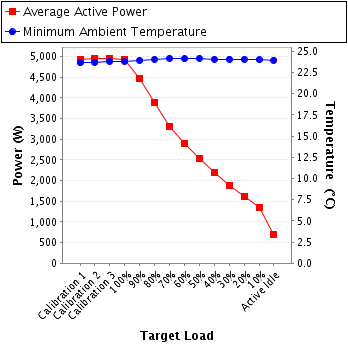

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 3
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 5.57 20.0 0.995 1,181 0.7%
Calibration 2 213 300.0 5.56 20.0 0.995 1,179 0.7%
Calibration 3 213 300.0 5.57 20.0 0.995 1,180 0.7%
100% 213 300.0 5.53 20.0 0.995 1,174 0.7%
90% 214 300.0 5.01 20.0 0.995 1,069 0.7%
80% 215 300.0 4.29 10.0 0.993 917 0.5%
70% 215 300.0 3.71 10.0 0.991 790 0.6%
60% 215 300.0 3.30 10.0 0.989 701 0.6%
50% 215 300.0 2.94 10.0 0.987 624 0.7%
40% 215 300.0 2.58 10.0 0.983 545 0.7%
30% 215 300.0 2.21 5.0 0.976 463 0.5%
20% 215 300.0 1.83 5.0 0.965 379 0.6%
10% 215 300.0 1.48 2.0 0.947 302 0.4%
Active Idle 215 300.0 0.905 1.0 0.829 161 0.5%

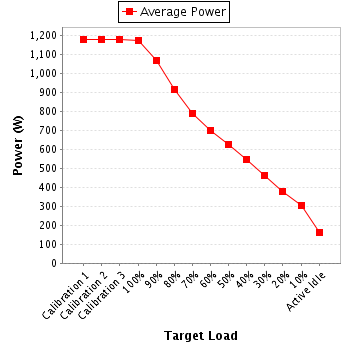

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 11.9 20.0 0.996 2,520 0.4%
Calibration 2 212 300.0 12.0 20.0 0.996 2,536 0.4%
Calibration 3 212 300.0 12.0 20.0 0.996 2,531 0.4%
100% 212 300.0 12.0 20.0 0.996 2,535 0.4%
90% 213 300.0 10.8 20.0 0.996 2,292 0.4%
80% 214 300.0 9.49 10.0 0.996 2,023 0.3%
70% 214 300.0 7.98 10.0 0.994 1,696 0.3%
60% 214 300.0 6.97 10.0 0.992 1,480 0.4%
50% 214 300.0 6.09 10.0 0.990 1,292 0.4%
40% 214 300.0 5.32 10.0 0.987 1,124 0.4%
30% 214 300.0 4.60 5.0 0.982 968 0.3%
20% 214 300.0 3.98 5.0 0.976 831 0.4%
10% 214 300.0 3.41 5.0 0.967 707 0.4%
Active Idle 214 300.0 1.97 5.0 0.883 373 0.7%

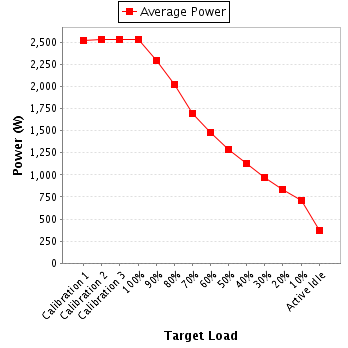

Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 5.87 10.0 0.994 1,229 0.4%
Calibration 2 210 300.0 5.90 10.0 0.994 1,234 0.4%
Calibration 3 210 300.0 5.98 10.0 0.994 1,251 0.4%
100% 211 300.0 5.88 10.0 0.994 1,231 0.4%
90% 212 300.0 5.24 10.0 0.995 1,103 0.4%
80% 212 300.0 4.52 10.0 0.993 955 0.5%
70% 212 300.0 3.94 10.0 0.991 827 0.5%
60% 212 300.0 3.43 5.0 0.988 718 0.4%
50% 212 300.0 2.95 5.0 0.985 617 0.4%
40% 212 300.0 2.56 5.0 0.979 531 0.5%
30% 212 300.0 2.22 5.0 0.973 457 0.5%
20% 212 300.0 1.93 5.0 0.964 393 0.6%
10% 212 300.0 1.68 5.0 0.953 339 0.7%
Active Idle 212 300.0 0.953 2.0 0.826 167 0.6%

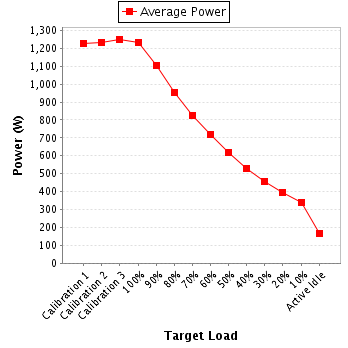

Power details for pwr3
