Hewlett Packard Enterprise ProLiant ML350 Gen10 ssj_ops@100% = 5,735,589
ssj_ops@100% per JVM = 1,433,897
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 7, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2018 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,749,947
Calibration 2     5,752,009
Calibration 3     5,749,702
ssj_ops@calibrated=5,750,855
100% 99.7% 5,750,855 5,735,589
90% 89.9% 5,175,770 5,170,364
80% 80.0% 4,600,684 4,602,763
70% 70.0% 4,025,599 4,023,676
60% 60.1% 3,450,513 3,456,199
50% 50.0% 2,875,428 2,875,841
40% 39.9% 2,300,342 2,296,794
30% 29.9% 1,725,257 1,722,031
20% 20.0% 1,150,171 1,152,918
10% 10.0% 575,086 575,604
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant ML350 Gen10
Form Factor: Tower
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit 96% (865438-B21)
Disk Drive: 1 x HPE 240GB 6G SATA M.2 SSD (875488-B21)
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 4-port 369i Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: Performance Heatsinks, M.2 universal enablement card kit (878783-B21), HPE ML350 Gen10 Redundant Fan Cage Kit (874572-B21)
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 2100
JVM Maximum Heap (MB): 2100
JVM Address Bits: 64
Boot Firmware Version: U41 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019), Microsoft Windows KB4054519, and KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-7FUM06C2DMG.001 1,428,277
WIN-7FUM06C2DMG.002 1,429,477
WIN-7FUM06C2DMG.003 1,433,546
WIN-7FUM06C2DMG.004 1,444,289
ssj_ops@100% 5,735,589
ssj_ops@100% per JVM 1,433,897

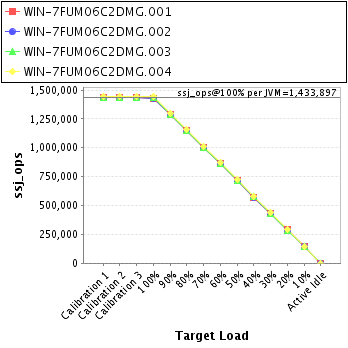

Graph of per-instance results
JVM 'WIN-7FUM06C2DMG.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,435,633
Calibration 2     1,436,428
Calibration 3     1,435,342
ssj_ops@calibrated=1,435,885
100% 99.5% 1,435,885 1,428,277
90% 89.9% 1,292,296 1,291,063
80% 80.3% 1,148,708 1,152,433
70% 70.0% 1,005,119 1,004,592
60% 60.0% 861,531 861,798
50% 50.1% 717,942 718,670
40% 39.9% 574,354 572,313
30% 29.7% 430,765 426,962
20% 20.2% 287,177 289,625
10% 10.0% 143,588 143,392
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-7FUM06C2DMG.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,433,136
Calibration 2     1,433,465
Calibration 3     1,431,124
ssj_ops@calibrated=1,432,295
100% 99.8% 1,432,295 1,429,477
90% 90.0% 1,289,065 1,289,293
80% 80.0% 1,145,836 1,145,810
70% 70.1% 1,002,606 1,004,165
60% 60.4% 859,377 865,693
50% 49.9% 716,147 715,361
40% 39.7% 572,918 568,782
30% 30.0% 429,688 430,055
20% 20.0% 286,459 286,047
10% 10.1% 143,229 144,210
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-7FUM06C2DMG.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,434,636
Calibration 2     1,435,480
Calibration 3     1,437,321
ssj_ops@calibrated=1,436,401
100% 99.8% 1,436,401 1,433,546
90% 89.7% 1,292,761 1,289,118
80% 79.9% 1,149,121 1,147,395
70% 69.8% 1,005,481 1,003,222
60% 59.9% 861,840 860,195
50% 50.1% 718,200 719,716
40% 40.0% 574,560 573,995
30% 29.9% 430,920 429,472
20% 19.9% 287,280 285,260
10% 10.0% 143,640 144,214
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-7FUM06C2DMG.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,446,543
Calibration 2     1,446,635
Calibration 3     1,445,914
ssj_ops@calibrated=1,446,275
100% 99.9% 1,446,275 1,444,289
90% 89.9% 1,301,647 1,300,890
80% 80.0% 1,157,020 1,157,125
70% 70.0% 1,012,392 1,011,697
60% 60.1% 867,765 868,513
50% 49.9% 723,137 722,095
40% 40.2% 578,510 581,704
30% 30.1% 433,882 435,542
20% 20.2% 289,255 291,986
10% 9.9% 144,627 143,789
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
