Supermicro Inc. SYS-1029U-TR4 ssj_ops@100% = 5,655,930
ssj_ops@100% per JVM = 100,999
Test Sponsor: Supermicro Inc. SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Inc. Test Location: Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) Test Date: Dec 20, 2018
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,689,044
Calibration 2     5,658,467
Calibration 3     5,665,041
ssj_ops@calibrated=5,661,754
100% 99.9% 5,661,754 5,655,930
90% 89.9% 5,095,578 5,091,024
80% 81.0% 4,529,403 4,583,568
70% 69.9% 3,963,228 3,960,106
60% 60.0% 3,397,052 3,395,362
50% 50.0% 2,830,877 2,830,748
40% 40.0% 2,264,702 2,267,495
30% 30.1% 1,698,526 1,702,125
20% 20.0% 1,132,351 1,131,021
10% 10.0% 566,175 566,825
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro Inc.
Model: SYS-1029U-TR4
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8280L 2.70GHz
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 12 x 32 GB
Memory Details: 12 x 32GB 2Rx4 PC4-2666P; CPU1/2 A1,B1,C1,D1,E1,F1 populated.
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: PWS-751P-1R (S/N:P751PCH16A00814)
Disk Drive: 1 x Samsung SATA III 480 GB SSD (S/N:MZ7KM480HAHP-00005)
Disk Controller: onboard SCU controller
# and type of Network Interface Cards (NICs) Installed: 1 x Quad-port RSC Intel I350 Gigabit Ethernet controller, AOC-UR-i4G
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1500m -Xmx1500m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2] /AFFINITY [3, C, 30, C0, C000, 30000, C0000, 30000000, C0000000, 300000000, C00000000, C0000000000, 300000000000, C00000000000];start /NODE [1,3] /AFFINITY [3, C, 30, 3000, C000, 30000, C0000, 30000000, C0000000, 300000000, C00000000, C0000000000, 300000000000, C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: X11DPU9_111
Management Firmware Version: SMT_X11AST2500_164
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4054519
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-T7TB06H8NR6.001 100,653
WIN-T7TB06H8NR6.002 101,067
WIN-T7TB06H8NR6.003 99,096
WIN-T7TB06H8NR6.004 100,362
WIN-T7TB06H8NR6.005 101,446
WIN-T7TB06H8NR6.006 104,393
WIN-T7TB06H8NR6.007 99,973
WIN-T7TB06H8NR6.008 101,821
WIN-T7TB06H8NR6.009 99,935
WIN-T7TB06H8NR6.010 98,760
WIN-T7TB06H8NR6.011 101,067
WIN-T7TB06H8NR6.012 99,749
WIN-T7TB06H8NR6.013 101,811
WIN-T7TB06H8NR6.014 101,847
WIN-T7TB06H8NR6.015 101,001
WIN-T7TB06H8NR6.016 102,279
WIN-T7TB06H8NR6.017 100,948
WIN-T7TB06H8NR6.018 100,656
WIN-T7TB06H8NR6.019 101,150
WIN-T7TB06H8NR6.020 101,668
WIN-T7TB06H8NR6.021 101,245
WIN-T7TB06H8NR6.022 102,327
WIN-T7TB06H8NR6.023 102,033
WIN-T7TB06H8NR6.024 101,537
WIN-T7TB06H8NR6.025 101,041
WIN-T7TB06H8NR6.026 99,114
WIN-T7TB06H8NR6.027 101,878
WIN-T7TB06H8NR6.028 101,593
WIN-T7TB06H8NR6.029 100,037
WIN-T7TB06H8NR6.030 101,241
WIN-T7TB06H8NR6.031 100,674
WIN-T7TB06H8NR6.032 100,282
WIN-T7TB06H8NR6.033 101,069
WIN-T7TB06H8NR6.034 101,595
WIN-T7TB06H8NR6.035 102,962
WIN-T7TB06H8NR6.036 102,193
WIN-T7TB06H8NR6.037 101,436
WIN-T7TB06H8NR6.038 98,945
WIN-T7TB06H8NR6.039 99,880
WIN-T7TB06H8NR6.040 102,268
WIN-T7TB06H8NR6.041 102,313
WIN-T7TB06H8NR6.042 99,495
WIN-T7TB06H8NR6.043 99,532
WIN-T7TB06H8NR6.044 101,191
WIN-T7TB06H8NR6.045 101,499
WIN-T7TB06H8NR6.046 100,399
WIN-T7TB06H8NR6.047 98,520
WIN-T7TB06H8NR6.048 103,197
WIN-T7TB06H8NR6.049 99,637
WIN-T7TB06H8NR6.050 101,784
WIN-T7TB06H8NR6.051 100,355
WIN-T7TB06H8NR6.052 102,923
WIN-T7TB06H8NR6.053 100,576
WIN-T7TB06H8NR6.054 101,650
WIN-T7TB06H8NR6.055 100,460
WIN-T7TB06H8NR6.056 99,365
ssj_ops@100% 5,655,930
ssj_ops@100% per JVM 100,999
Graph of per-instance results
JVM 'WIN-T7TB06H8NR6.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,508
Calibration 2     99,579
Calibration 3     101,259
ssj_ops@calibrated=100,419
100% 100.2% 100,419 100,653
90% 89.9% 90,377 90,307
80% 81.1% 80,335 81,396
70% 70.9% 70,293 71,198
60% 59.6% 60,251 59,856
50% 50.9% 50,209 51,112
40% 40.5% 40,167 40,695
30% 30.0% 30,126 30,083
20% 19.5% 20,084 19,562
10% 10.0% 10,042 10,049
Active Idle   0 0
Graph of results

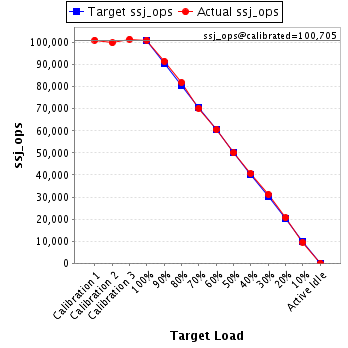

JVM 'WIN-T7TB06H8NR6.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,087
Calibration 2     99,879
Calibration 3     101,532
ssj_ops@calibrated=100,705
100% 100.4% 100,705 101,067
90% 90.9% 90,635 91,522
80% 81.3% 80,564 81,877
70% 69.7% 70,494 70,229
60% 60.2% 60,423 60,587
50% 49.7% 50,353 50,006
40% 40.4% 40,282 40,658
30% 31.0% 30,212 31,189
20% 20.5% 20,141 20,623
10% 9.5% 10,071 9,583
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,057
Calibration 2     97,992
Calibration 3     99,715
ssj_ops@calibrated=98,854
100% 100.2% 98,854 99,096
90% 90.1% 88,968 89,064
80% 80.2% 79,083 79,240
70% 69.4% 69,198 68,594
60% 60.4% 59,312 59,731
50% 49.0% 49,427 48,448
40% 40.3% 39,541 39,864
30% 30.0% 29,656 29,648
20% 19.9% 19,771 19,702
10% 9.9% 9,885 9,816
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,616
Calibration 2     100,034
Calibration 3     101,222
ssj_ops@calibrated=100,628
100% 99.7% 100,628 100,362
90% 90.4% 90,565 90,977
80% 82.5% 80,503 82,997
70% 70.7% 70,440 71,117
60% 59.6% 60,377 59,953
50% 49.9% 50,314 50,236
40% 40.2% 40,251 40,501
30% 30.3% 30,188 30,448
20% 20.1% 20,126 20,233
10% 9.8% 10,063 9,904
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,613
Calibration 2     100,567
Calibration 3     102,072
ssj_ops@calibrated=101,320
100% 100.1% 101,320 101,446
90% 90.6% 91,188 91,793
80% 81.6% 81,056 82,670
70% 70.1% 70,924 71,070
60% 60.4% 60,792 61,156
50% 50.4% 50,660 51,055
40% 40.4% 40,528 40,950
30% 30.0% 30,396 30,400
20% 19.9% 20,264 20,207
10% 10.3% 10,132 10,454
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,623
Calibration 2     103,783
Calibration 3     105,189
ssj_ops@calibrated=104,486
100% 99.9% 104,486 104,393
90% 90.8% 94,037 94,867
80% 81.7% 83,589 85,361
70% 70.2% 73,140 73,383
60% 60.1% 62,692 62,765
50% 49.9% 52,243 52,121
40% 40.7% 41,794 42,487
30% 29.9% 31,346 31,213
20% 20.0% 20,897 20,913
10% 10.3% 10,449 10,719
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,370
Calibration 2     99,298
Calibration 3     100,508
ssj_ops@calibrated=99,903
100% 100.1% 99,903 99,973
90% 90.3% 89,912 90,204
80% 80.9% 79,922 80,852
70% 69.0% 69,932 68,938
60% 59.3% 59,942 59,244
50% 50.1% 49,951 50,079
40% 39.9% 39,961 39,908
30% 30.1% 29,971 30,083
20% 19.9% 19,981 19,911
10% 10.0% 9,990 9,984
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,431
Calibration 2     102,246
Calibration 3     102,915
ssj_ops@calibrated=102,580
100% 99.3% 102,580 101,821
90% 90.7% 92,322 93,050
80% 80.9% 82,064 83,000
70% 70.7% 71,806 72,481
60% 59.4% 61,548 60,983
50% 50.4% 51,290 51,726
40% 39.5% 41,032 40,511
30% 30.3% 30,774 31,054
20% 20.2% 20,516 20,744
10% 10.1% 10,258 10,352
Active Idle   0 0
Graph of results

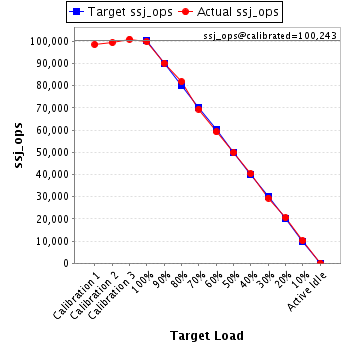

JVM 'WIN-T7TB06H8NR6.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,626
Calibration 2     99,457
Calibration 3     101,029
ssj_ops@calibrated=100,243
100% 99.7% 100,243 99,935
90% 90.0% 90,219 90,250
80% 81.7% 80,194 81,850
70% 69.3% 70,170 69,438
60% 59.1% 60,146 59,244
50% 49.8% 50,121 49,937
40% 40.3% 40,097 40,359
30% 29.3% 30,073 29,405
20% 20.4% 20,049 20,498
10% 10.2% 10,024 10,176
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,106
Calibration 2     98,243
Calibration 3     99,874
ssj_ops@calibrated=99,059
100% 99.7% 99,059 98,760
90% 91.0% 89,153 90,102
80% 81.5% 79,247 80,772
70% 70.2% 69,341 69,585
60% 60.6% 59,435 59,984
50% 49.9% 49,529 49,391
40% 39.8% 39,623 39,401
30% 30.5% 29,718 30,201
20% 20.1% 19,812 19,889
10% 10.0% 9,906 9,941
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,919
Calibration 2     99,738
Calibration 3     101,552
ssj_ops@calibrated=100,645
100% 100.4% 100,645 101,067
90% 90.8% 90,580 91,386
80% 81.1% 80,516 81,637
70% 70.3% 70,451 70,764
60% 59.8% 60,387 60,189
50% 49.2% 50,322 49,504
40% 39.4% 40,258 39,659
30% 30.6% 30,193 30,758
20% 19.7% 20,129 19,814
10% 9.9% 10,064 9,965
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,695
Calibration 2     98,919
Calibration 3     100,104
ssj_ops@calibrated=99,511
100% 100.2% 99,511 99,749
90% 90.3% 89,560 89,895
80% 81.0% 79,609 80,571
70% 69.7% 69,658 69,314
60% 60.3% 59,707 59,978
50% 49.6% 49,756 49,312
40% 39.7% 39,805 39,498
30% 30.5% 29,853 30,398
20% 19.7% 19,902 19,644
10% 10.3% 9,951 10,229
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,304
Calibration 2     100,915
Calibration 3     101,719
ssj_ops@calibrated=101,317
100% 100.5% 101,317 101,811
90% 91.1% 91,186 92,329
80% 81.3% 81,054 82,343
70% 70.4% 70,922 71,325
60% 60.1% 60,790 60,846
50% 50.4% 50,659 51,059
40% 39.6% 40,527 40,074
30% 30.2% 30,395 30,588
20% 20.6% 20,263 20,886
10% 10.1% 10,132 10,271
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,763
Calibration 2     101,343
Calibration 3     102,304
ssj_ops@calibrated=101,823
100% 100.0% 101,823 101,847
90% 90.4% 91,641 92,082
80% 80.8% 81,459 82,249
70% 69.3% 71,276 70,568
60% 60.1% 61,094 61,205
50% 49.8% 50,912 50,745
40% 39.8% 40,729 40,571
30% 30.0% 30,547 30,531
20% 20.1% 20,365 20,481
10% 10.1% 10,182 10,332
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,723
Calibration 2     99,450
Calibration 3     101,238
ssj_ops@calibrated=100,344
100% 100.7% 100,344 101,001
90% 90.4% 90,310 90,728
80% 80.9% 80,275 81,185
70% 69.9% 70,241 70,124
60% 60.1% 60,206 60,352
50% 49.9% 50,172 50,092
40% 40.2% 40,138 40,314
30% 29.9% 30,103 30,041
20% 20.0% 20,069 20,090
10% 10.0% 10,034 10,058
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,855
Calibration 2     100,713
Calibration 3     102,684
ssj_ops@calibrated=101,698
100% 100.6% 101,698 102,279
90% 90.3% 91,529 91,864
80% 81.4% 81,359 82,820
70% 70.2% 71,189 71,368
60% 60.3% 61,019 61,347
50% 50.5% 50,849 51,351
40% 40.1% 40,679 40,793
30% 29.4% 30,510 29,912
20% 19.6% 20,340 19,889
10% 10.0% 10,170 10,183
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,683
Calibration 2     100,228
Calibration 3     101,716
ssj_ops@calibrated=100,972
100% 100.0% 100,972 100,948
90% 90.3% 90,875 91,201
80% 80.1% 80,777 80,913
70% 69.4% 70,680 70,034
60% 59.9% 60,583 60,475
50% 49.5% 50,486 49,941
40% 41.1% 40,389 41,539
30% 29.5% 30,292 29,804
20% 20.1% 20,194 20,301
10% 10.2% 10,097 10,345
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,473
Calibration 2     99,153
Calibration 3     101,017
ssj_ops@calibrated=100,085
100% 100.6% 100,085 100,656
90% 90.8% 90,077 90,894
80% 81.0% 80,068 81,105
70% 69.4% 70,060 69,459
60% 59.8% 60,051 59,880
50% 49.3% 50,043 49,350
40% 40.7% 40,034 40,737
30% 30.4% 30,026 30,459
20% 20.1% 20,017 20,146
10% 10.1% 10,009 10,130
Active Idle   0 0
Graph of results

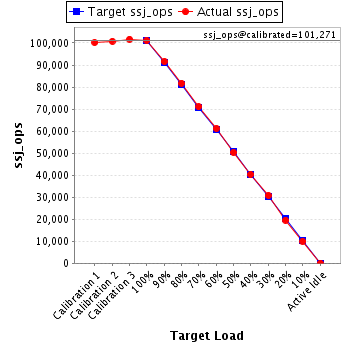

JVM 'WIN-T7TB06H8NR6.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,205
Calibration 2     100,809
Calibration 3     101,733
ssj_ops@calibrated=101,271
100% 99.9% 101,271 101,150
90% 90.4% 91,144 91,572
80% 80.8% 81,016 81,781
70% 70.2% 70,889 71,117
60% 60.4% 60,762 61,214
50% 49.7% 50,635 50,346
40% 39.8% 40,508 40,310
30% 30.4% 30,381 30,820
20% 19.3% 20,254 19,589
10% 9.9% 10,127 9,979
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,867
Calibration 2     101,182
Calibration 3     102,919
ssj_ops@calibrated=102,050
100% 99.6% 102,050 101,668
90% 90.3% 91,845 92,139
80% 81.4% 81,640 83,039
70% 70.0% 71,435 71,448
60% 59.9% 61,230 61,125
50% 50.1% 51,025 51,113
40% 40.2% 40,820 41,065
30% 30.2% 30,615 30,788
20% 19.9% 20,410 20,298
10% 9.8% 10,205 10,008
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,798
Calibration 2     100,172
Calibration 3     101,563
ssj_ops@calibrated=100,868
100% 100.4% 100,868 101,245
90% 90.8% 90,781 91,545
80% 80.9% 80,694 81,614
70% 70.9% 70,607 71,479
60% 59.5% 60,521 59,985
50% 50.0% 50,434 50,402
40% 40.7% 40,347 41,070
30% 30.1% 30,260 30,383
20% 19.9% 20,174 20,035
10% 10.0% 10,087 10,041
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,818
Calibration 2     101,152
Calibration 3     103,345
ssj_ops@calibrated=102,249
100% 100.1% 102,249 102,327
90% 90.6% 92,024 92,601
80% 81.6% 81,799 83,474
70% 70.2% 71,574 71,829
60% 59.6% 61,349 60,959
50% 49.5% 51,124 50,647
40% 40.1% 40,899 40,965
30% 30.3% 30,675 31,020
20% 19.9% 20,450 20,379
10% 10.4% 10,225 10,605
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,253
Calibration 2     99,927
Calibration 3     102,562
ssj_ops@calibrated=101,245
100% 100.8% 101,245 102,033
90% 90.6% 91,120 91,702
80% 80.6% 80,996 81,580
70% 69.7% 70,871 70,546
60% 59.8% 60,747 60,499
50% 49.9% 50,622 50,536
40% 40.2% 40,498 40,724
30% 30.6% 30,373 30,963
20% 20.1% 20,249 20,304
10% 10.1% 10,124 10,204
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,750
Calibration 2     100,351
Calibration 3     102,191
ssj_ops@calibrated=101,271
100% 100.3% 101,271 101,537
90% 90.5% 91,144 91,651
80% 81.4% 81,017 82,416
70% 69.9% 70,890 70,815
60% 59.6% 60,763 60,335
50% 49.9% 50,636 50,551
40% 40.0% 40,508 40,522
30% 30.0% 30,381 30,352
20% 19.9% 20,254 20,144
10% 9.8% 10,127 9,912
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,948
Calibration 2     100,792
Calibration 3     102,624
ssj_ops@calibrated=101,708
100% 99.3% 101,708 101,041
90% 90.7% 91,537 92,294
80% 80.6% 81,366 82,013
70% 69.5% 71,195 70,649
60% 60.5% 61,025 61,550
50% 50.8% 50,854 51,623
40% 40.7% 40,683 41,439
30% 30.5% 30,512 31,057
20% 19.9% 20,342 20,262
10% 10.1% 10,171 10,229
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,446
Calibration 2     98,455
Calibration 3     99,903
ssj_ops@calibrated=99,179
100% 99.9% 99,179 99,114
90% 90.5% 89,261 89,806
80% 82.6% 79,343 81,881
70% 69.9% 69,425 69,331
60% 60.7% 59,507 60,216
50% 49.3% 49,589 48,880
40% 40.1% 39,672 39,739
30% 30.1% 29,754 29,824
20% 20.2% 19,836 19,996
10% 10.0% 9,918 9,966
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,332
Calibration 2     100,693
Calibration 3     102,307
ssj_ops@calibrated=101,500
100% 100.4% 101,500 101,878
90% 90.2% 91,350 91,602
80% 80.4% 81,200 81,585
70% 70.4% 71,050 71,484
60% 59.1% 60,900 60,032
50% 50.8% 50,750 51,571
40% 40.3% 40,600 40,905
30% 30.3% 30,450 30,788
20% 19.9% 20,300 20,187
10% 10.4% 10,150 10,581
Active Idle   0 0
Graph of results

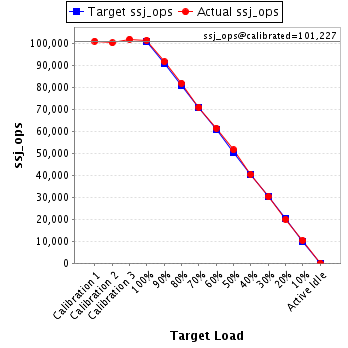

JVM 'WIN-T7TB06H8NR6.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,181
Calibration 2     100,376
Calibration 3     102,077
ssj_ops@calibrated=101,227
100% 100.4% 101,227 101,593
90% 90.7% 91,104 91,803
80% 81.1% 80,981 82,053
70% 70.2% 70,859 71,057
60% 60.8% 60,736 61,572
50% 51.0% 50,613 51,631
40% 40.0% 40,491 40,454
30% 30.0% 30,368 30,346
20% 19.7% 20,245 19,983
10% 10.3% 10,123 10,442
Active Idle   0 0
Graph of results

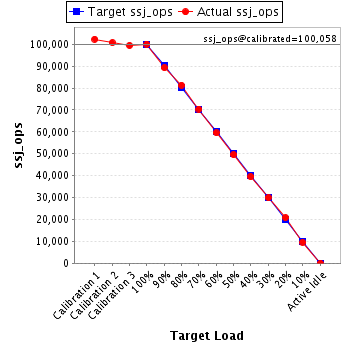

JVM 'WIN-T7TB06H8NR6.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,298
Calibration 2     100,637
Calibration 3     99,479
ssj_ops@calibrated=100,058
100% 100.0% 100,058 100,037
90% 89.2% 90,052 89,226
80% 81.3% 80,046 81,324
70% 70.4% 70,041 70,399
60% 59.5% 60,035 59,544
50% 49.5% 50,029 49,511
40% 39.5% 40,023 39,519
30% 29.9% 30,017 29,912
20% 20.8% 20,012 20,796
10% 9.6% 10,006 9,633
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,782
Calibration 2     101,567
Calibration 3     100,306
ssj_ops@calibrated=100,937
100% 100.3% 100,937 101,241
90% 89.4% 90,843 90,196
80% 81.1% 80,749 81,876
70% 70.9% 70,656 71,514
60% 60.2% 60,562 60,779
50% 50.5% 50,468 51,017
40% 39.9% 40,375 40,265
30% 30.5% 30,281 30,755
20% 19.8% 20,187 20,021
10% 10.3% 10,094 10,442
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,390
Calibration 2     101,771
Calibration 3     100,375
ssj_ops@calibrated=101,073
100% 99.6% 101,073 100,674
90% 89.0% 90,966 90,002
80% 80.9% 80,858 81,743
70% 70.0% 70,751 70,772
60% 61.0% 60,644 61,693
50% 50.1% 50,537 50,609
40% 40.7% 40,429 41,150
30% 30.0% 30,322 30,337
20% 20.0% 20,215 20,229
10% 10.2% 10,107 10,349
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,058
Calibration 2     102,195
Calibration 3     100,409
ssj_ops@calibrated=101,302
100% 99.0% 101,302 100,282
90% 89.7% 91,172 90,818
80% 80.1% 81,042 81,119
70% 70.8% 70,911 71,716
60% 59.9% 60,781 60,687
50% 49.9% 50,651 50,538
40% 40.1% 40,521 40,608
30% 30.0% 30,391 30,437
20% 20.0% 20,260 20,217
10% 9.8% 10,130 9,956
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,275
Calibration 2     101,795
Calibration 3     100,289
ssj_ops@calibrated=101,042
100% 100.0% 101,042 101,069
90% 89.7% 90,938 90,600
80% 80.5% 80,833 81,321
70% 70.3% 70,729 70,988
60% 59.6% 60,625 60,228
50% 50.6% 50,521 51,152
40% 40.2% 40,417 40,603
30% 30.0% 30,313 30,344
20% 20.6% 20,208 20,786
10% 10.0% 10,104 10,141
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,917
Calibration 2     102,809
Calibration 3     101,674
ssj_ops@calibrated=102,242
100% 99.4% 102,242 101,595
90% 88.9% 92,017 90,908
80% 80.7% 81,793 82,475
70% 70.0% 71,569 71,523
60% 59.5% 61,345 60,798
50% 50.0% 51,121 51,079
40% 39.9% 40,897 40,802
30% 30.1% 30,672 30,796
20% 20.5% 20,448 20,954
10% 9.7% 10,224 9,955
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,285
Calibration 2     102,757
Calibration 3     101,881
ssj_ops@calibrated=102,319
100% 100.6% 102,319 102,962
90% 89.8% 92,087 91,906
80% 81.0% 81,855 82,906
70% 70.0% 71,623 71,639
60% 60.1% 61,391 61,518
50% 49.2% 51,160 50,381
40% 40.0% 40,928 40,927
30% 29.7% 30,696 30,369
20% 19.5% 20,464 19,990
10% 10.1% 10,232 10,345
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,332
Calibration 2     102,953
Calibration 3     101,464
ssj_ops@calibrated=102,208
100% 100.0% 102,208 102,193
90% 89.5% 91,987 91,458
80% 81.1% 81,767 82,924
70% 70.7% 71,546 72,221
60% 60.7% 61,325 61,998
50% 50.4% 51,104 51,513
40% 39.9% 40,883 40,789
30% 30.0% 30,662 30,668
20% 19.9% 20,442 20,355
10% 9.8% 10,221 10,050
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,895
Calibration 2     102,528
Calibration 3     101,391
ssj_ops@calibrated=101,960
100% 99.5% 101,960 101,436
90% 89.3% 91,764 91,033
80% 81.2% 81,568 82,750
70% 69.2% 71,372 70,524
60% 59.3% 61,176 60,484
50% 50.7% 50,980 51,678
40% 39.4% 40,784 40,145
30% 30.4% 30,588 30,965
20% 19.9% 20,392 20,275
10% 10.3% 10,196 10,542
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,514
Calibration 2     99,138
Calibration 3     98,239
ssj_ops@calibrated=98,688
100% 100.3% 98,688 98,945
90% 89.6% 88,820 88,448
80% 80.4% 78,951 79,385
70% 70.4% 69,082 69,428
60% 59.6% 59,213 58,813
50% 49.7% 49,344 49,039
40% 39.5% 39,475 38,961
30% 30.1% 29,607 29,729
20% 20.2% 19,738 19,933
10% 9.8% 9,869 9,703
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,445
Calibration 2     101,045
Calibration 3     99,247
ssj_ops@calibrated=100,146
100% 99.7% 100,146 99,880
90% 89.4% 90,132 89,573
80% 80.7% 80,117 80,824
70% 70.6% 70,102 70,741
60% 59.8% 60,088 59,924
50% 50.7% 50,073 50,759
40% 39.6% 40,059 39,690
30% 29.3% 30,044 29,351
20% 20.2% 20,029 20,188
10% 10.2% 10,015 10,183
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,808
Calibration 2     102,135
Calibration 3     101,051
ssj_ops@calibrated=101,593
100% 100.7% 101,593 102,268
90% 89.2% 91,434 90,615
80% 80.8% 81,274 82,119
70% 70.1% 71,115 71,233
60% 60.3% 60,956 61,278
50% 49.7% 50,796 50,494
40% 39.7% 40,637 40,292
30% 29.9% 30,478 30,366
20% 20.0% 20,319 20,345
10% 9.8% 10,159 9,954
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,662
Calibration 2     103,163
Calibration 3     101,591
ssj_ops@calibrated=102,377
100% 99.9% 102,377 102,313
90% 89.4% 92,140 91,477
80% 80.7% 81,902 82,586
70% 70.8% 71,664 72,452
60% 60.1% 61,426 61,537
50% 50.3% 51,189 51,529
40% 39.7% 40,951 40,610
30% 30.1% 30,713 30,778
20% 20.0% 20,475 20,526
10% 10.1% 10,238 10,320
Active Idle   0 0

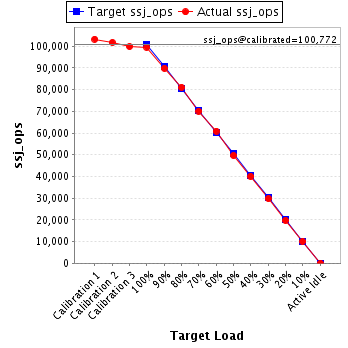

Graph of results
JVM 'WIN-T7TB06H8NR6.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,228
Calibration 2     101,706
Calibration 3     99,838
ssj_ops@calibrated=100,772
100% 98.7% 100,772 99,495
90% 89.1% 90,695 89,818
80% 80.5% 80,618 81,093
70% 69.5% 70,540 70,084
60% 60.4% 60,463 60,847
50% 49.2% 50,386 49,616
40% 39.7% 40,309 40,022
30% 29.5% 30,232 29,768
20% 19.6% 20,154 19,766
10% 10.0% 10,077 10,062
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,123
Calibration 2     100,052
Calibration 3     99,027
ssj_ops@calibrated=99,540
100% 100.0% 99,540 99,532
90% 89.8% 89,586 89,378
80% 79.9% 79,632 79,484
70% 69.9% 69,678 69,563
60% 59.6% 59,724 59,282
50% 50.2% 49,770 49,950
40% 39.5% 39,816 39,301
30% 29.8% 29,862 29,709
20% 19.9% 19,908 19,812
10% 10.1% 9,954 10,037
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,424
Calibration 2     102,788
Calibration 3     101,618
ssj_ops@calibrated=102,203
100% 99.0% 102,203 101,191
90% 88.9% 91,983 90,818
80% 81.0% 81,762 82,774
70% 69.1% 71,542 70,657
60% 59.7% 61,322 61,048
50% 50.0% 51,101 51,149
40% 40.5% 40,881 41,396
30% 30.0% 30,661 30,656
20% 19.4% 20,441 19,796
10% 9.7% 10,220 9,871
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,347
Calibration 2     102,273
Calibration 3     100,982
ssj_ops@calibrated=101,628
100% 99.9% 101,628 101,499
90% 88.9% 91,465 90,300
80% 80.9% 81,302 82,190
70% 69.9% 71,139 71,075
60% 60.3% 60,977 61,314
50% 49.2% 50,814 49,955
40% 40.0% 40,651 40,664
30% 30.7% 30,488 31,187
20% 20.1% 20,326 20,387
10% 9.7% 10,163 9,862
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,913
Calibration 2     101,319
Calibration 3     100,192
ssj_ops@calibrated=100,755
100% 99.6% 100,755 100,399
90% 89.3% 90,680 90,017
80% 80.9% 80,604 81,472
70% 69.8% 70,529 70,341
60% 61.0% 60,453 61,454
50% 49.9% 50,378 50,244
40% 39.8% 40,302 40,064
30% 29.5% 30,227 29,734
20% 19.7% 20,151 19,860
10% 10.0% 10,076 10,108
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,779
Calibration 2     100,719
Calibration 3     99,333
ssj_ops@calibrated=100,026
100% 98.5% 100,026 98,520
90% 90.4% 90,023 90,400
80% 81.2% 80,021 81,250
70% 69.2% 70,018 69,181
60% 59.9% 60,015 59,889
50% 50.3% 50,013 50,303
40% 39.4% 40,010 39,371
30% 30.0% 30,008 30,053
20% 20.2% 20,005 20,253
10% 10.4% 10,003 10,395
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,130
Calibration 2     103,759
Calibration 3     102,239
ssj_ops@calibrated=102,999
100% 100.2% 102,999 103,197
90% 88.8% 92,699 91,465
80% 80.6% 82,399 82,984
70% 70.1% 72,099 72,249
60% 60.4% 61,799 62,241
50% 49.4% 51,500 50,878
40% 40.6% 41,200 41,840
30% 30.1% 30,900 30,980
20% 20.1% 20,600 20,739
10% 9.9% 10,300 10,246
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,313
Calibration 2     101,368
Calibration 3     100,233
ssj_ops@calibrated=100,801
100% 98.8% 100,801 99,637
90% 89.4% 90,721 90,139
80% 81.1% 80,641 81,779
70% 70.0% 70,560 70,515
60% 59.5% 60,480 59,982
50% 50.6% 50,400 51,015
40% 39.4% 40,320 39,718
30% 29.6% 30,240 29,822
20% 20.5% 20,160 20,625
10% 10.0% 10,080 10,052
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,459
Calibration 2     103,853
Calibration 3     102,433
ssj_ops@calibrated=103,143
100% 98.7% 103,143 101,784
90% 89.5% 92,829 92,275
80% 81.4% 82,514 83,921
70% 67.6% 72,200 69,762
60% 59.8% 61,886 61,676
50% 49.5% 51,571 51,008
40% 39.8% 41,257 41,073
30% 30.4% 30,943 31,358
20% 19.9% 20,629 20,515
10% 10.2% 10,314 10,566
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,119
Calibration 2     101,256
Calibration 3     99,854
ssj_ops@calibrated=100,555
100% 99.8% 100,555 100,355
90% 89.1% 90,500 89,609
80% 80.5% 80,444 80,986
70% 69.5% 70,389 69,889
60% 61.3% 60,333 61,605
50% 49.9% 50,278 50,185
40% 40.0% 40,222 40,260
30% 29.8% 30,167 29,977
20% 20.1% 20,111 20,187
10% 9.9% 10,056 9,933
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,469
Calibration 2     102,736
Calibration 3     102,312
ssj_ops@calibrated=102,524
100% 100.4% 102,524 102,923
90% 89.5% 92,272 91,793
80% 80.8% 82,019 82,839
70% 69.8% 71,767 71,569
60% 60.0% 61,514 61,495
50% 49.7% 51,262 50,982
40% 40.1% 41,010 41,090
30% 29.8% 30,757 30,504
20% 19.4% 20,505 19,886
10% 9.9% 10,252 10,174
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,081
Calibration 2     101,204
Calibration 3     100,092
ssj_ops@calibrated=100,648
100% 99.9% 100,648 100,576
90% 89.4% 90,583 89,960
80% 80.3% 80,518 80,815
70% 69.6% 70,453 70,020
60% 59.4% 60,389 59,772
50% 49.6% 50,324 49,930
40% 40.0% 40,259 40,300
30% 29.9% 30,194 30,070
20% 19.4% 20,130 19,570
10% 9.9% 10,065 9,929
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,500
Calibration 2     103,079
Calibration 3     101,819
ssj_ops@calibrated=102,449
100% 99.2% 102,449 101,650
90% 88.9% 92,204 91,101
80% 80.8% 81,959 82,797
70% 69.9% 71,715 71,580
60% 59.4% 61,470 60,833
50% 51.2% 51,225 52,442
40% 40.2% 40,980 41,149
30% 30.4% 30,735 31,164
20% 20.1% 20,490 20,605
10% 9.7% 10,245 9,940
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,833
Calibration 2     102,214
Calibration 3     100,362
ssj_ops@calibrated=101,288
100% 99.2% 101,288 100,460
90% 88.8% 91,159 89,970
80% 80.6% 81,030 81,656
70% 69.7% 70,902 70,584
60% 59.5% 60,773 60,225
50% 50.4% 50,644 51,080
40% 40.1% 40,515 40,586
30% 29.7% 30,386 30,067
20% 19.7% 20,258 19,969
10% 9.8% 10,129 9,954
Active Idle   0 0
Graph of results
JVM 'WIN-T7TB06H8NR6.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,615
Calibration 2     100,200
Calibration 3     98,439
ssj_ops@calibrated=99,320
100% 100.0% 99,320 99,365
90% 89.1% 89,388 88,493
80% 80.5% 79,456 79,905
70% 69.6% 69,524 69,145
60% 59.6% 59,592 59,154
50% 50.3% 49,660 49,947
40% 40.9% 39,728 40,590
30% 29.9% 29,796 29,714
20% 19.9% 19,864 19,724
10% 9.7% 9,932 9,667
Active Idle   0 0
Graph of results
