Supermicro Inc. SYS-1029U-TR4 | SPECpower_ssj2008 = 12,265 overall ssj_ops/watt | ||||
Test Sponsor: | Supermicro Inc. | SPEC License #: | 1176 | Test Method: | Single Node |
Tested By: | Supermicro Inc. | Test Location: | Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) | Test Date: | Dec 20, 2018 |
Hardware Availability: | Apr-2019 | Software Availability: | Mar-2019 | Publication: | Apr 2, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

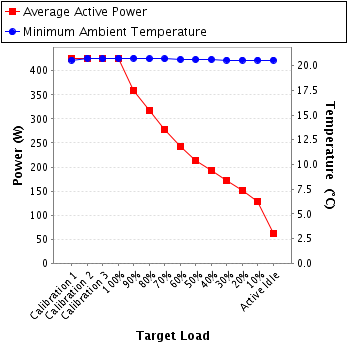

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 426 | 20.6 |
Calibration 2 | 426 | 20.8 |
Calibration 3 | 426 | 20.7 |
100% | 426 | 20.8 |
90% | 359 | 20.8 |
80% | 318 | 20.7 |
70% | 277 | 20.7 |
60% | 243 | 20.6 |
50% | 214 | 20.6 |
40% | 192 | 20.6 |
30% | 172 | 20.6 |
20% | 151 | 20.6 |
10% | 128 | 20.6 |
Active Idle | 61.8 | 20.6 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Meters and Instruments Corporation. |
Model: | WT310 |
Serial Number: | C3TA01001E |
Connectivity: | GPIB |
Input Connection: | Default |
Metrology Institute: | NML (National Measurement Laboratory) |
Accredited by: | Omnio Calibration Lab. Co., Ltd. |
Calibration Label: | OCL-2351803H15G8 |
Date of Calibration: | 16-Mar-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supply |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.10.26.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 10 mm in front of SUT main air intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 224 | 300.0 | 1.92 | 5.0 | 0.990 | 426 | 0.3% |
Calibration 2 | 224 | 300.0 | 1.92 | 5.0 | 0.990 | 426 | 0.3% |
Calibration 3 | 225 | 300.0 | 1.91 | 5.0 | 0.990 | 426 | 0.3% |
100% | 225 | 300.0 | 1.91 | 5.0 | 0.990 | 426 | 0.3% |
90% | 225 | 300.0 | 1.62 | 5.0 | 0.987 | 359 | 0.3% |
80% | 225 | 300.0 | 1.45 | 5.0 | 0.980 | 318 | 0.4% |
70% | 225 | 300.0 | 1.26 | 5.0 | 0.976 | 277 | 0.4% |
60% | 226 | 300.0 | 1.11 | 5.0 | 0.973 | 243 | 0.5% |
50% | 226 | 300.0 | 0.980 | 2.0 | 0.968 | 214 | 0.3% |
40% | 226 | 300.0 | 0.880 | 2.0 | 0.963 | 192 | 0.3% |
30% | 226 | 300.0 | 0.793 | 1.0 | 0.957 | 172 | 0.2% |
20% | 226 | 300.0 | 0.704 | 1.0 | 0.947 | 151 | 0.3% |
10% | 227 | 300.0 | 0.607 | 1.0 | 0.934 | 128 | 0.3% |
Active Idle | 227 | 300.0 | 0.325 | 1.0 | 0.839 | 61.8 | 0.4% |
