Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module ssj_ops@100% = 11,814,768
ssj_ops@100% per JVM = 1,476,846
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 10, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,863,718
Calibration 2     11,842,583
Calibration 3     11,845,511
ssj_ops@calibrated=11,844,047
100% 99.8% 11,844,047 11,814,768
90% 90.0% 10,659,642 10,659,983
80% 80.0% 9,475,238 9,477,728
70% 70.0% 8,290,833 8,288,384
60% 60.0% 7,106,428 7,101,947
50% 50.0% 5,922,024 5,922,732
40% 40.0% 4,737,619 4,739,616
30% 30.0% 3,553,214 3,553,309
20% 20.0% 2,368,809 2,369,661
10% 10.0% 1,184,405 1,181,034
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 5
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 660 Gen10 Compute Module
Form Factor: blade
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: 4.12.14-94.41-default
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 8
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I43 v2.10 (01/18/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
SY660-04.001 1,496,937
SY660-04.002 1,465,357
SY660-04.003 1,489,154
SY660-04.004 1,465,943
SY660-04.005 1,469,823
SY660-04.006 1,471,668
SY660-04.007 1,476,767
SY660-04.008 1,479,120
ssj_ops@100% 11,814,768
ssj_ops@100% per JVM 1,476,846

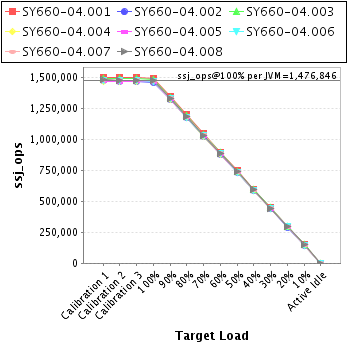

Graph of per-instance results
JVM 'SY660-04.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,504,744
Calibration 2     1,503,602
Calibration 3     1,501,563
ssj_ops@calibrated=1,502,582
100% 99.6% 1,502,582 1,496,937
90% 89.8% 1,352,324 1,350,045
80% 80.1% 1,202,066 1,204,317
70% 69.7% 1,051,808 1,047,934
60% 59.8% 901,549 898,102
50% 49.9% 751,291 750,469
40% 39.9% 601,033 599,323
30% 30.0% 450,775 451,053
20% 20.0% 300,516 300,995
10% 9.9% 150,258 148,927
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SY660-04.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,474,917
Calibration 2     1,471,131
Calibration 3     1,469,675
ssj_ops@calibrated=1,470,403
100% 99.7% 1,470,403 1,465,357
90% 90.0% 1,323,363 1,322,723
80% 79.9% 1,176,322 1,175,394
70% 70.0% 1,029,282 1,028,764
60% 59.9% 882,242 880,292
50% 50.1% 735,201 736,020
40% 40.1% 588,161 589,982
30% 30.0% 441,121 440,748
20% 19.9% 294,081 292,708
10% 10.0% 147,040 146,693
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SY660-04.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,497,286
Calibration 2     1,495,485
Calibration 3     1,492,267
ssj_ops@calibrated=1,493,876
100% 99.7% 1,493,876 1,489,154
90% 89.8% 1,344,488 1,342,112
80% 79.9% 1,195,101 1,193,041
70% 70.0% 1,045,713 1,045,273
60% 59.9% 896,326 895,383
50% 49.9% 746,938 745,820
40% 39.9% 597,550 595,339
30% 30.1% 448,163 449,482
20% 20.0% 298,775 298,746
10% 10.0% 149,388 148,950
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SY660-04.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,470,349
Calibration 2     1,468,516
Calibration 3     1,470,576
ssj_ops@calibrated=1,469,546
100% 99.8% 1,469,546 1,465,943
90% 89.9% 1,322,591 1,321,620
80% 79.9% 1,175,637 1,174,747
70% 70.0% 1,028,682 1,028,927
60% 60.0% 881,728 881,357
50% 50.1% 734,773 736,711
40% 40.0% 587,818 587,307
30% 30.0% 440,864 440,753
20% 20.1% 293,909 294,938
10% 10.0% 146,955 146,358
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SY660-04.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,472,154
Calibration 2     1,469,483
Calibration 3     1,472,675
ssj_ops@calibrated=1,471,079
100% 99.9% 1,471,079 1,469,823
90% 90.1% 1,323,971 1,324,722
80% 80.4% 1,176,863 1,182,379
70% 70.2% 1,029,755 1,032,261
60% 59.9% 882,647 880,818
50% 50.0% 735,540 735,401
40% 40.1% 588,432 590,123
30% 30.1% 441,324 442,321
20% 20.2% 294,216 297,211
10% 10.0% 147,108 147,148
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SY660-04.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,478,528
Calibration 2     1,474,718
Calibration 3     1,476,368
ssj_ops@calibrated=1,475,543
100% 99.7% 1,475,543 1,471,668
90% 90.3% 1,327,989 1,331,919
80% 79.9% 1,180,435 1,178,527
70% 70.2% 1,032,880 1,036,016
60% 60.1% 885,326 886,976
50% 50.0% 737,772 737,760
40% 40.1% 590,217 591,158
30% 30.1% 442,663 443,840
20% 19.9% 295,109 293,454
10% 10.0% 147,554 147,053
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SY660-04.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,483,026
Calibration 2     1,478,940
Calibration 3     1,480,980
ssj_ops@calibrated=1,479,960
100% 99.8% 1,479,960 1,476,767
90% 90.2% 1,331,964 1,334,494
80% 80.0% 1,183,968 1,183,973
70% 70.2% 1,035,972 1,038,678
60% 60.0% 887,976 888,674
50% 50.0% 739,980 739,925
40% 40.0% 591,984 591,247
30% 30.0% 443,988 443,914
20% 19.9% 295,992 294,982
10% 10.0% 147,996 147,546
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SY660-04.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,482,715
Calibration 2     1,480,708
Calibration 3     1,481,407
ssj_ops@calibrated=1,481,057
100% 99.9% 1,481,057 1,479,120
90% 90.0% 1,332,952 1,332,347
80% 80.0% 1,184,846 1,185,350
70% 69.6% 1,036,740 1,030,530
60% 60.1% 888,634 890,346
50% 50.0% 740,529 740,626
40% 40.2% 592,423 595,137
30% 29.8% 444,317 441,199
20% 20.0% 296,211 296,627
10% 10.0% 148,106 148,358
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
