SPECpower_ssj2008 Host 'SY660-05' Performance Report

SPECpower_ssj2008

Host 'SY660-05' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,874,320 ssj_ops@100% per JVM = 1,484,290
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 10, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,913,328
Calibration 2			11,899,421
Calibration 3			11,907,569
ssj_ops@calibrated=11,903,495
100%	99.8%	11,903,495	11,874,320
90%	89.8%	10,713,145	10,688,302
80%	80.0%	9,522,796	9,526,111
70%	70.0%	8,332,446	8,327,214
60%	60.1%	7,142,097	7,149,664
50%	50.0%	5,951,747	5,955,034
40%	40.0%	4,761,398	4,759,480
30%	30.0%	3,571,048	3,575,163
20%	20.0%	2,380,699	2,386,603
10%	10.0%	1,190,349	1,188,560
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	6
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	4.12.14-94.41-default
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: Dynamic Power Savings Mode (default)
Intel Turbo Boost Technology: Disabled
Energy Efficient Turbo: Disabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Power Savings Mode (default: Balanced Performance)
Collaborative Power Control: Disabled (default: Enabled)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

systemctl stop irqbalance.service
echo 970000 > /proc/sys/kernel/sched_rt_runtime_us
echo 40000000 > /proc/sys/kernel/sched_latency_ns
echo 15000 > /proc/sys/vm/dirty_expire_centisecs
echo 64 > /proc/sys/kernel/sched_nr_migrate

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3640 (Variant 3a) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3639 (Variant 4) is mitigated in the system as tested and documented.

Notes

None

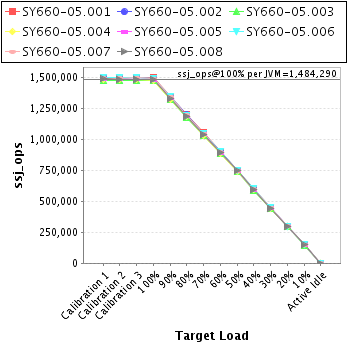

JVM Instance Summary

JVM Instance	ssj_ops@100%
SY660-05.001	1,496,248
SY660-05.002	1,492,737
SY660-05.003	1,470,643
SY660-05.004	1,475,054
SY660-05.005	1,479,937
SY660-05.006	1,492,872
SY660-05.007	1,487,426
SY660-05.008	1,479,404
ssj_ops@100%	11,874,320
ssj_ops@100% per JVM	1,484,290

JVM 'SY660-05.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,499,556
Calibration 2			1,498,867
Calibration 3			1,499,569
ssj_ops@calibrated=1,499,218
100%	99.8%	1,499,218	1,496,248
90%	89.8%	1,349,296	1,346,052
80%	80.2%	1,199,374	1,202,626
70%	70.2%	1,049,453	1,051,703
60%	60.2%	899,531	902,138
50%	50.0%	749,609	749,268
40%	40.0%	599,687	599,785
30%	29.9%	449,765	448,755
20%	20.0%	299,844	300,079
10%	9.9%	149,922	148,678
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-05.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,496,074
Calibration 2			1,492,813
Calibration 3			1,497,902
ssj_ops@calibrated=1,495,357
100%	99.8%	1,495,357	1,492,737
90%	90.1%	1,345,822	1,347,251
80%	80.2%	1,196,286	1,199,329
70%	70.0%	1,046,750	1,046,236
60%	60.0%	897,214	897,807
50%	50.0%	747,679	747,433
40%	40.0%	598,143	598,603
30%	30.1%	448,607	450,484
20%	20.1%	299,071	300,083
10%	10.0%	149,536	149,774
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-05.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,472,984
Calibration 2			1,473,193
Calibration 3			1,470,555
ssj_ops@calibrated=1,471,874
100%	99.9%	1,471,874	1,470,643
90%	89.9%	1,324,687	1,323,718
80%	79.9%	1,177,499	1,176,482
70%	70.0%	1,030,312	1,030,499
60%	60.2%	883,125	886,690
50%	50.0%	735,937	735,887
40%	40.1%	588,750	589,630
30%	30.0%	441,562	442,210
20%	20.0%	294,375	293,915
10%	10.0%	147,187	147,200
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-05.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,480,148
Calibration 2			1,478,964
Calibration 3			1,479,113
ssj_ops@calibrated=1,479,038
100%	99.7%	1,479,038	1,475,054
90%	89.5%	1,331,135	1,323,062
80%	80.1%	1,183,231	1,184,414
70%	69.9%	1,035,327	1,034,001
60%	59.9%	887,423	885,767
50%	49.9%	739,519	737,738
40%	39.9%	591,615	590,823
30%	30.0%	443,712	443,407
20%	20.1%	295,808	297,404
10%	10.0%	147,904	147,777
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-05.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,486,370
Calibration 2			1,484,840
Calibration 3			1,485,043
ssj_ops@calibrated=1,484,941
100%	99.7%	1,484,941	1,479,937
90%	89.8%	1,336,447	1,333,867
80%	80.0%	1,187,953	1,188,246
70%	69.9%	1,039,459	1,038,084
60%	60.0%	890,965	890,813
50%	50.3%	742,471	746,497
40%	39.8%	593,977	591,367
30%	30.0%	445,482	445,586
20%	20.1%	296,988	298,752
10%	10.0%	148,494	149,220
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-05.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,500,066
Calibration 2			1,495,604
Calibration 3			1,496,762
ssj_ops@calibrated=1,496,183
100%	99.8%	1,496,183	1,492,872
90%	90.0%	1,346,565	1,347,123
80%	79.8%	1,196,946	1,193,334
70%	70.0%	1,047,328	1,047,752
60%	60.2%	897,710	901,198
50%	50.0%	748,091	747,919
40%	40.2%	598,473	601,375
30%	30.1%	448,855	450,691
20%	20.0%	299,237	299,632
10%	10.0%	149,618	149,305
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-05.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,491,998
Calibration 2			1,492,623
Calibration 3			1,494,303
ssj_ops@calibrated=1,493,463
100%	99.6%	1,493,463	1,487,426
90%	89.8%	1,344,116	1,341,634
80%	80.0%	1,194,770	1,194,773
70%	69.9%	1,045,424	1,043,430
60%	59.9%	896,078	894,537
50%	49.9%	746,731	744,972
40%	39.9%	597,385	595,959
30%	30.1%	448,039	448,984
20%	20.0%	298,693	298,487
10%	9.9%	149,346	148,526
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-05.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,486,132
Calibration 2			1,482,517
Calibration 3			1,484,322
ssj_ops@calibrated=1,483,420
100%	99.7%	1,483,420	1,479,404
90%	89.4%	1,335,078	1,325,594
80%	80.0%	1,186,736	1,186,908
70%	69.8%	1,038,394	1,035,509
60%	60.0%	890,052	890,715
50%	50.2%	741,710	745,319
40%	39.9%	593,368	591,937
30%	30.0%	445,026	445,046
20%	20.1%	296,684	298,251
10%	10.0%	148,342	148,080
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
