SPECpower_ssj2008 Host 'SY660-01' Performance Report

SPECpower_ssj2008

Host 'SY660-01' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,844,553 ssj_ops@100% per JVM = 1,480,569
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 10, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,898,030
Calibration 2			11,866,794
Calibration 3			11,888,697
ssj_ops@calibrated=11,877,745
100%	99.7%	11,877,745	11,844,553
90%	89.9%	10,689,971	10,681,719
80%	80.0%	9,502,196	9,505,702
70%	70.0%	8,314,422	8,316,648
60%	60.0%	7,126,647	7,130,517
50%	50.0%	5,938,873	5,943,321
40%	40.1%	4,751,098	4,758,506
30%	30.0%	3,563,324	3,558,853
20%	20.0%	2,375,549	2,371,904
10%	10.0%	1,187,775	1,190,513
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	6
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	4.12.14-94.41-default
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: Dynamic Power Savings Mode (default)
Intel Turbo Boost Technology: Disabled
Energy Efficient Turbo: Disabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Power Savings Mode (default: Balanced Performance)
Collaborative Power Control: Disabled (default: Enabled)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

systemctl stop irqbalance.service
echo 970000 > /proc/sys/kernel/sched_rt_runtime_us
echo 40000000 > /proc/sys/kernel/sched_latency_ns
echo 15000 > /proc/sys/vm/dirty_expire_centisecs
echo 64 > /proc/sys/kernel/sched_nr_migrate

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3640 (Variant 3a) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3639 (Variant 4) is mitigated in the system as tested and documented.

Notes

None

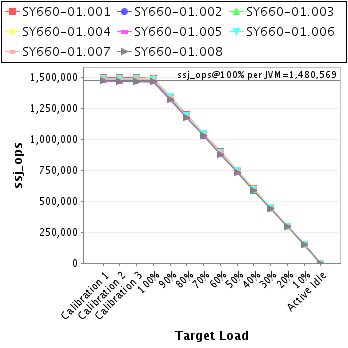

JVM Instance Summary

JVM Instance	ssj_ops@100%
SY660-01.001	1,494,895
SY660-01.002	1,476,036
SY660-01.003	1,484,957
SY660-01.004	1,490,216
SY660-01.005	1,462,672
SY660-01.006	1,486,882
SY660-01.007	1,480,768
SY660-01.008	1,468,126
ssj_ops@100%	11,844,553
ssj_ops@100% per JVM	1,480,569

JVM 'SY660-01.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,503,268
Calibration 2			1,497,890
Calibration 3			1,500,174
ssj_ops@calibrated=1,499,032
100%	99.7%	1,499,032	1,494,895
90%	89.9%	1,349,129	1,347,522
80%	80.1%	1,199,225	1,199,990
70%	69.8%	1,049,322	1,045,910
60%	60.0%	899,419	899,395
50%	50.1%	749,516	750,932
40%	40.0%	599,613	600,253
30%	29.9%	449,710	447,714
20%	20.0%	299,806	299,967
10%	10.1%	149,903	150,675
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,480,851
Calibration 2			1,477,185
Calibration 3			1,479,039
ssj_ops@calibrated=1,478,112
100%	99.9%	1,478,112	1,476,036
90%	90.0%	1,330,301	1,330,530
80%	80.0%	1,182,489	1,182,828
70%	70.0%	1,034,678	1,033,948
60%	59.9%	886,867	885,262
50%	50.0%	739,056	739,187
40%	40.0%	591,245	591,651
30%	29.8%	443,434	441,076
20%	20.0%	295,622	295,674
10%	10.1%	147,811	148,704
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,492,779
Calibration 2			1,486,515
Calibration 3			1,490,560
ssj_ops@calibrated=1,488,538
100%	99.8%	1,488,538	1,484,957
90%	90.0%	1,339,684	1,340,051
80%	80.0%	1,190,830	1,190,459
70%	70.0%	1,041,976	1,041,989
60%	60.0%	893,123	893,347
50%	50.1%	744,269	745,567
40%	40.2%	595,415	598,201
30%	30.0%	446,561	445,894
20%	19.9%	297,708	296,862
10%	10.0%	148,854	148,224
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,495,650
Calibration 2			1,491,126
Calibration 3			1,495,767
ssj_ops@calibrated=1,493,447
100%	99.8%	1,493,447	1,490,216
90%	90.0%	1,344,102	1,343,389
80%	80.1%	1,194,757	1,196,139
70%	70.0%	1,045,413	1,045,577
60%	60.2%	896,068	898,745
50%	50.1%	746,723	748,290
40%	40.3%	597,379	601,319
30%	30.0%	448,034	447,880
20%	19.9%	298,689	297,082
10%	10.1%	149,345	150,240
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,470,591
Calibration 2			1,465,970
Calibration 3			1,470,650
ssj_ops@calibrated=1,468,310
100%	99.6%	1,468,310	1,462,672
90%	89.7%	1,321,479	1,316,843
80%	80.1%	1,174,648	1,175,635
70%	70.1%	1,027,817	1,029,103
60%	60.0%	880,986	880,937
50%	49.8%	734,155	731,512
40%	40.1%	587,324	589,212
30%	30.1%	440,493	441,749
20%	20.1%	293,662	295,581
10%	10.0%	146,831	146,118
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,496,385
Calibration 2			1,494,517
Calibration 3			1,496,116
ssj_ops@calibrated=1,495,316
100%	99.4%	1,495,316	1,486,882
90%	90.0%	1,345,785	1,345,514
80%	80.1%	1,196,253	1,197,364
70%	70.2%	1,046,721	1,049,146
60%	60.1%	897,190	898,785
50%	50.1%	747,658	748,760
40%	40.0%	598,127	597,869
30%	30.0%	448,595	448,340
20%	20.0%	299,063	298,508
10%	10.1%	149,532	150,397
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,485,571
Calibration 2			1,482,095
Calibration 3			1,484,626
ssj_ops@calibrated=1,483,361
100%	99.8%	1,483,361	1,480,768
90%	89.8%	1,335,025	1,332,131
80%	79.9%	1,186,689	1,185,228
70%	69.9%	1,038,353	1,037,531
60%	60.1%	890,016	891,435
50%	50.0%	741,680	741,882
40%	39.8%	593,344	589,946
30%	30.0%	445,008	444,790
20%	19.8%	296,672	293,925
10%	10.0%	148,336	148,332
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,472,935
Calibration 2			1,471,496
Calibration 3			1,471,765
ssj_ops@calibrated=1,471,630
100%	99.8%	1,471,630	1,468,126
90%	90.1%	1,324,467	1,325,738
80%	80.1%	1,177,304	1,178,059
70%	70.2%	1,030,141	1,033,443
60%	60.0%	882,978	882,611
50%	50.1%	735,815	737,192
40%	40.1%	588,652	590,055
30%	30.0%	441,489	441,410
20%	20.0%	294,326	294,305
10%	10.0%	147,163	147,823
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
