SPECpower_ssj2008 Host 'NODE01' Performance Report

SPECpower_ssj2008

Host 'NODE01' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,465,110 ssj_ops@100% per JVM = 1,433,139
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 10, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,507,711
Calibration 2			11,489,577
Calibration 3			11,489,013
ssj_ops@calibrated=11,489,295
100%	99.8%	11,489,295	11,465,110
90%	90.0%	10,340,366	10,339,138
80%	80.0%	9,191,436	9,192,664
70%	70.0%	8,042,507	8,039,687
60%	60.0%	6,893,577	6,897,257
50%	50.0%	5,744,648	5,748,520
40%	40.0%	4,595,718	4,596,618
30%	30.0%	3,446,789	3,451,494
20%	20.1%	2,297,859	2,313,627
10%	10.0%	1,148,930	1,143,490
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	2
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019), Microsoft Windows KB4054519, and KB4056898

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: OS Control Mode
Intel Turbo Boost Technology: Enabled (default)
Energy Efficient Turbo: Enabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Balanced Power (default: Balanced Performance)
Collaborative Power Control: Enabled (default)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Windows Power Options = Power Saver
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
System Cooling = Passive
Processor power management = Minimum Processor State = 0%
Maximum Processor State = 95%
PCI Express Power Management = Maximum Power Savings

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Notes

None

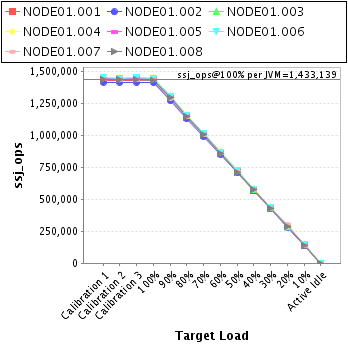

JVM Instance Summary

JVM Instance	ssj_ops@100%
NODE01.001	1,423,934
NODE01.002	1,410,267
NODE01.003	1,443,184
NODE01.004	1,447,542
NODE01.005	1,438,927
NODE01.006	1,442,460
NODE01.007	1,428,319
NODE01.008	1,430,476
ssj_ops@100%	11,465,110
ssj_ops@100% per JVM	1,433,139

JVM 'NODE01.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,428,752
Calibration 2			1,428,769
Calibration 3			1,425,098
ssj_ops@calibrated=1,426,933
100%	99.8%	1,426,933	1,423,934
90%	90.0%	1,284,240	1,283,951
80%	80.0%	1,141,547	1,141,951
70%	69.9%	998,853	998,010
60%	60.0%	856,160	856,169
50%	50.1%	713,467	714,997
40%	40.0%	570,773	570,117
30%	30.4%	428,080	434,409
20%	20.2%	285,387	288,106
10%	10.0%	142,693	142,015
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE01.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,413,208
Calibration 2			1,413,518
Calibration 3			1,414,095
ssj_ops@calibrated=1,413,807
100%	99.7%	1,413,807	1,410,267
90%	89.8%	1,272,426	1,270,281
80%	79.8%	1,131,045	1,127,934
70%	70.0%	989,665	989,898
60%	60.1%	848,284	849,007
50%	50.2%	706,903	709,079
40%	40.0%	565,523	565,591
30%	30.0%	424,142	424,536
20%	20.0%	282,761	282,295
10%	10.0%	141,381	140,773
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE01.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,448,948
Calibration 2			1,445,182
Calibration 3			1,444,055
ssj_ops@calibrated=1,444,619
100%	99.9%	1,444,619	1,443,184
90%	90.1%	1,300,157	1,301,232
80%	80.1%	1,155,695	1,156,676
70%	70.0%	1,011,233	1,011,015
60%	60.2%	866,771	870,044
50%	50.1%	722,309	723,746
40%	40.0%	577,848	577,223
30%	29.9%	433,386	432,176
20%	20.0%	288,924	289,269
10%	10.0%	144,462	144,890
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE01.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,453,184
Calibration 2			1,452,375
Calibration 3			1,449,828
ssj_ops@calibrated=1,451,101
100%	99.8%	1,451,101	1,447,542
90%	89.9%	1,305,991	1,303,934
80%	80.1%	1,160,881	1,162,284
70%	69.9%	1,015,771	1,013,987
60%	60.1%	870,661	871,509
50%	50.1%	725,551	727,152
40%	40.1%	580,441	581,282
30%	30.0%	435,330	435,456
20%	19.9%	290,220	289,158
10%	9.9%	145,110	144,161
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE01.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,441,987
Calibration 2			1,441,333
Calibration 3			1,443,238
ssj_ops@calibrated=1,442,286
100%	99.8%	1,442,286	1,438,927
90%	90.2%	1,298,057	1,300,867
80%	80.2%	1,153,828	1,157,079
70%	70.0%	1,009,600	1,010,280
60%	60.1%	865,371	866,105
50%	49.9%	721,143	719,480
40%	40.0%	576,914	577,388
30%	30.0%	432,686	431,970
20%	20.0%	288,457	287,958
10%	9.9%	144,229	142,645
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE01.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,448,810
Calibration 2			1,444,280
Calibration 3			1,448,019
ssj_ops@calibrated=1,446,150
100%	99.7%	1,446,150	1,442,460
90%	89.9%	1,301,535	1,300,258
80%	80.0%	1,156,920	1,157,198
70%	70.0%	1,012,305	1,012,928
60%	59.9%	867,690	865,526
50%	50.0%	723,075	723,787
40%	40.0%	578,460	578,778
30%	29.9%	433,845	432,857
20%	19.9%	289,230	287,489
10%	10.0%	144,615	145,050
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE01.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,437,196
Calibration 2			1,431,513
Calibration 3			1,431,943
ssj_ops@calibrated=1,431,728
100%	99.8%	1,431,728	1,428,319
90%	89.8%	1,288,555	1,285,506
80%	79.7%	1,145,382	1,141,735
70%	69.8%	1,002,209	999,655
60%	60.0%	859,037	859,587
50%	50.2%	715,864	719,354
40%	39.9%	572,691	571,905
30%	30.1%	429,518	430,509
20%	21.2%	286,346	303,137
10%	9.9%	143,173	141,910
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE01.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,435,625
Calibration 2			1,432,606
Calibration 3			1,432,738
ssj_ops@calibrated=1,432,672
100%	99.8%	1,432,672	1,430,476
90%	90.3%	1,289,405	1,293,109
80%	80.1%	1,146,138	1,147,808
70%	70.1%	1,002,870	1,003,914
60%	60.0%	859,603	859,310
50%	49.6%	716,336	710,926
40%	40.1%	573,069	574,334
30%	30.0%	429,802	429,580
20%	20.0%	286,534	286,215
10%	9.9%	143,267	142,046
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
