SPECpower_ssj2008 Host 'NODE03' Performance Report

SPECpower_ssj2008

Host 'NODE03' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,437,170 ssj_ops@100% per JVM = 1,429,646
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 10, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,470,531
Calibration 2			11,457,945
Calibration 3			11,472,604
ssj_ops@calibrated=11,465,274
100%	99.8%	11,465,274	11,437,170
90%	90.0%	10,318,747	10,320,273
80%	80.0%	9,172,220	9,172,038
70%	70.0%	8,025,692	8,023,579
60%	60.0%	6,879,165	6,877,617
50%	50.0%	5,732,637	5,730,863
40%	40.0%	4,586,110	4,587,678
30%	29.9%	3,439,582	3,433,824
20%	20.0%	2,293,055	2,293,939
10%	10.0%	1,146,527	1,144,916
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	3
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019), Microsoft Windows KB4054519, and KB4056898

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: OS Control Mode
Intel Turbo Boost Technology: Enabled (default)
Energy Efficient Turbo: Enabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Balanced Power (default: Balanced Performance)
Collaborative Power Control: Enabled (default)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Windows Power Options = Power Saver
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
System Cooling = Passive
Processor power management = Minimum Processor State = 0%
Maximum Processor State = 95%
PCI Express Power Management = Maximum Power Savings

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Notes

None

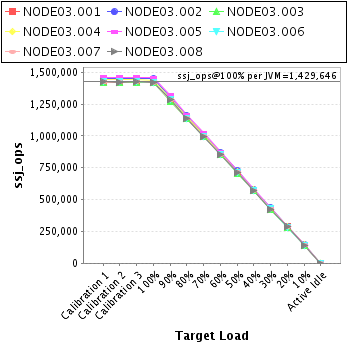

JVM Instance Summary

JVM Instance	ssj_ops@100%
NODE03.001	1,422,746
NODE03.002	1,446,460
NODE03.003	1,416,766
NODE03.004	1,437,581
NODE03.005	1,454,444
NODE03.006	1,421,345
NODE03.007	1,417,011
NODE03.008	1,420,817
ssj_ops@100%	11,437,170
ssj_ops@100% per JVM	1,429,646

JVM 'NODE03.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,427,797
Calibration 2			1,426,751
Calibration 3			1,427,723
ssj_ops@calibrated=1,427,237
100%	99.7%	1,427,237	1,422,746
90%	90.1%	1,284,513	1,286,156
80%	80.1%	1,141,789	1,143,075
70%	70.1%	999,066	1,000,010
60%	60.3%	856,342	860,657
50%	50.0%	713,618	713,317
40%	40.0%	570,895	571,107
30%	29.9%	428,171	427,423
20%	20.1%	285,447	287,318
10%	10.0%	142,724	142,443
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE03.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,447,804
Calibration 2			1,447,955
Calibration 3			1,449,128
ssj_ops@calibrated=1,448,542
100%	99.9%	1,448,542	1,446,460
90%	90.1%	1,303,687	1,304,938
80%	79.9%	1,158,833	1,157,888
70%	69.8%	1,013,979	1,011,229
60%	59.8%	869,125	866,809
50%	50.2%	724,271	726,473
40%	40.1%	579,417	580,757
30%	30.0%	434,562	435,233
20%	19.9%	289,708	288,904
10%	10.0%	144,854	145,470
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE03.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,420,298
Calibration 2			1,417,205
Calibration 3			1,421,077
ssj_ops@calibrated=1,419,141
100%	99.8%	1,419,141	1,416,766
90%	89.7%	1,277,227	1,273,306
80%	80.2%	1,135,313	1,137,500
70%	70.0%	993,399	993,810
60%	59.9%	851,485	850,301
50%	49.9%	709,570	707,587
40%	40.0%	567,656	567,660
30%	29.8%	425,742	423,428
20%	20.0%	283,828	283,166
10%	10.1%	141,914	142,895
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE03.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,443,459
Calibration 2			1,439,624
Calibration 3			1,441,772
ssj_ops@calibrated=1,440,698
100%	99.8%	1,440,698	1,437,581
90%	89.8%	1,296,628	1,293,871
80%	79.8%	1,152,559	1,149,296
70%	70.1%	1,008,489	1,010,397
60%	60.0%	864,419	863,763
50%	49.8%	720,349	717,912
40%	40.1%	576,279	577,455
30%	29.8%	432,209	429,353
20%	20.1%	288,140	289,290
10%	10.0%	144,070	143,774
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE03.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,460,577
Calibration 2			1,459,792
Calibration 3			1,460,070
ssj_ops@calibrated=1,459,931
100%	99.6%	1,459,931	1,454,444
90%	90.2%	1,313,938	1,317,531
80%	79.9%	1,167,945	1,167,122
70%	70.0%	1,021,952	1,022,546
60%	60.0%	875,959	875,405
50%	49.8%	729,966	727,276
40%	40.1%	583,972	584,743
30%	30.1%	437,979	438,968
20%	19.9%	291,986	290,785
10%	10.0%	145,993	145,925
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE03.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,425,625
Calibration 2			1,423,786
Calibration 3			1,424,947
ssj_ops@calibrated=1,424,367
100%	99.8%	1,424,367	1,421,345
90%	90.0%	1,281,930	1,282,063
80%	80.0%	1,139,493	1,138,792
70%	69.9%	997,057	996,152
60%	60.1%	854,620	855,516
50%	50.1%	712,183	713,373
40%	39.9%	569,747	568,976
30%	30.0%	427,310	427,309
20%	19.9%	284,873	284,079
10%	9.9%	142,437	141,135
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE03.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,419,921
Calibration 2			1,420,135
Calibration 3			1,424,689
ssj_ops@calibrated=1,422,412
100%	99.6%	1,422,412	1,417,011
90%	90.0%	1,280,171	1,280,427
80%	80.0%	1,137,930	1,138,608
70%	70.0%	995,689	996,220
60%	59.9%	853,447	852,529
50%	50.1%	711,206	713,116
40%	40.1%	568,965	569,723
30%	30.0%	426,724	426,306
20%	20.1%	284,482	285,509
10%	10.0%	142,241	141,621
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE03.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,425,050
Calibration 2			1,422,698
Calibration 3			1,423,196
ssj_ops@calibrated=1,422,947
100%	99.9%	1,422,947	1,420,817
90%	90.1%	1,280,652	1,281,982
80%	80.1%	1,138,358	1,139,757
70%	69.8%	996,063	993,215
60%	59.9%	853,768	852,638
50%	50.0%	711,474	711,810
40%	39.9%	569,179	567,257
30%	29.9%	426,884	425,805
20%	20.0%	284,589	284,888
10%	10.0%	142,295	141,654
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
