SPECpower_ssj2008 Host 'NODE02' Performance Report

SPECpower_ssj2008

Host 'NODE02' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,438,023 ssj_ops@100% per JVM = 1,429,753
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 10, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,482,843
Calibration 2			11,465,499
Calibration 3			11,474,448
ssj_ops@calibrated=11,469,973
100%	99.7%	11,469,973	11,438,023
90%	90.0%	10,322,976	10,317,845
80%	79.9%	9,175,979	9,167,460
70%	70.0%	8,028,981	8,029,900
60%	60.0%	6,881,984	6,885,214
50%	50.0%	5,734,987	5,739,957
40%	39.9%	4,587,989	4,581,602
30%	30.0%	3,440,992	3,441,139
20%	20.1%	2,293,995	2,301,551
10%	10.0%	1,146,997	1,145,416
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	3
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019), Microsoft Windows KB4054519, and KB4056898

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: OS Control Mode
Intel Turbo Boost Technology: Enabled (default)
Energy Efficient Turbo: Enabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Balanced Power (default: Balanced Performance)
Collaborative Power Control: Enabled (default)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Windows Power Options = Power Saver
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
System Cooling = Passive
Processor power management = Minimum Processor State = 0%
Maximum Processor State = 95%
PCI Express Power Management = Maximum Power Savings

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Notes

None

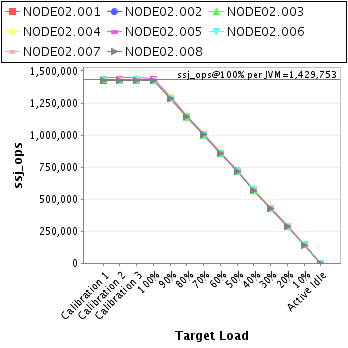

JVM Instance Summary

JVM Instance	ssj_ops@100%
NODE02.001	1,423,452
NODE02.002	1,426,354
NODE02.003	1,423,699
NODE02.004	1,446,880
NODE02.005	1,441,923
NODE02.006	1,424,492
NODE02.007	1,426,999
NODE02.008	1,424,224
ssj_ops@100%	11,438,023
ssj_ops@100% per JVM	1,429,753

JVM 'NODE02.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,426,391
Calibration 2			1,425,069
Calibration 3			1,428,016
ssj_ops@calibrated=1,426,542
100%	99.8%	1,426,542	1,423,452
90%	90.2%	1,283,888	1,286,147
80%	80.0%	1,141,234	1,141,866
70%	70.0%	998,580	998,762
60%	60.0%	855,925	856,162
50%	49.9%	713,271	712,003
40%	40.1%	570,617	571,978
30%	30.1%	427,963	428,885
20%	20.1%	285,308	286,764
10%	10.0%	142,654	142,576
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

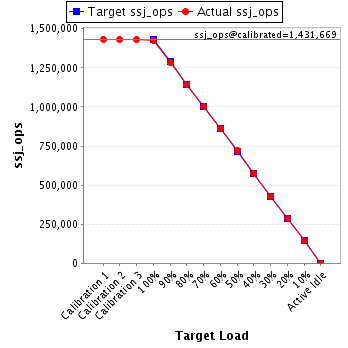

JVM 'NODE02.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,433,439
Calibration 2			1,432,297
Calibration 3			1,431,041
ssj_ops@calibrated=1,431,669
100%	99.6%	1,431,669	1,426,354
90%	89.9%	1,288,502	1,286,537
80%	80.0%	1,145,335	1,145,684
70%	70.1%	1,002,168	1,003,558
60%	60.1%	859,001	860,451
50%	50.3%	715,834	720,354
40%	40.1%	572,668	573,434
30%	30.0%	429,501	428,832
20%	20.1%	286,334	287,835
10%	10.0%	143,167	142,794
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE02.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,429,904
Calibration 2			1,427,112
Calibration 3			1,428,875
ssj_ops@calibrated=1,427,993
100%	99.7%	1,427,993	1,423,699
90%	90.0%	1,285,194	1,285,852
80%	79.8%	1,142,395	1,139,319
70%	69.9%	999,595	998,780
60%	60.0%	856,796	856,406
50%	50.1%	713,997	716,109
40%	39.8%	571,197	568,967
30%	29.9%	428,398	427,638
20%	20.0%	285,599	285,080
10%	10.0%	142,799	143,335
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE02.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,451,525
Calibration 2			1,450,630
Calibration 3			1,451,380
ssj_ops@calibrated=1,451,005
100%	99.7%	1,451,005	1,446,880
90%	89.8%	1,305,905	1,303,406
80%	79.9%	1,160,804	1,159,301
70%	69.9%	1,015,704	1,013,610
60%	60.1%	870,603	871,502
50%	50.0%	725,503	724,983
40%	40.0%	580,402	580,134
30%	30.0%	435,302	435,721
20%	20.0%	290,201	290,785
10%	10.0%	145,101	144,551
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE02.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,447,886
Calibration 2			1,445,649
Calibration 3			1,446,458
ssj_ops@calibrated=1,446,054
100%	99.7%	1,446,054	1,441,923
90%	89.9%	1,301,448	1,299,560
80%	79.8%	1,156,843	1,154,122
70%	70.0%	1,012,237	1,012,688
60%	60.0%	867,632	867,910
50%	50.1%	723,027	723,981
40%	39.8%	578,421	574,958
30%	29.9%	433,816	432,938
20%	20.1%	289,211	291,310
10%	10.0%	144,605	144,320
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE02.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,430,627
Calibration 2			1,426,967
Calibration 3			1,430,299
ssj_ops@calibrated=1,428,633
100%	99.7%	1,428,633	1,424,492
90%	90.0%	1,285,770	1,285,895
80%	79.9%	1,142,906	1,141,454
70%	70.2%	1,000,043	1,002,669
60%	60.1%	857,180	858,436
50%	50.0%	714,317	714,062
40%	40.0%	571,453	571,668
30%	30.0%	428,590	428,712
20%	20.0%	285,727	285,452
10%	10.0%	142,863	143,239
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE02.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,433,854
Calibration 2			1,429,830
Calibration 3			1,429,154
ssj_ops@calibrated=1,429,492
100%	99.8%	1,429,492	1,426,999
90%	89.8%	1,286,543	1,283,888
80%	80.0%	1,143,594	1,143,473
70%	69.8%	1,000,644	998,347
60%	59.8%	857,695	855,344
50%	49.9%	714,746	712,754
40%	40.0%	571,797	571,529
30%	30.0%	428,848	429,169
20%	20.1%	285,898	287,587
10%	10.0%	142,949	142,896
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE02.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,429,216
Calibration 2			1,427,944
Calibration 3			1,429,226
ssj_ops@calibrated=1,428,585
100%	99.7%	1,428,585	1,424,224
90%	90.1%	1,285,726	1,286,560
80%	80.0%	1,142,868	1,142,241
70%	70.1%	1,000,009	1,001,487
60%	60.1%	857,151	859,002
50%	50.1%	714,292	715,711
40%	39.8%	571,434	568,934
30%	30.0%	428,575	429,244
20%	20.1%	285,717	286,738
10%	9.9%	142,858	141,704
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
