SPECpower_ssj2008 Host 'NODE01' Performance Report

SPECpower_ssj2008

Host 'NODE01' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,537,841 ssj_ops@100% per JVM = 1,442,230
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 10, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,577,476
Calibration 2			11,562,720
Calibration 3			11,570,612
ssj_ops@calibrated=11,566,666
100%	99.8%	11,566,666	11,537,841
90%	90.0%	10,409,999	10,412,643
80%	79.9%	9,253,333	9,247,465
70%	70.0%	8,096,666	8,095,127
60%	59.9%	6,940,000	6,931,516
50%	50.0%	5,783,333	5,781,245
40%	40.0%	4,626,666	4,631,188
30%	30.0%	3,470,000	3,472,650
20%	20.0%	2,313,333	2,314,369
10%	10.0%	1,156,667	1,156,453
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	3
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019), Microsoft Windows KB4054519, and KB4056898

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: OS Control Mode
Intel Turbo Boost Technology: Enabled (default)
Energy Efficient Turbo: Enabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Balanced Power (default: Balanced Performance)
Collaborative Power Control: Enabled (default)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Windows Power Options = Power Saver
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
System Cooling = Passive
Processor power management = Minimum Processor State = 0%
Maximum Processor State = 95%
PCI Express Power Management = Maximum Power Savings

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Notes

None

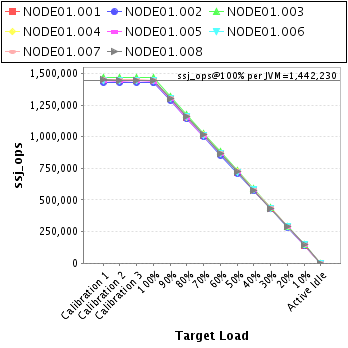

JVM Instance Summary

JVM Instance	ssj_ops@100%
NODE01.001	1,442,431
NODE01.002	1,424,070
NODE01.003	1,465,250
NODE01.004	1,442,610
NODE01.005	1,433,839
NODE01.006	1,442,243
NODE01.007	1,445,847
NODE01.008	1,441,551
ssj_ops@100%	11,537,841
ssj_ops@100% per JVM	1,442,230

JVM 'NODE01.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,447,663
Calibration 2			1,442,998
Calibration 3			1,445,042
ssj_ops@calibrated=1,444,020
100%	99.9%	1,444,020	1,442,431
90%	90.0%	1,299,618	1,300,332
80%	80.0%	1,155,216	1,155,376
70%	69.8%	1,010,814	1,007,570
60%	59.8%	866,412	863,864
50%	49.8%	722,010	719,245
40%	40.2%	577,608	580,217
30%	30.1%	433,206	433,968
20%	20.0%	288,804	288,997
10%	10.0%	144,402	144,181
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE01.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,429,308
Calibration 2			1,428,627
Calibration 3			1,428,937
ssj_ops@calibrated=1,428,782
100%	99.7%	1,428,782	1,424,070
90%	90.2%	1,285,904	1,288,792
80%	79.8%	1,143,025	1,140,444
70%	70.0%	1,000,147	1,000,681
60%	59.8%	857,269	853,890
50%	49.8%	714,391	711,333
40%	40.1%	571,513	573,474
30%	30.1%	428,635	429,541
20%	20.0%	285,756	286,117
10%	9.9%	142,878	142,143
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE01.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,469,907
Calibration 2			1,466,910
Calibration 3			1,467,867
ssj_ops@calibrated=1,467,389
100%	99.9%	1,467,389	1,465,250
90%	90.0%	1,320,650	1,320,785
80%	80.1%	1,173,911	1,175,278
70%	69.9%	1,027,172	1,026,278
60%	60.0%	880,433	880,631
50%	50.2%	733,694	736,036
40%	40.0%	586,955	587,406
30%	30.0%	440,217	440,021
20%	20.0%	293,478	294,177
10%	10.0%	146,739	146,312
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE01.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,446,536
Calibration 2			1,446,057
Calibration 3			1,447,321
ssj_ops@calibrated=1,446,689
100%	99.7%	1,446,689	1,442,610
90%	89.9%	1,302,020	1,300,524
80%	79.6%	1,157,352	1,152,006
70%	70.2%	1,012,683	1,015,063
60%	59.8%	868,014	865,186
50%	49.9%	723,345	721,931
40%	40.1%	578,676	579,531
30%	30.0%	434,007	433,649
20%	20.0%	289,338	289,070
10%	10.0%	144,669	145,282
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE01.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,441,096
Calibration 2			1,439,331
Calibration 3			1,439,961
ssj_ops@calibrated=1,439,646
100%	99.6%	1,439,646	1,433,839
90%	90.1%	1,295,682	1,297,459
80%	79.7%	1,151,717	1,147,279
70%	69.8%	1,007,752	1,004,663
60%	60.0%	863,788	863,620
50%	50.1%	719,823	721,272
40%	40.0%	575,858	575,295
30%	30.2%	431,894	434,635
20%	20.1%	287,929	289,108
10%	10.0%	143,965	143,815
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE01.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,440,564
Calibration 2			1,444,017
Calibration 3			1,445,646
ssj_ops@calibrated=1,444,831
100%	99.8%	1,444,831	1,442,243
90%	90.1%	1,300,348	1,301,110
80%	80.0%	1,155,865	1,155,818
70%	69.8%	1,011,382	1,008,930
60%	60.1%	866,899	868,342
50%	49.9%	722,416	720,845
40%	40.1%	577,933	578,798
30%	30.0%	433,449	432,885
20%	20.0%	288,966	288,643
10%	10.0%	144,483	144,520
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE01.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,453,644
Calibration 2			1,449,722
Calibration 3			1,449,758
ssj_ops@calibrated=1,449,740
100%	99.7%	1,449,740	1,445,847
90%	90.0%	1,304,766	1,304,884
80%	80.1%	1,159,792	1,161,820
70%	70.2%	1,014,818	1,017,161
60%	60.0%	869,844	870,118
50%	50.2%	724,870	728,443
40%	40.0%	579,896	579,965
30%	30.1%	434,922	436,981
20%	20.0%	289,948	289,944
10%	10.0%	144,974	145,663
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE01.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,448,758
Calibration 2			1,445,058
Calibration 3			1,446,079
ssj_ops@calibrated=1,445,568
100%	99.7%	1,445,568	1,441,551
90%	89.8%	1,301,011	1,298,758
80%	80.2%	1,156,454	1,159,444
70%	70.2%	1,011,898	1,014,781
60%	59.9%	867,341	865,864
50%	50.0%	722,784	722,140
40%	39.9%	578,227	576,502
30%	29.8%	433,670	430,970
20%	19.9%	289,114	288,313
10%	10.0%	144,557	144,537
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
