SPECpower_ssj2008 Host 'NODE06' Performance Report

SPECpower_ssj2008

Host 'NODE06' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,544,346 ssj_ops@100% per JVM = 1,443,043
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 9, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,532,601
Calibration 2			11,567,725
Calibration 3			11,575,049
ssj_ops@calibrated=11,571,387
100%	99.8%	11,571,387	11,544,346
90%	90.0%	10,414,248	10,415,906
80%	80.1%	9,257,110	9,272,236
70%	70.0%	8,099,971	8,102,030
60%	60.0%	6,942,832	6,948,342
50%	49.9%	5,785,693	5,778,256
40%	40.0%	4,628,555	4,627,562
30%	30.0%	3,471,416	3,473,447
20%	20.0%	2,314,277	2,309,465
10%	10.0%	1,157,139	1,158,369
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	6
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019), Microsoft Windows KB4054519, and KB4056898

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: OS Control Mode
Intel Turbo Boost Technology: Enabled (default)
Energy Efficient Turbo: Enabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Balanced Power (default: Balanced Performance)
Collaborative Power Control: Enabled (default)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Windows Power Options = Power Saver
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
System Cooling = Passive
Processor power management = Minimum Processor State = 0%
Maximum Processor State = 95%
PCI Express Power Management = Maximum Power Savings

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Notes

None

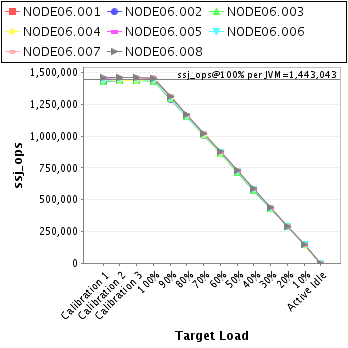

JVM Instance Summary

JVM Instance	ssj_ops@100%
NODE06.001	1,435,070
NODE06.002	1,434,415
NODE06.003	1,431,120
NODE06.004	1,436,829
NODE06.005	1,452,954
NODE06.006	1,440,219
NODE06.007	1,460,193
NODE06.008	1,453,546
ssj_ops@100%	11,544,346
ssj_ops@100% per JVM	1,443,043

JVM 'NODE06.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,434,810
Calibration 2			1,438,213
Calibration 3			1,441,066
ssj_ops@calibrated=1,439,639
100%	99.7%	1,439,639	1,435,070
90%	90.0%	1,295,675	1,295,068
80%	80.3%	1,151,711	1,156,268
70%	70.0%	1,007,747	1,008,442
60%	60.1%	863,784	865,589
50%	49.8%	719,820	716,408
40%	39.8%	575,856	573,093
30%	30.0%	431,892	432,116
20%	20.0%	287,928	287,419
10%	10.0%	143,964	143,732
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

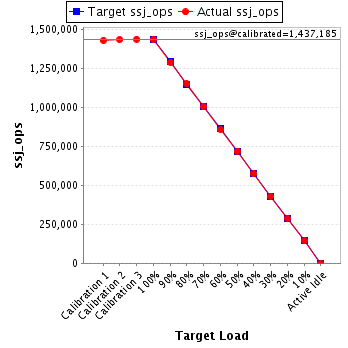

JVM 'NODE06.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,431,039
Calibration 2			1,435,830
Calibration 3			1,438,541
ssj_ops@calibrated=1,437,185
100%	99.8%	1,437,185	1,434,415
90%	89.8%	1,293,467	1,290,413
80%	80.2%	1,149,748	1,152,219
70%	69.9%	1,006,030	1,004,065
60%	59.8%	862,311	859,421
50%	50.1%	718,593	720,404
40%	40.0%	574,874	574,360
30%	30.0%	431,156	430,511
20%	20.1%	287,437	288,286
10%	10.0%	143,719	144,214
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE06.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,431,289
Calibration 2			1,435,341
Calibration 3			1,435,238
ssj_ops@calibrated=1,435,289
100%	99.7%	1,435,289	1,431,120
90%	90.2%	1,291,760	1,293,921
80%	80.2%	1,148,232	1,150,839
70%	70.3%	1,004,703	1,008,367
60%	60.0%	861,174	860,956
50%	49.8%	717,645	715,336
40%	40.1%	574,116	574,837
30%	30.0%	430,587	431,035
20%	20.0%	287,058	287,065
10%	10.0%	143,529	144,225
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE06.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,432,756
Calibration 2			1,438,126
Calibration 3			1,438,087
ssj_ops@calibrated=1,438,106
100%	99.9%	1,438,106	1,436,829
90%	90.1%	1,294,296	1,295,813
80%	80.2%	1,150,485	1,153,691
70%	70.0%	1,006,675	1,006,397
60%	60.1%	862,864	864,726
50%	49.9%	719,053	717,525
40%	40.0%	575,243	575,932
30%	30.0%	431,432	431,884
20%	20.0%	287,621	287,484
10%	10.0%	143,811	143,294
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE06.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,453,597
Calibration 2			1,457,954
Calibration 3			1,456,671
ssj_ops@calibrated=1,457,312
100%	99.7%	1,457,312	1,452,954
90%	90.0%	1,311,581	1,311,707
80%	80.2%	1,165,850	1,168,429
70%	70.1%	1,020,119	1,021,209
60%	60.1%	874,387	875,634
50%	49.9%	728,656	726,507
40%	39.8%	582,925	579,837
30%	30.0%	437,194	436,716
20%	19.8%	291,462	288,773
10%	10.0%	145,731	145,987
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE06.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,436,153
Calibration 2			1,441,583
Calibration 3			1,444,831
ssj_ops@calibrated=1,443,207
100%	99.8%	1,443,207	1,440,219
90%	90.2%	1,298,886	1,301,820
80%	80.1%	1,154,566	1,156,076
70%	70.1%	1,010,245	1,011,168
60%	60.1%	865,924	867,711
50%	49.9%	721,603	720,231
40%	40.0%	577,283	577,740
30%	29.9%	432,962	432,136
20%	19.9%	288,641	287,911
10%	10.0%	144,321	144,587
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE06.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,456,821
Calibration 2			1,462,436
Calibration 3			1,461,906
ssj_ops@calibrated=1,462,171
100%	99.9%	1,462,171	1,460,193
90%	90.1%	1,315,954	1,316,696
80%	79.7%	1,169,737	1,165,971
70%	70.0%	1,023,520	1,024,124
60%	60.0%	877,302	877,736
50%	50.1%	731,085	731,831
40%	40.1%	584,868	586,874
30%	30.1%	438,651	439,458
20%	20.0%	292,434	292,050
10%	10.0%	146,217	146,650
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE06.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,456,136
Calibration 2			1,458,244
Calibration 3			1,458,708
ssj_ops@calibrated=1,458,476
100%	99.7%	1,458,476	1,453,546
90%	89.9%	1,312,629	1,310,467
80%	80.1%	1,166,781	1,168,745
70%	69.8%	1,020,933	1,018,258
60%	60.1%	875,086	876,569
50%	50.1%	729,238	730,015
40%	40.1%	583,390	584,888
30%	30.1%	437,543	439,592
20%	19.9%	291,695	290,477
10%	10.0%	145,848	145,679
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
