SPECpower_ssj2008 Host 'NODE05' Performance Report

SPECpower_ssj2008

Host 'NODE05' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,473,104 ssj_ops@100% per JVM = 1,434,138
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 9, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,505,063
Calibration 2			11,495,496
Calibration 3			11,507,495
ssj_ops@calibrated=11,501,495
100%	99.8%	11,501,495	11,473,104
90%	89.9%	10,351,346	10,343,353
80%	80.0%	9,201,196	9,199,178
70%	69.9%	8,051,047	8,044,852
60%	60.0%	6,900,897	6,898,992
50%	50.1%	5,750,748	5,758,116
40%	40.0%	4,600,598	4,595,041
30%	30.1%	3,450,449	3,457,459
20%	20.0%	2,300,299	2,304,100
10%	10.0%	1,150,150	1,149,991
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	6
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019), Microsoft Windows KB4054519, and KB4056898

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: OS Control Mode
Intel Turbo Boost Technology: Enabled (default)
Energy Efficient Turbo: Enabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Balanced Power (default: Balanced Performance)
Collaborative Power Control: Enabled (default)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Windows Power Options = Power Saver
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
System Cooling = Passive
Processor power management = Minimum Processor State = 0%
Maximum Processor State = 95%
PCI Express Power Management = Maximum Power Savings

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Notes

None

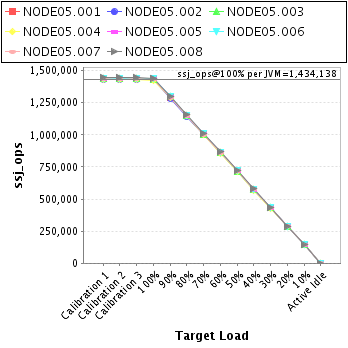

JVM Instance Summary

JVM Instance	ssj_ops@100%
NODE05.001	1,437,547
NODE05.002	1,429,453
NODE05.003	1,434,267
NODE05.004	1,426,586
NODE05.005	1,436,918
NODE05.006	1,435,236
NODE05.007	1,431,369
NODE05.008	1,441,729
ssj_ops@100%	11,473,104
ssj_ops@100% per JVM	1,434,138

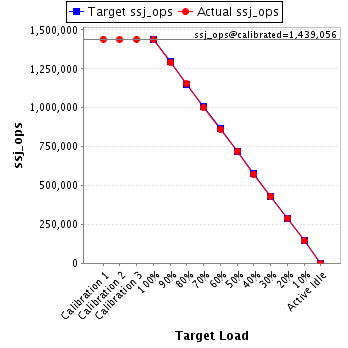

JVM 'NODE05.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,440,705
Calibration 2			1,438,904
Calibration 3			1,439,208
ssj_ops@calibrated=1,439,056
100%	99.9%	1,439,056	1,437,547
90%	89.7%	1,295,150	1,290,604
80%	80.1%	1,151,245	1,153,393
70%	69.7%	1,007,339	1,003,563
60%	59.9%	863,433	862,692
50%	50.0%	719,528	719,926
40%	39.8%	575,622	572,986
30%	30.0%	431,717	432,247
20%	20.1%	287,811	289,133
10%	10.0%	143,906	144,269
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

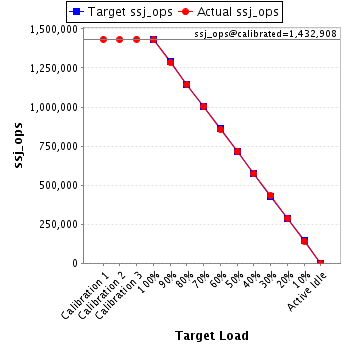

JVM 'NODE05.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,432,931
Calibration 2			1,431,447
Calibration 3			1,434,368
ssj_ops@calibrated=1,432,908
100%	99.8%	1,432,908	1,429,453
90%	89.7%	1,289,617	1,285,361
80%	79.9%	1,146,326	1,145,267
70%	70.0%	1,003,035	1,003,286
60%	59.9%	859,745	858,926
50%	50.0%	716,454	715,919
40%	39.9%	573,163	571,777
30%	30.1%	429,872	431,966
20%	20.0%	286,582	286,945
10%	9.9%	143,291	142,394
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE05.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,437,838
Calibration 2			1,437,291
Calibration 3			1,438,519
ssj_ops@calibrated=1,437,905
100%	99.7%	1,437,905	1,434,267
90%	90.1%	1,294,114	1,295,065
80%	79.8%	1,150,324	1,146,946
70%	69.9%	1,006,533	1,005,155
60%	60.2%	862,743	865,264
50%	49.9%	718,952	717,918
40%	40.0%	575,162	575,269
30%	30.2%	431,371	434,118
20%	20.0%	287,581	286,932
10%	10.1%	143,790	145,083
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE05.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,432,140
Calibration 2			1,431,239
Calibration 3			1,431,965
ssj_ops@calibrated=1,431,602
100%	99.6%	1,431,602	1,426,586
90%	90.0%	1,288,442	1,288,098
80%	80.1%	1,145,282	1,146,700
70%	70.0%	1,002,122	1,002,797
60%	60.0%	858,961	858,303
50%	50.0%	715,801	716,270
40%	39.8%	572,641	570,152
30%	30.0%	429,481	429,274
20%	20.0%	286,320	286,468
10%	10.0%	143,160	143,502
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE05.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,437,159
Calibration 2			1,436,699
Calibration 3			1,440,495
ssj_ops@calibrated=1,438,597
100%	99.9%	1,438,597	1,436,918
90%	90.1%	1,294,737	1,296,448
80%	79.9%	1,150,878	1,148,867
70%	70.0%	1,007,018	1,007,472
60%	60.0%	863,158	863,238
50%	50.2%	719,298	721,888
40%	39.9%	575,439	574,164
30%	30.1%	431,579	432,444
20%	20.1%	287,719	288,963
10%	10.0%	143,860	143,629
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE05.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,437,483
Calibration 2			1,439,003
Calibration 3			1,440,617
ssj_ops@calibrated=1,439,810
100%	99.7%	1,439,810	1,435,236
90%	90.0%	1,295,829	1,296,540
80%	80.0%	1,151,848	1,152,087
70%	70.0%	1,007,867	1,008,075
60%	60.0%	863,886	863,359
50%	50.2%	719,905	722,419
40%	40.0%	575,924	575,825
30%	30.1%	431,943	432,794
20%	20.0%	287,962	287,893
10%	10.0%	143,981	143,641
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE05.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,437,955
Calibration 2			1,433,907
Calibration 3			1,435,953
ssj_ops@calibrated=1,434,930
100%	99.8%	1,434,930	1,431,369
90%	89.9%	1,291,437	1,289,986
80%	80.0%	1,147,944	1,148,255
70%	69.8%	1,004,451	1,001,990
60%	60.0%	860,958	860,812
50%	50.2%	717,465	720,128
40%	40.1%	573,972	574,932
30%	30.0%	430,479	430,493
20%	20.1%	286,986	288,632
10%	10.0%	143,493	143,425
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE05.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,448,852
Calibration 2			1,447,005
Calibration 3			1,446,370
ssj_ops@calibrated=1,446,688
100%	99.7%	1,446,688	1,441,729
90%	89.9%	1,302,019	1,301,251
80%	80.0%	1,157,350	1,157,664
70%	70.0%	1,012,681	1,012,513
60%	59.9%	868,013	866,398
50%	50.0%	723,344	723,649
40%	40.1%	578,675	579,935
30%	30.0%	434,006	434,122
20%	20.0%	289,338	289,135
10%	10.0%	144,669	144,047
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
