SPECpower_ssj2008 Host 'NODE04' Performance Report

SPECpower_ssj2008

Host 'NODE04' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,509,232 ssj_ops@100% per JVM = 1,438,654
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 9, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,559,368
Calibration 2			11,532,395
Calibration 3			11,548,233
ssj_ops@calibrated=11,540,314
100%	99.7%	11,540,314	11,509,232
90%	90.0%	10,386,283	10,386,621
80%	80.0%	9,232,251	9,230,044
70%	70.0%	8,078,220	8,075,239
60%	60.0%	6,924,189	6,924,546
50%	50.0%	5,770,157	5,770,464
40%	40.0%	4,616,126	4,610,950
30%	30.0%	3,462,094	3,461,469
20%	20.0%	2,308,063	2,312,049
10%	10.0%	1,154,031	1,155,292
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	6
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019), Microsoft Windows KB4054519, and KB4056898

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: OS Control Mode
Intel Turbo Boost Technology: Enabled (default)
Energy Efficient Turbo: Enabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Balanced Power (default: Balanced Performance)
Collaborative Power Control: Enabled (default)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Windows Power Options = Power Saver
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
System Cooling = Passive
Processor power management = Minimum Processor State = 0%
Maximum Processor State = 95%
PCI Express Power Management = Maximum Power Savings

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Notes

None

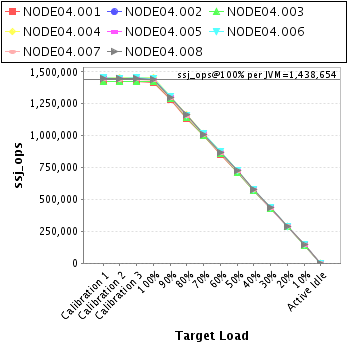

JVM Instance Summary

JVM Instance	ssj_ops@100%
NODE04.001	1,418,435
NODE04.002	1,444,078
NODE04.003	1,424,019
NODE04.004	1,453,612
NODE04.005	1,438,641
NODE04.006	1,450,437
NODE04.007	1,436,207
NODE04.008	1,443,803
ssj_ops@100%	11,509,232
ssj_ops@100% per JVM	1,438,654

JVM 'NODE04.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,425,125
Calibration 2			1,422,643
Calibration 3			1,424,760
ssj_ops@calibrated=1,423,702
100%	99.6%	1,423,702	1,418,435
90%	90.0%	1,281,331	1,281,378
80%	79.7%	1,138,961	1,135,099
70%	70.1%	996,591	997,781
60%	60.0%	854,221	853,718
50%	49.9%	711,851	709,830
40%	39.8%	569,481	567,040
30%	30.2%	427,110	429,828
20%	20.0%	284,740	285,244
10%	10.0%	142,370	141,703
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE04.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,453,716
Calibration 2			1,446,720
Calibration 3			1,448,891
ssj_ops@calibrated=1,447,805
100%	99.7%	1,447,805	1,444,078
90%	89.8%	1,303,025	1,300,029
80%	79.8%	1,158,244	1,155,091
70%	70.0%	1,013,464	1,013,583
60%	60.0%	868,683	868,314
50%	49.9%	723,903	722,830
40%	39.8%	579,122	575,568
30%	30.0%	434,342	433,887
20%	20.0%	289,561	288,974
10%	10.0%	144,781	144,571
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE04.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,426,974
Calibration 2			1,428,183
Calibration 3			1,427,209
ssj_ops@calibrated=1,427,696
100%	99.7%	1,427,696	1,424,019
90%	90.3%	1,284,926	1,289,062
80%	80.1%	1,142,157	1,143,257
70%	70.0%	999,387	998,934
60%	60.2%	856,618	859,104
50%	49.8%	713,848	711,556
40%	40.1%	571,078	572,289
30%	30.0%	428,309	427,999
20%	20.0%	285,539	286,091
10%	10.0%	142,770	142,760
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE04.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,458,656
Calibration 2			1,455,992
Calibration 3			1,457,410
ssj_ops@calibrated=1,456,701
100%	99.8%	1,456,701	1,453,612
90%	89.9%	1,311,031	1,310,088
80%	79.9%	1,165,361	1,163,452
70%	69.9%	1,019,691	1,018,200
60%	60.0%	874,021	873,741
50%	50.2%	728,350	730,790
40%	39.8%	582,680	579,779
30%	29.9%	437,010	436,163
20%	19.9%	291,340	290,480
10%	10.0%	145,670	145,615
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

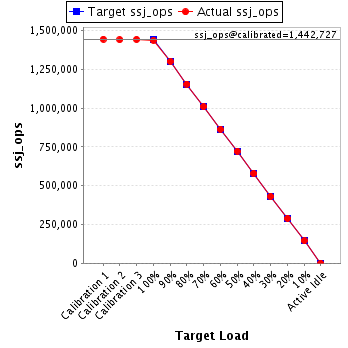

JVM 'NODE04.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,445,255
Calibration 2			1,441,834
Calibration 3			1,443,620
ssj_ops@calibrated=1,442,727
100%	99.7%	1,442,727	1,438,641
90%	90.2%	1,298,454	1,301,918
80%	80.1%	1,154,181	1,155,884
70%	70.0%	1,009,909	1,010,435
60%	60.0%	865,636	865,204
50%	50.1%	721,363	723,201
40%	40.1%	577,091	578,950
30%	29.9%	432,818	431,183
20%	20.1%	288,545	289,586
10%	10.1%	144,273	145,415
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE04.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,454,831
Calibration 2			1,451,023
Calibration 3			1,454,978
ssj_ops@calibrated=1,453,000
100%	99.8%	1,453,000	1,450,437
90%	90.1%	1,307,700	1,309,498
80%	80.0%	1,162,400	1,162,209
70%	70.2%	1,017,100	1,019,647
60%	60.0%	871,800	872,397
50%	49.9%	726,500	725,440
40%	40.0%	581,200	581,493
30%	30.0%	435,900	435,386
20%	20.0%	290,600	291,025
10%	10.0%	145,300	145,702
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

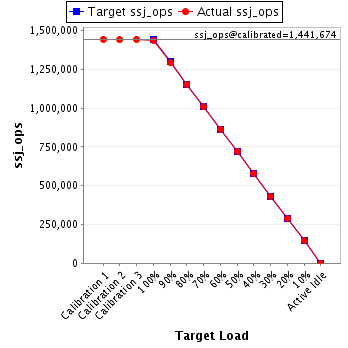

JVM 'NODE04.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,443,996
Calibration 2			1,440,239
Calibration 3			1,443,109
ssj_ops@calibrated=1,441,674
100%	99.6%	1,441,674	1,436,207
90%	89.7%	1,297,507	1,292,749
80%	79.9%	1,153,339	1,152,424
70%	70.0%	1,009,172	1,008,812
60%	59.9%	865,005	863,851
50%	50.1%	720,837	721,592
40%	39.9%	576,670	575,888
30%	29.9%	432,502	431,042
20%	20.1%	288,335	290,135
10%	10.0%	144,167	143,956
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE04.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,450,815
Calibration 2			1,445,761
Calibration 3			1,448,257
ssj_ops@calibrated=1,447,009
100%	99.8%	1,447,009	1,443,803
90%	90.0%	1,302,308	1,301,900
80%	80.3%	1,157,607	1,162,628
70%	69.7%	1,012,906	1,007,847
60%	60.0%	868,205	868,217
50%	50.1%	723,504	725,226
40%	40.1%	578,804	579,943
30%	30.1%	434,103	435,980
20%	20.1%	289,402	290,513
10%	10.1%	144,701	145,569
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
