SPECpower_ssj2008 Host 'NODE03' Performance Report

SPECpower_ssj2008

Host 'NODE03' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,464,274 ssj_ops@100% per JVM = 1,433,034
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 9, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,505,815
Calibration 2			11,487,587
Calibration 3			11,504,948
ssj_ops@calibrated=11,496,267
100%	99.7%	11,496,267	11,464,274
90%	90.0%	10,346,641	10,341,997
80%	80.0%	9,197,014	9,200,058
70%	70.1%	8,047,387	8,056,384
60%	60.0%	6,897,760	6,893,529
50%	49.9%	5,748,134	5,741,665
40%	40.0%	4,598,507	4,593,874
30%	30.0%	3,448,880	3,452,791
20%	20.0%	2,299,253	2,302,272
10%	10.0%	1,149,627	1,149,460
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	6
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019), Microsoft Windows KB4054519, and KB4056898

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: OS Control Mode
Intel Turbo Boost Technology: Enabled (default)
Energy Efficient Turbo: Enabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Balanced Power (default: Balanced Performance)
Collaborative Power Control: Enabled (default)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Windows Power Options = Power Saver
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
System Cooling = Passive
Processor power management = Minimum Processor State = 0%
Maximum Processor State = 95%
PCI Express Power Management = Maximum Power Savings

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Notes

None

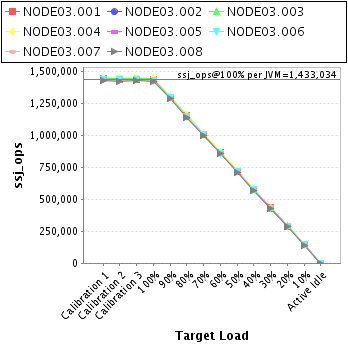

JVM Instance Summary

JVM Instance	ssj_ops@100%
NODE03.001	1,433,260
NODE03.002	1,436,652
NODE03.003	1,439,430
NODE03.004	1,449,132
NODE03.005	1,430,448
NODE03.006	1,429,237
NODE03.007	1,424,008
NODE03.008	1,422,107
ssj_ops@100%	11,464,274
ssj_ops@100% per JVM	1,433,034

JVM 'NODE03.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,440,497
Calibration 2			1,437,044
Calibration 3			1,438,513
ssj_ops@calibrated=1,437,779
100%	99.7%	1,437,779	1,433,260
90%	90.0%	1,294,001	1,293,539
80%	80.0%	1,150,223	1,150,394
70%	70.2%	1,006,445	1,009,521
60%	60.0%	862,667	863,373
50%	49.8%	718,889	716,470
40%	39.9%	575,111	573,063
30%	30.1%	431,334	432,817
20%	19.9%	287,556	286,659
10%	10.0%	143,778	144,117
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE03.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,445,742
Calibration 2			1,439,549
Calibration 3			1,441,041
ssj_ops@calibrated=1,440,295
100%	99.7%	1,440,295	1,436,652
90%	89.8%	1,296,265	1,293,024
80%	79.8%	1,152,236	1,149,068
70%	69.8%	1,008,206	1,005,517
60%	60.0%	864,177	863,510
50%	49.9%	720,147	718,234
40%	39.9%	576,118	575,333
30%	29.9%	432,088	430,751
20%	20.0%	288,059	287,384
10%	9.9%	144,029	142,917
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE03.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,441,569
Calibration 2			1,440,364
Calibration 3			1,444,683
ssj_ops@calibrated=1,442,523
100%	99.8%	1,442,523	1,439,430
90%	90.0%	1,298,271	1,298,982
80%	80.3%	1,154,019	1,158,415
70%	70.3%	1,009,766	1,014,196
60%	59.7%	865,514	861,598
50%	50.0%	721,262	721,003
40%	40.1%	577,009	579,016
30%	30.0%	432,757	433,021
20%	20.2%	288,505	291,629
10%	10.0%	144,252	144,962
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE03.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,453,496
Calibration 2			1,450,496
Calibration 3			1,452,768
ssj_ops@calibrated=1,451,632
100%	99.8%	1,451,632	1,449,132
90%	89.7%	1,306,469	1,302,836
80%	80.0%	1,161,306	1,161,123
70%	69.9%	1,016,142	1,015,252
60%	59.9%	870,979	869,867
50%	49.9%	725,816	724,125
40%	40.1%	580,653	581,533
30%	30.0%	435,490	435,743
20%	19.9%	290,326	288,698
10%	10.1%	145,163	145,913
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

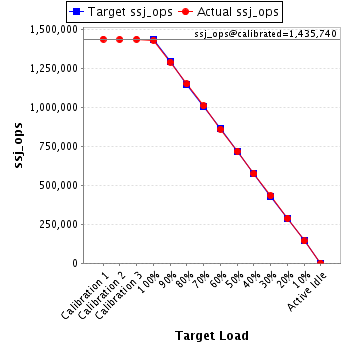

JVM 'NODE03.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,437,138
Calibration 2			1,435,235
Calibration 3			1,436,245
ssj_ops@calibrated=1,435,740
100%	99.6%	1,435,740	1,430,448
90%	89.9%	1,292,166	1,290,232
80%	80.1%	1,148,592	1,149,903
70%	70.3%	1,005,018	1,009,443
60%	59.9%	861,444	860,631
50%	50.0%	717,870	717,822
40%	39.9%	574,296	573,426
30%	30.1%	430,722	431,934
20%	20.1%	287,148	288,875
10%	10.0%	143,574	142,920
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

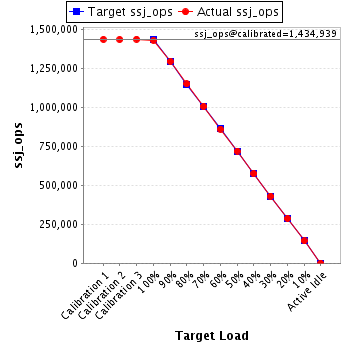

JVM 'NODE03.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,434,811
Calibration 2			1,433,759
Calibration 3			1,436,120
ssj_ops@calibrated=1,434,939
100%	99.6%	1,434,939	1,429,237
90%	90.2%	1,291,445	1,294,035
80%	80.1%	1,147,951	1,149,243
70%	70.1%	1,004,458	1,006,132
60%	60.0%	860,964	860,378
50%	50.1%	717,470	719,172
40%	40.0%	573,976	573,670
30%	30.0%	430,482	430,946
20%	20.0%	286,988	286,915
10%	10.0%	143,494	143,279
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE03.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,428,016
Calibration 2			1,427,481
Calibration 3			1,429,342
ssj_ops@calibrated=1,428,411
100%	99.7%	1,428,411	1,424,008
90%	89.9%	1,285,570	1,283,954
80%	80.0%	1,142,729	1,143,103
70%	70.0%	999,888	999,551
60%	60.1%	857,047	857,798
50%	49.9%	714,206	713,120
40%	39.9%	571,365	570,493
30%	30.0%	428,523	428,459
20%	20.1%	285,682	286,569
10%	10.0%	142,841	142,917
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE03.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,424,545
Calibration 2			1,423,659
Calibration 3			1,426,236
ssj_ops@calibrated=1,424,948
100%	99.8%	1,424,948	1,422,107
90%	90.2%	1,282,453	1,285,395
80%	79.9%	1,139,958	1,138,810
70%	70.0%	997,464	996,774
60%	60.1%	854,969	856,374
50%	49.9%	712,474	711,719
40%	39.8%	569,979	567,339
30%	30.1%	427,484	429,120
20%	20.0%	284,990	285,543
10%	10.0%	142,495	142,436
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
