SPECpower_ssj2008 Host 'NODE02' Performance Report

SPECpower_ssj2008

Host 'NODE02' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,502,528 ssj_ops@100% per JVM = 1,437,816
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 9, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,543,774
Calibration 2			11,532,117
Calibration 3			11,541,123
ssj_ops@calibrated=11,536,620
100%	99.7%	11,536,620	11,502,528
90%	89.9%	10,382,958	10,369,315
80%	79.9%	9,229,296	9,223,340
70%	70.1%	8,075,634	8,081,974
60%	60.0%	6,921,972	6,922,323
50%	50.0%	5,768,310	5,764,637
40%	39.9%	4,614,648	4,608,159
30%	30.0%	3,460,986	3,457,201
20%	20.0%	2,307,324	2,305,185
10%	10.0%	1,153,662	1,150,387
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	6
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019), Microsoft Windows KB4054519, and KB4056898

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: OS Control Mode
Intel Turbo Boost Technology: Enabled (default)
Energy Efficient Turbo: Enabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Balanced Power (default: Balanced Performance)
Collaborative Power Control: Enabled (default)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Windows Power Options = Power Saver
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
System Cooling = Passive
Processor power management = Minimum Processor State = 0%
Maximum Processor State = 95%
PCI Express Power Management = Maximum Power Savings

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Notes

None

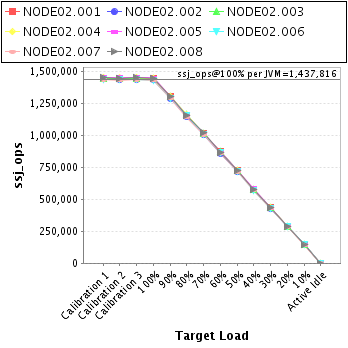

JVM Instance Summary

JVM Instance	ssj_ops@100%
NODE02.001	1,438,685
NODE02.002	1,431,579
NODE02.003	1,439,441
NODE02.004	1,445,743
NODE02.005	1,447,949
NODE02.006	1,429,148
NODE02.007	1,427,110
NODE02.008	1,442,872
ssj_ops@100%	11,502,528
ssj_ops@100% per JVM	1,437,816

JVM 'NODE02.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,441,997
Calibration 2			1,445,232
Calibration 3			1,445,900
ssj_ops@calibrated=1,445,566
100%	99.5%	1,445,566	1,438,685
90%	90.0%	1,301,009	1,300,956
80%	79.8%	1,156,453	1,153,346
70%	70.1%	1,011,896	1,013,896
60%	60.1%	867,340	868,739
50%	50.0%	722,783	722,230
40%	39.9%	578,226	576,419
30%	29.9%	433,670	432,047
20%	20.1%	289,113	290,118
10%	10.0%	144,557	144,860
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE02.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,438,597
Calibration 2			1,433,088
Calibration 3			1,436,222
ssj_ops@calibrated=1,434,655
100%	99.8%	1,434,655	1,431,579
90%	89.7%	1,291,189	1,286,730
80%	79.9%	1,147,724	1,146,444
70%	69.9%	1,004,258	1,003,018
60%	59.9%	860,793	859,793
50%	49.8%	717,327	714,713
40%	40.0%	573,862	574,274
30%	30.0%	430,396	431,040
20%	20.0%	286,931	286,823
10%	10.1%	143,465	144,222
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE02.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,445,823
Calibration 2			1,445,030
Calibration 3			1,445,343
ssj_ops@calibrated=1,445,187
100%	99.6%	1,445,187	1,439,441
90%	89.9%	1,300,668	1,298,720
80%	80.2%	1,156,149	1,158,846
70%	70.0%	1,011,631	1,011,213
60%	60.1%	867,112	868,962
50%	49.9%	722,593	721,530
40%	39.8%	578,075	575,539
30%	30.1%	433,556	434,617
20%	20.1%	289,037	290,132
10%	9.9%	144,519	143,313
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE02.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,448,138
Calibration 2			1,450,325
Calibration 3			1,447,807
ssj_ops@calibrated=1,449,066
100%	99.8%	1,449,066	1,445,743
90%	90.0%	1,304,160	1,304,562
80%	80.0%	1,159,253	1,158,702
70%	70.1%	1,014,346	1,015,226
60%	59.9%	869,440	867,648
50%	50.0%	724,533	724,852
40%	39.9%	579,627	578,463
30%	30.0%	434,720	434,303
20%	20.0%	289,813	289,405
10%	10.0%	144,907	144,687
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE02.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,452,595
Calibration 2			1,450,393
Calibration 3			1,451,167
ssj_ops@calibrated=1,450,780
100%	99.8%	1,450,780	1,447,949
90%	89.6%	1,305,702	1,300,559
80%	79.8%	1,160,624	1,157,327
70%	70.1%	1,015,546	1,016,846
60%	60.1%	870,468	871,848
50%	49.8%	725,390	722,682
40%	40.3%	580,312	584,277
30%	29.9%	435,234	433,958
20%	20.0%	290,156	289,720
10%	10.0%	145,078	145,578
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

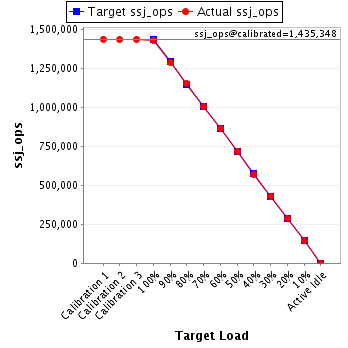

JVM 'NODE02.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,436,364
Calibration 2			1,434,598
Calibration 3			1,436,098
ssj_ops@calibrated=1,435,348
100%	99.6%	1,435,348	1,429,148
90%	89.8%	1,291,813	1,288,615
80%	80.1%	1,148,278	1,150,274
70%	69.8%	1,004,744	1,002,425
60%	60.0%	861,209	861,328
50%	50.1%	717,674	718,834
40%	39.8%	574,139	570,755
30%	30.0%	430,604	430,930
20%	19.9%	287,070	285,896
10%	9.9%	143,535	142,781
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE02.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,432,205
Calibration 2			1,428,951
Calibration 3			1,431,655
ssj_ops@calibrated=1,430,303
100%	99.8%	1,430,303	1,427,110
90%	90.0%	1,287,273	1,287,277
80%	79.8%	1,144,242	1,141,532
70%	70.1%	1,001,212	1,002,206
60%	60.1%	858,182	859,606
50%	50.0%	715,151	714,799
40%	40.0%	572,121	571,451
30%	29.9%	429,091	428,347
20%	19.9%	286,061	284,487
10%	9.9%	143,030	141,485
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE02.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,448,055
Calibration 2			1,444,498
Calibration 3			1,446,931
ssj_ops@calibrated=1,445,715
100%	99.8%	1,445,715	1,442,872
90%	90.1%	1,301,143	1,301,897
80%	80.0%	1,156,572	1,156,869
70%	70.4%	1,012,000	1,017,143
60%	59.8%	867,429	864,400
50%	50.1%	722,857	724,997
40%	39.9%	578,286	576,981
30%	29.9%	433,714	431,960
20%	20.0%	289,143	288,603
10%	9.9%	144,571	143,460
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
