SPECpower_ssj2008 Host 'DL560' Performance Report

SPECpower_ssj2008

Host 'DL560' Performance Report

Hewlett Packard Enterprise ProLiant DL560 Gen10			ssj_ops@100% = 11,994,247 ssj_ops@100% per JVM = 1,499,281
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Single Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 7, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			12,058,418
Calibration 2			12,021,621
Calibration 3			12,037,338
ssj_ops@calibrated=12,029,479
100%	99.7%	12,029,479	11,994,247
90%	90.0%	10,826,531	10,822,280
80%	80.0%	9,623,583	9,627,925
70%	70.0%	8,420,636	8,417,170
60%	60.0%	7,217,688	7,214,991
50%	50.0%	6,014,740	6,018,137
40%	39.9%	4,811,792	4,805,731
30%	30.0%	3,608,844	3,607,097
20%	20.0%	2,405,896	2,405,293
10%	10.0%	1,202,948	1,204,064
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	ProLiant DL560 Gen10
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8280 2.70GHz
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	24 x 8192 MB
Memory Details:	8 GB 2Rx8 PC4-2666V-R: slots 1, 3, 5, 8, 10, 12 populated on each socket
Power Supply Quantity and Rating (W):	2 x 800
Power Supply Details:	HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit 96% (865438-B21)
Disk Drive:	1 x HPE 240GB SATA 6G M.2 2280 SSD (875488-B21)
Disk Controller:	1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HP Ethernet 1Gb 2-port 332T Adapter
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	6 x High Performance Fans

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	4.12.14-94.41-default
Filesystem:	XFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=384 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=37 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	numactl --cpunodebind=[0-7] --localalloc
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	U34 v2.00 (02/02/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: Dynamic Power Savings Mode (default)
Intel Turbo Boost Technology: Disabled
Energy Efficient Turbo: Disabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Power Savings Mode (default: Balanced Performance)
Collaborative Power Control: Disabled (default: Enabled)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

Maximum PCI Express Speed: PCIe Generation 1.0
Embedded FlexibleLOM 1: Disabled
Embedded SATA Controller #2: Disabled

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

systemctl stop irqbalance.service
echo 970000 > /proc/sys/kernel/sched_rt_runtime_us
echo 40000000 > /proc/sys/kernel/sched_latency_ns
echo 15000 > /proc/sys/vm/dirty_expire_centisecs
echo 64 > /proc/sys/kernel/sched_nr_migrate

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3640 (Variant 3a) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3639 (Variant 4) is mitigated in the system as tested and documented.

Notes

None

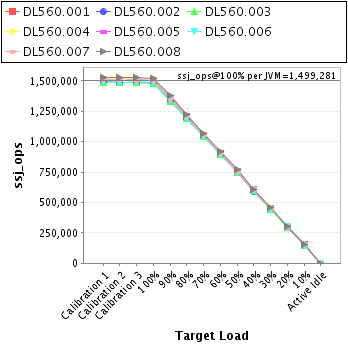

JVM Instance Summary

JVM Instance	ssj_ops@100%
DL560.001	1,501,467
DL560.002	1,482,199
DL560.003	1,481,261
DL560.004	1,518,763
DL560.005	1,502,512
DL560.006	1,485,231
DL560.007	1,500,989
DL560.008	1,521,825
ssj_ops@100%	11,994,247
ssj_ops@100% per JVM	1,499,281

JVM 'DL560.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,510,404
Calibration 2			1,502,746
Calibration 3			1,505,755
ssj_ops@calibrated=1,504,251
100%	99.8%	1,504,251	1,501,467
90%	89.9%	1,353,826	1,351,631
80%	80.1%	1,203,401	1,204,515
70%	70.0%	1,052,976	1,053,712
60%	59.9%	902,551	901,443
50%	50.0%	752,125	752,179
40%	40.1%	601,700	602,701
30%	30.0%	451,275	451,225
20%	20.0%	300,850	301,047
10%	10.0%	150,425	151,092
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'DL560.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,492,719
Calibration 2			1,485,647
Calibration 3			1,489,439
ssj_ops@calibrated=1,487,543
100%	99.6%	1,487,543	1,482,199
90%	89.8%	1,338,789	1,335,764
80%	80.2%	1,190,035	1,192,943
70%	69.9%	1,041,280	1,039,377
60%	60.0%	892,526	892,454
50%	49.9%	743,772	742,736
40%	39.8%	595,017	591,654
30%	30.1%	446,263	447,058
20%	20.0%	297,509	297,817
10%	10.0%	148,754	148,790
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'DL560.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,483,574
Calibration 2			1,485,751
Calibration 3			1,489,116
ssj_ops@calibrated=1,487,434
100%	99.6%	1,487,434	1,481,261
90%	89.7%	1,338,690	1,333,820
80%	80.1%	1,189,947	1,191,302
70%	70.3%	1,041,203	1,045,812
60%	59.9%	892,460	891,204
50%	50.3%	743,717	747,764
40%	40.0%	594,973	595,324
30%	29.9%	446,230	444,581
20%	20.0%	297,487	297,200
10%	10.0%	148,743	148,256
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'DL560.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,525,660
Calibration 2			1,522,965
Calibration 3			1,521,477
ssj_ops@calibrated=1,522,221
100%	99.8%	1,522,221	1,518,763
90%	89.9%	1,369,999	1,368,584
80%	79.6%	1,217,777	1,212,188
70%	69.8%	1,065,555	1,062,940
60%	60.0%	913,333	913,108
50%	49.8%	761,110	758,699
40%	39.9%	608,888	607,134
30%	30.1%	456,666	458,061
20%	20.0%	304,444	303,708
10%	9.9%	152,222	151,437
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'DL560.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,511,471
Calibration 2			1,504,690
Calibration 3			1,509,941
ssj_ops@calibrated=1,507,315
100%	99.7%	1,507,315	1,502,512
90%	90.2%	1,356,584	1,359,406
80%	80.4%	1,205,852	1,211,585
70%	69.8%	1,055,121	1,052,553
60%	59.9%	904,389	903,585
50%	50.0%	753,658	752,980
40%	40.1%	602,926	604,123
30%	29.9%	452,195	450,870
20%	20.0%	301,463	301,544
10%	10.0%	150,732	150,923
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'DL560.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,495,730
Calibration 2			1,488,372
Calibration 3			1,492,046
ssj_ops@calibrated=1,490,209
100%	99.7%	1,490,209	1,485,231
90%	90.2%	1,341,188	1,343,431
80%	79.9%	1,192,167	1,190,563
70%	70.1%	1,043,146	1,045,327
60%	59.8%	894,125	891,454
50%	50.1%	745,105	745,932
40%	40.0%	596,084	596,047
30%	29.8%	447,063	444,543
20%	20.0%	298,042	298,525
10%	10.1%	149,021	149,855
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

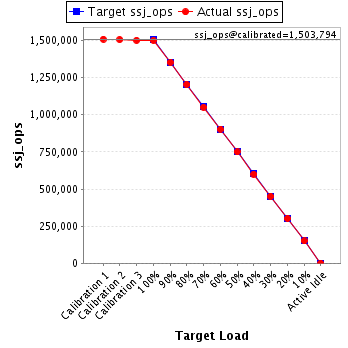

JVM 'DL560.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,509,036
Calibration 2			1,505,551
Calibration 3			1,502,037
ssj_ops@calibrated=1,503,794
100%	99.8%	1,503,794	1,500,989
90%	90.0%	1,353,415	1,353,816
80%	80.0%	1,203,035	1,203,782
70%	69.9%	1,052,656	1,051,266
60%	60.1%	902,276	903,908
50%	49.8%	751,897	749,436
40%	39.9%	601,518	600,455
30%	30.0%	451,138	451,069
20%	20.1%	300,759	301,528
10%	10.0%	150,379	150,124
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'DL560.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,529,823
Calibration 2			1,525,898
Calibration 3			1,527,526
ssj_ops@calibrated=1,526,712
100%	99.7%	1,526,712	1,521,825
90%	90.1%	1,374,041	1,375,830
80%	80.0%	1,221,370	1,221,047
70%	69.8%	1,068,698	1,066,181
60%	60.1%	916,027	917,835
50%	50.3%	763,356	768,411
40%	39.8%	610,685	608,294
30%	30.1%	458,014	459,690
20%	19.9%	305,342	303,924
10%	10.1%	152,671	153,588
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
