SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2019 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL560 Gen10 | SPECpower_ssj2008 = 12,045 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Mar 7, 2019 |
| Hardware Availability: | Apr-2019 | Software Availability: | Mar-2019 | Publication: | Apr 2, 2019 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

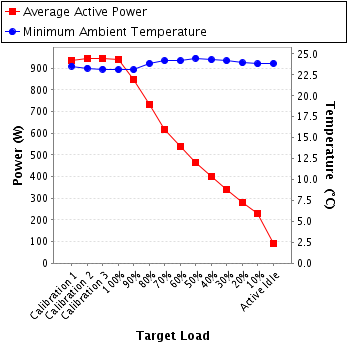

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 938 | 23.6 |
| Calibration 2 | 946 | 23.3 |
| Calibration 3 | 946 | 23.2 |
| 100% | 942 | 23.1 |
| 90% | 849 | 23.1 |
| 80% | 733 | 23.9 |
| 70% | 619 | 24.2 |
| 60% | 538 | 24.2 |
| 50% | 467 | 24.5 |
| 40% | 401 | 24.3 |
| 30% | 340 | 24.2 |
| 20% | 281 | 23.9 |
| 10% | 229 | 23.8 |
| Active Idle | 90.1 | 23.9 |

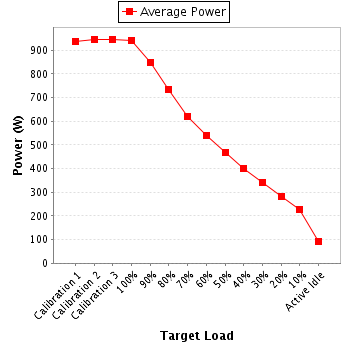

| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT310E |
| Serial Number: | C2QM2201V |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 1-EM8E7-40-1 |
| Date of Calibration: | 16-Jul-2018 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | SUT Power Supply 1 and 2 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 216 | 300.0 | 4.50 | 5.0 | 0.967 | 938 | 0.3% |
| Calibration 2 | 215 | 300.0 | 4.55 | 5.0 | 0.967 | 946 | 0.3% |
| Calibration 3 | 215 | 300.0 | 4.55 | 5.0 | 0.967 | 946 | 0.3% |
| 100% | 215 | 300.0 | 4.53 | 5.0 | 0.967 | 942 | 0.3% |
| 90% | 215 | 300.0 | 4.11 | 5.0 | 0.960 | 849 | 0.3% |
| 80% | 215 | 300.0 | 3.59 | 5.0 | 0.948 | 733 | 0.4% |
| 70% | 215 | 300.0 | 3.09 | 5.0 | 0.930 | 619 | 0.4% |
| 60% | 215 | 300.0 | 2.74 | 5.0 | 0.912 | 538 | 0.4% |
| 50% | 215 | 300.0 | 2.43 | 5.0 | 0.891 | 467 | 0.5% |
| 40% | 215 | 300.0 | 2.16 | 5.0 | 0.861 | 401 | 0.5% |
| 30% | 215 | 300.0 | 1.92 | 5.0 | 0.821 | 340 | 0.6% |
| 20% | 216 | 300.0 | 1.71 | 2.0 | 0.765 | 281 | 0.4% |
| 10% | 216 | 300.0 | 1.53 | 2.0 | 0.695 | 229 | 0.5% |
| Active Idle | 216 | 300.0 | 1.18 | 2.0 | 0.354 | 90.1 | 0.9% |
