SPECpower_ssj2008 Host 'WIN-QGNDKBV7U0I' Performance Report

SPECpower_ssj2008

Host 'WIN-QGNDKBV7U0I' Performance Report

Hewlett Packard Enterprise ProLiant DL560 Gen10			ssj_ops@100% = 11,637,630 ssj_ops@100% per JVM = 1,454,704
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Single Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 10, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,681,571
Calibration 2			11,667,263
Calibration 3			11,674,986
ssj_ops@calibrated=11,671,125
100%	99.7%	11,671,125	11,637,630
90%	90.0%	10,504,012	10,503,860
80%	80.0%	9,336,900	9,337,966
70%	70.0%	8,169,787	8,165,330
60%	60.0%	7,002,675	7,007,274
50%	50.0%	5,835,562	5,836,474
40%	39.9%	4,668,450	4,660,634
30%	30.0%	3,501,337	3,498,224
20%	20.0%	2,334,225	2,331,480
10%	10.0%	1,167,112	1,166,866
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	ProLiant DL560 Gen10
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	24 x 8192 MB
Memory Details:	8 GB 2Rx8 PC4-2666V-R: slots 1, 3, 5, 8, 10, 12 populated on each socket
Power Supply Quantity and Rating (W):	2 x 800
Power Supply Details:	HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit 96% (865438-B21)
Disk Drive:	1 x HPE 240GB SATA 6G M.2 2280 SSD (875488-B21)
Disk Controller:	1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HP Ethernet 1Gb 2-port 332T Adapter
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=384 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=37 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2000 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	U34 v2.00 (02/02/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019), Microsoft Windows KB4054519, and KB4056898

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: OS Control Mode
Intel Turbo Boost Technology: Enabled (default)
Energy Efficient Turbo: Enabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Balanced Power (default: Balanced Performance)
Collaborative Power Control: Enabled (default)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

Maximum PCI Express Speed: PCIe Generation 1.0
Embedded FlexibleLOM 1: Disabled
Embedded SATA Controller #2: Disabled

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Windows Power Options = Power Saver
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
System Cooling = Passive
Processor power management = Minimum Processor State = 0%
Maximum Processor State = 95%
PCI Express Power Management = Maximum Power Savings

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Notes

None

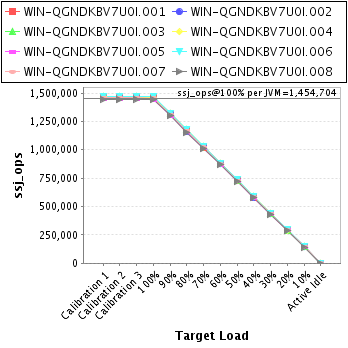

JVM Instance Summary

JVM Instance	ssj_ops@100%
WIN-QGNDKBV7U0I.001	1,456,428
WIN-QGNDKBV7U0I.002	1,454,550
WIN-QGNDKBV7U0I.003	1,464,516
WIN-QGNDKBV7U0I.004	1,457,879
WIN-QGNDKBV7U0I.005	1,442,029
WIN-QGNDKBV7U0I.006	1,466,682
WIN-QGNDKBV7U0I.007	1,454,669
WIN-QGNDKBV7U0I.008	1,440,876
ssj_ops@100%	11,637,630
ssj_ops@100% per JVM	1,454,704

JVM 'WIN-QGNDKBV7U0I.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,466,773
Calibration 2			1,463,683
Calibration 3			1,463,317
ssj_ops@calibrated=1,463,500
100%	99.5%	1,463,500	1,456,428
90%	90.0%	1,317,150	1,317,236
80%	79.8%	1,170,800	1,168,105
70%	70.0%	1,024,450	1,023,914
60%	59.9%	878,100	876,919
50%	50.0%	731,750	732,006
40%	39.8%	585,400	582,879
30%	30.1%	439,050	440,281
20%	20.0%	292,700	292,681
10%	10.0%	146,350	146,980
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-QGNDKBV7U0I.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,459,281
Calibration 2			1,459,306
Calibration 3			1,459,728
ssj_ops@calibrated=1,459,517
100%	99.7%	1,459,517	1,454,550
90%	90.1%	1,313,565	1,315,703
80%	79.8%	1,167,614	1,164,743
70%	70.2%	1,021,662	1,024,858
60%	60.3%	875,710	880,513
50%	50.0%	729,759	730,445
40%	39.7%	583,807	579,438
30%	30.1%	437,855	438,618
20%	20.0%	291,903	291,793
10%	10.0%	145,952	145,271
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-QGNDKBV7U0I.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,468,284
Calibration 2			1,467,969
Calibration 3			1,468,663
ssj_ops@calibrated=1,468,316
100%	99.7%	1,468,316	1,464,516
90%	90.2%	1,321,485	1,323,837
80%	80.1%	1,174,653	1,175,495
70%	69.9%	1,027,822	1,025,859
60%	59.8%	880,990	877,987
50%	49.9%	734,158	733,136
40%	40.0%	587,327	587,393
30%	29.9%	440,495	439,384
20%	19.9%	293,663	292,565
10%	10.1%	146,832	147,709
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-QGNDKBV7U0I.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,465,122
Calibration 2			1,460,404
Calibration 3			1,461,718
ssj_ops@calibrated=1,461,061
100%	99.8%	1,461,061	1,457,879
90%	90.0%	1,314,955	1,315,070
80%	80.1%	1,168,849	1,170,797
70%	69.9%	1,022,743	1,021,302
60%	60.2%	876,637	879,352
50%	50.1%	730,530	731,284
40%	40.0%	584,424	584,573
30%	29.8%	438,318	435,192
20%	19.9%	292,212	291,316
10%	10.1%	146,106	146,978
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-QGNDKBV7U0I.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,445,746
Calibration 2			1,444,941
Calibration 3			1,445,785
ssj_ops@calibrated=1,445,363
100%	99.8%	1,445,363	1,442,029
90%	90.0%	1,300,826	1,300,648
80%	80.1%	1,156,290	1,158,139
70%	70.0%	1,011,754	1,011,225
60%	60.0%	867,218	867,705
50%	50.0%	722,681	722,942
40%	39.8%	578,145	575,958
30%	30.0%	433,609	433,742
20%	20.1%	289,073	289,832
10%	10.0%	144,536	144,642
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-QGNDKBV7U0I.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,471,954
Calibration 2			1,470,442
Calibration 3			1,470,554
ssj_ops@calibrated=1,470,498
100%	99.7%	1,470,498	1,466,682
90%	90.0%	1,323,448	1,323,503
80%	80.0%	1,176,399	1,177,069
70%	70.0%	1,029,349	1,028,719
60%	59.9%	882,299	880,111
50%	50.1%	735,249	736,240
40%	40.1%	588,199	589,181
30%	30.0%	441,149	441,155
20%	20.0%	294,100	293,876
10%	10.0%	147,050	146,656
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-QGNDKBV7U0I.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,459,566
Calibration 2			1,458,238
Calibration 3			1,458,329
ssj_ops@calibrated=1,458,284
100%	99.8%	1,458,284	1,454,669
90%	89.7%	1,312,455	1,308,473
80%	80.1%	1,166,627	1,168,791
70%	70.0%	1,020,799	1,020,343
60%	59.9%	874,970	873,884
50%	49.8%	729,142	726,870
40%	39.9%	583,313	581,295
30%	30.0%	437,485	436,828
20%	19.9%	291,657	290,551
10%	10.0%	145,828	145,461
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-QGNDKBV7U0I.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,444,844
Calibration 2			1,442,280
Calibration 3			1,446,892
ssj_ops@calibrated=1,444,586
100%	99.7%	1,444,586	1,440,876
90%	89.9%	1,300,127	1,299,390
80%	79.9%	1,155,669	1,154,827
70%	69.9%	1,011,210	1,009,110
60%	60.3%	866,751	870,802
50%	50.1%	722,293	723,551
40%	40.1%	577,834	579,917
30%	30.0%	433,376	433,024
20%	20.0%	288,917	288,866
10%	9.9%	144,459	143,168
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
