SPECpower_ssj2008

Dell Inc. PowerEdge R7425 (AMD EPYC 7601 2.20 GHz)			SPECpower_ssj2008 = 11,867 overall ssj_ops/watt
Test Sponsor:	Dell Inc.	SPEC License #:	55	Test Method:	Single Node
Tested By:	Dell Inc.	Test Location:	Round Rock, TX, USA	Test Date:	Feb 6, 2019
Hardware Availability:	Dec-2018	Software Availability:	Apr-2015	Publication:	Feb 27, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Dell Inc.
Model:	PowerEdge R7425 (AMD EPYC 7601 2.20 GHz)
Form Factor:	2U
CPU Name:	AMD EPYC 7601 2.20 GHz, Dell SKU [338-BNCG]
CPU Characteristics:	32 core, 2.20 GHz, 64 MB L3 Cache
CPU Frequency (MHz):	2200
CPU(s) Enabled:	64 cores, 2 chips, 32 cores/chip
Hardware Threads:	128 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	64 MB I+D on chip per chip, 8 MB shared / 4 cores
Other Cache:	None
Memory Amount (GB):	128
# and size of DIMM:	16 x 8 GB
Memory Details:	8GB 1Rx8 PC4-2666V; Dell SKU [370-ADNI], Slots A1-8,B1-8 populated.
Power Supply Quantity and Rating (W):	1 x 750
Power Supply Details:	Dell SKU [450-ADWR]
Disk Drive:	1 x 240 GB SATA SSD, Dell SKU [400-AWHF]
Disk Controller:	PERC H330 RAID Controller, Dell SKU [405-AANS]
# and type of Network Interface Cards (NICs) Installed:	1 x quad-port Broadcom 5720, Dell SKU [540-BBBW]
NICs Enabled in Firmware / OS / Connected:	4/4/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	AMD Naples Balanced V3 (see SUT notes)
Operating System (OS):	Microsoft Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3.9600.18969
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80-b15
JVM Command-line Options:	-XX:InlineSmallCode=800 -XX:FreqInlineSize=2000 -XX:+UseLargePages -XX:+UseBiasedLocking -XX:ParallelGCThreads=1 -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+UseAdaptiveSizePolicy -Xmx1024m -Xms1024m -Xmn900m
JVM Affinity:	start /NODE [0,1,2,3,4,5,6,7] /AFFINITY [0x1,0x4,0x10,0x40,0x100,0x400,0x1000,0x4000]
JVM Instances:	64
JVM Initial Heap (MB):	1024
JVM Maximum Heap (MB):	1024
JVM Address Bits:	64
Boot Firmware Version:	1.6.7
Management Firmware Version:	3.21.25.22
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows KB4480969 (see SUT notes)

none

Each JVM instance was bound to 1 logical processors
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Run initiated via Windows Remote Desktop Connection
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version
Power Plan Minimum processor state set to 0%
Power Plan Maximum processor state set to 100%
Applied protection against speculative execution as explained in https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Last Updated: Nov 14, 2018)
NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
AMD processor additional mitigation for CVE-2017-5715 (Spectre Variant 2) enabled by issuing the following registry key changes:

reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management /v FeatureSettingsOverride /t REG_DWORD /d 64 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f
reg add "HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Virtualization" /v MinVmVersionForCpuBasedMitigations /t REG_SZ /d "1.0" /f

AMD Naples Balanced V3 OS power plan consists of the following six powercfg commands:

Software
Operating System (OS):	Microsoft Windows Server 2008 R2 Enterprise Edition Service Pack 1
JVM Vendor:	Oracle Corporation
JVM Version:	Hotspot(TM) Client VM, version 1.8.0_121
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation
Model:	WT210
Serial Number:	91KA21979
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	NIST
Accredited by:	TesCom
Calibration Label:	66762
Date of Calibration:	27-Feb-2018
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	Connected to power supply

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	5.10.26.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	25 mm in front of SUT main airflow intake

None

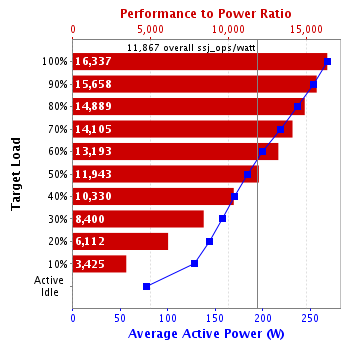

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	268	20.9
90%	253	20.9
80%	237	20.9
70%	218	20.9
60%	200	20.9
50%	184	20.9
40%	170	20.8
30%	157	20.8
20%	144	20.8
10%	128	20.8
Active Idle	77.5	20.7

Line Standard	Minimum Temperature (°C)	Elevation (m)
208V / 60 Hz / 1 phase / 2 wires	20.7	255

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
