Fujitsu FUJITSU Server PRIMERGY RX1330 M4 SPECpower_ssj2008 = 8,924 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Nov 23, 2018
Hardware Availability: Nov-2018 Software Availability: Sep-2018 Publication: Dec 6, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 73.9 23.7
Calibration 2 74.5 23.7
Calibration 3 74.6 23.6
100% 73.9 23.7
90% 62.1 23.8
80% 51.6 23.7
70% 43.3 23.7
60% 36.8 23.7
50% 31.2 23.6
40% 26.9 23.6
30% 23.5 23.6
20% 20.5 23.6
10% 17.9 23.6
Active Idle 12.8 23.6

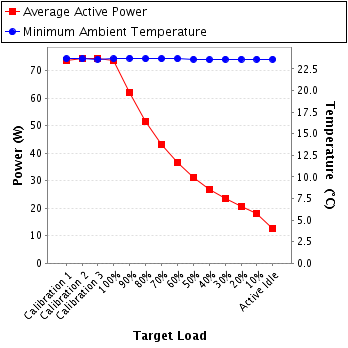

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Hioki
Model: Hioki3336
Serial Number: 170121768
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NICT (National Institute of Information and Communications Technology)
Accredited by: HIOKI E.E. CORPORATION
Calibration Label: H06400086-1801
Date of Calibration: 31-Jan-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
  • None
    • Power Details for Device pwr1
    Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
    Avg Range Avg Range
    Calibration 1 207 300.0 0.397 1.0 0.902 73.9 0.4%
    Calibration 2 206 300.0 0.400 1.0 0.904 74.5 0.3%
    Calibration 3 206 300.0 0.401 1.0 0.905 74.6 0.3%
    100% 206 300.0 0.398 1.0 0.903 73.9 0.4%
    90% 206 300.0 0.346 1.0 0.871 62.1 0.4%
    80% 206 300.0 0.301 1.0 0.831 51.6 0.5%
    70% 207 300.0 0.266 1.0 0.787 43.3 0.5%
    60% 205 300.0 0.241 1.0 0.744 36.8 0.6%
    50% 206 300.0 0.219 1.0 0.691 31.2 0.7%
    40% 206 300.0 0.204 1.0 0.639 26.9 0.8%
    30% 207 300.0 0.192 0.5 0.589 23.5 0.6%
    20% 207 300.0 0.182 0.5 0.545 20.5 0.6%
    10% 207 300.0 0.172 0.5 0.502 17.9 0.7%
    Active Idle 207 300.0 0.152 0.5 0.408 12.8 0.9%

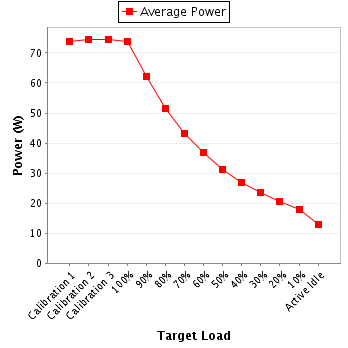

    Power details for pwr1
