SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2018 Standard Performance Evaluation Corporation
| Lenovo Global Technology ThinkSystem SD530 | SPECpower_ssj2008 = 11,756 overall ssj_ops/watt | ||||
| Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Multi Node |
| Tested By: | Lenovo Global Technology | Test Location: | Taipei, Taiwan | Test Date: | Aug 24, 2018 |
| Hardware Availability: | Jul-2018 | Software Availability: | Jan-2018 | Publication: | Sep 12, 2018 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

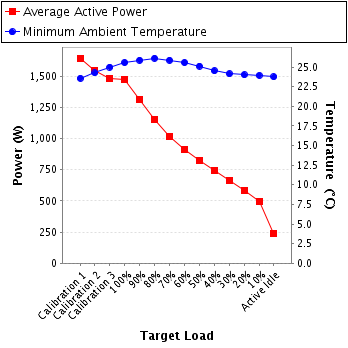

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,645 | 23.6 |
| Calibration 2 | 1,543 | 24.2 |
| Calibration 3 | 1,480 | 25.0 |
| 100% | 1,474 | 25.6 |
| 90% | 1,313 | 25.9 |
| 80% | 1,150 | 26.1 |
| 70% | 1,016 | 25.9 |
| 60% | 911 | 25.6 |
| 50% | 822 | 25.1 |
| 40% | 740 | 24.5 |
| 30% | 663 | 24.1 |
| 20% | 583 | 24.0 |
| 10% | 498 | 23.9 |
| Active Idle | 241 | 23.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT210 |
| Serial Number: | 91JB14536 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | ETC, Taiwan |
| Accredited by: | NML/ROC |
| Calibration Label: | 18-07-BAC-375-03 |
| Date of Calibration: | 23-Jul-2018 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | Connected to PSU 1,PSU 2 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 207 | 300.0 | 7.95 | 10.0 | 0.998 | 1,645 | 0.3% |
| Calibration 2 | 208 | 300.0 | 7.45 | 10.0 | 0.998 | 1,543 | 0.4% |
| Calibration 3 | 208 | 300.0 | 7.14 | 10.0 | 0.997 | 1,480 | 0.4% |
| 100% | 208 | 300.0 | 7.12 | 10.0 | 0.997 | 1,474 | 0.4% |
| 90% | 208 | 300.0 | 6.33 | 10.0 | 0.996 | 1,313 | 0.4% |
| 80% | 209 | 300.0 | 5.53 | 5.0 | 0.996 | 1,150 | 0.4% |
| 70% | 209 | 300.0 | 4.88 | 5.0 | 0.995 | 1,016 | 0.3% |
| 60% | 209 | 300.0 | 4.38 | 5.0 | 0.995 | 911 | 0.3% |
| 50% | 209 | 300.0 | 3.95 | 5.0 | 0.994 | 822 | 0.4% |
| 40% | 210 | 300.0 | 3.55 | 5.0 | 0.995 | 740 | 0.4% |
| 30% | 210 | 300.0 | 3.18 | 5.0 | 0.994 | 663 | 0.4% |
| 20% | 210 | 300.0 | 2.80 | 5.0 | 0.993 | 583 | 0.4% |
| 10% | 210 | 300.0 | 2.39 | 2.0 | 0.991 | 498 | 0.4% |
| Active Idle | 211 | 300.0 | 1.19 | 2.0 | 0.958 | 241 | 0.5% |
