SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2018 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant ML350 Gen10 | SPECpower_ssj2008 = 10,916 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Aug 28, 2018 |
| Hardware Availability: | Jun-2018 | Software Availability: | Jul-2018 | Publication: | Sep 12, 2018 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

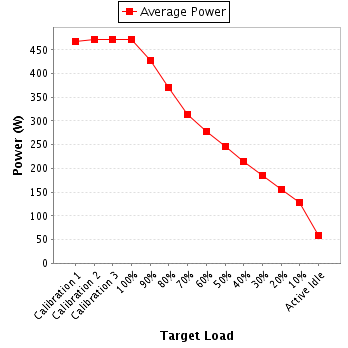

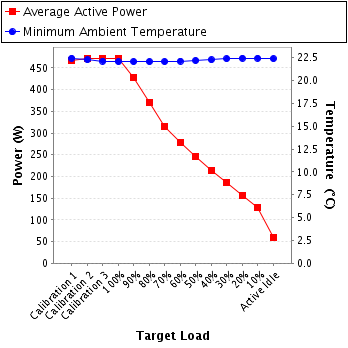

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 467 | 22.4 |
| Calibration 2 | 472 | 22.2 |
| Calibration 3 | 473 | 22.1 |
| 100% | 471 | 22.1 |
| 90% | 428 | 22.1 |
| 80% | 370 | 22.1 |
| 70% | 314 | 22.1 |
| 60% | 279 | 22.1 |
| 50% | 246 | 22.2 |
| 40% | 215 | 22.2 |
| 30% | 185 | 22.4 |
| 20% | 156 | 22.4 |
| 10% | 129 | 22.4 |
| Active Idle | 59.4 | 22.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91K218964 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-EJ4KB-80-1 |
| Date of Calibration: | 20-Apr-2018 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 218 | 300.0 | 2.16 | 5.0 | 0.993 | 467 | 0.5% |
| Calibration 2 | 217 | 300.0 | 2.19 | 5.0 | 0.994 | 472 | 0.5% |
| Calibration 3 | 216 | 300.0 | 2.21 | 5.0 | 0.994 | 473 | 0.5% |
| 100% | 216 | 300.0 | 2.20 | 5.0 | 0.994 | 471 | 0.5% |
| 90% | 216 | 300.0 | 2.00 | 5.0 | 0.993 | 428 | 0.5% |
| 80% | 216 | 300.0 | 1.73 | 5.0 | 0.991 | 370 | 0.6% |
| 70% | 216 | 300.0 | 1.47 | 5.0 | 0.989 | 314 | 0.7% |
| 60% | 216 | 300.0 | 1.31 | 5.0 | 0.988 | 279 | 0.7% |
| 50% | 215 | 300.0 | 1.16 | 5.0 | 0.987 | 246 | 0.8% |
| 40% | 215 | 300.0 | 1.01 | 2.0 | 0.989 | 215 | 0.5% |
| 30% | 215 | 300.0 | 0.872 | 2.0 | 0.986 | 185 | 0.5% |
| 20% | 215 | 300.0 | 0.739 | 2.0 | 0.983 | 156 | 0.6% |
| 10% | 215 | 300.0 | 0.611 | 2.0 | 0.977 | 129 | 0.7% |
| Active Idle | 215 | 300.0 | 0.302 | 1.0 | 0.920 | 59.4 | 0.7% |
