SPECpower_ssj2008 JVM Instance 'L3-183.171' Performance Report

SPECpower_ssj2008

JVM Instance 'L3-183.171' Performance Report

Lenovo Global Technology ThinkSystem SR950			ssj_ops@100% = 90,960
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, Beijing, China	Test Date:	Aug 26, 2018
Hardware Availability:	Jul-2018	Software Availability:	Jan-2018	Publication:	Sep 27, 2018
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

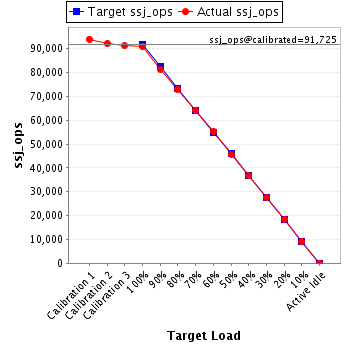

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			94,033
Calibration 2			92,174
Calibration 3			91,275
ssj_ops@calibrated=91,725
100%	99.2%	91,725	90,960
90%	88.8%	82,552	81,475
80%	79.7%	73,380	73,119
70%	69.9%	64,207	64,107
60%	60.3%	55,035	55,311
50%	49.9%	45,862	45,766
40%	40.0%	36,690	36,664
30%	30.1%	27,517	27,591
20%	20.1%	18,345	18,482
10%	9.9%	9,172	9,125
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	ThinkSystem SR950
Form Factor:	4U
CPU Name:	Intel Xeon Platinum 8176
CPU Characteristics:	28 Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2100
CPU(s) Enabled:	224 cores, 8 chips, 28 cores/chip
Hardware Threads:	448 (2 / core)
CPU(s) Orderable:	2,4,8 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	768
# and size of DIMM:	48 x 16 GB
Memory Details:	16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1, 3, 5, 8, 10, 12, 13, 15, 17, 20, 22, 24, 25, 27, 29, 32, 34, 36, 37, 39, 41, 44, 46, 48, 49, 51, 53, 56, 58, 60, 61, 63, 65, 68, 70, 72, 73, 75, 77, 80, 82, 84, 85, 87, 89, 92, 94, 96 populated
Power Supply Quantity and Rating (W):	1 x 1600
Power Supply Details:	Lenovo LN SP50L09210
Disk Drive:	1 x 32GB M.2 SSD (Lenovo P/N 7N47A00129)
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Broadcom NetXtreme Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2012 R2 DataCenter
OS Version:	Version 6.3.9600 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE[0,2,4,6,8,10,12,14] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3,5,7,9,11,13,15] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances:	224
JVM Initial Heap (MB):	1550
JVM Maximum Heap (MB):	1550
JVM Address Bits:	64
Boot Firmware Version:	PSE113P
Management Firmware Version:	PSI313Q
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows KB4056898

Boot Firmware Settings

Operating Mode: Custom Mode
Memory Power Management: Automatic
Page Policy:Adaptive
Intel VT for Directed I/O(VT-d): Disable
Memory Data Scrambling: Disable
Execute Disable Bit: Disable
Turbo Mode: Disable
Hardware Prefetcher: Disable
Adjacent Cache Prefetch: Disable
DCU Streamer Prefetcher: Disable
Patrol Scrub:Disable

Management Firmware Settings

none

System Under Test Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Benchmark was started via Windows Remote Desktop Connection
Minimum Processor State: 0%
Maximum Processor State: 100%
Set "Turn off hard disk after = 1 Minute" in OS.
Enable protection against speculative execution side-channel vulnerabilities according to Microsoft guidance: https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Aug 15, 2018)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 448 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	6,842,817	1,545
		Payment	6,842,818
		Order Status	684,282
		Delivery	684,281
		Stock Level	684,280
		Customer Report	6,842,818
Calibration 2		New Order	6,708,523	1,545
		Payment	6,708,525
		Order Status	670,853
		Delivery	670,852
		Stock Level	670,852
		Customer Report	6,708,523
Calibration 3		New Order	6,639,516	1,545
		Payment	6,639,517
		Order Status	663,953
		Delivery	663,952
		Stock Level	663,950
		Customer Report	6,639,515
100%	99.2%	New Order	6,617,417	1,545
		Payment	6,617,416
		Order Status	661,742
		Delivery	661,741
		Stock Level	661,742
		Customer Report	6,617,411
90%	88.8%	New Order	5,925,867	1,545
		Payment	5,925,865
		Order Status	592,586
		Delivery	592,586
		Stock Level	592,587
		Customer Report	5,925,870
80%	79.7%	New Order	5,319,164	1,545
		Payment	5,319,152
		Order Status	531,915
		Delivery	531,916
		Stock Level	531,915
		Customer Report	5,319,156
70%	69.9%	New Order	4,665,532	1,545
		Payment	4,665,534
		Order Status	466,552
		Delivery	466,553
		Stock Level	466,553
		Customer Report	4,665,532
60%	60.3%	New Order	4,023,032	1,545
		Payment	4,023,029
		Order Status	402,304
		Delivery	402,303
		Stock Level	402,304
		Customer Report	4,023,031
50%	49.9%	New Order	3,328,712	1,545
		Payment	3,328,710
		Order Status	332,871
		Delivery	332,872
		Stock Level	332,871
		Customer Report	3,328,713
40%	40.0%	New Order	2,666,663	1,545
		Payment	2,666,670
		Order Status	266,667
		Delivery	266,667
		Stock Level	266,667
		Customer Report	2,666,666
30%	30.1%	New Order	2,006,709	1,545
		Payment	2,006,709
		Order Status	200,672
		Delivery	200,671
		Stock Level	200,669
		Customer Report	2,006,706
20%	20.1%	New Order	1,344,240	1,545
		Payment	1,344,243
		Order Status	134,424
		Delivery	134,425
		Stock Level	134,424
		Customer Report	1,344,244
10%	9.9%	New Order	663,639	1,545
		Payment	663,632
		Order Status	66,365
		Delivery	66,363
		Stock Level	66,364
		Customer Report	663,637
Active Idle		New Order	0	1,545
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
