Lenovo Global Technology ThinkSystem SR950 SPECpower_ssj2008 = 12,377 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, Beijing, China Test Date: Aug 26, 2018
Hardware Availability: Jul-2018 Software Availability: Jan-2018 Publication: Sep 27, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 1,569 22.8
Calibration 2 1,496 22.7
Calibration 3 1,485 23.2
100% 1,479 23.2
90% 1,275 23.7
80% 1,122 24.0
70% 990 23.9
60% 875 23.4
50% 791 23.1
40% 710 23.2
30% 631 23.2
20% 552 23.2
10% 469 22.8
Active Idle 182 22.9

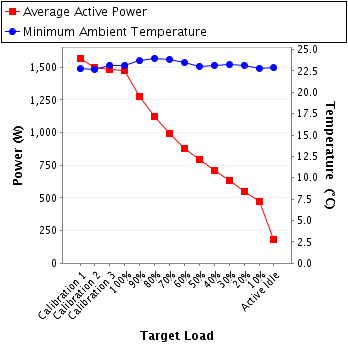

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UD17025E
Connectivity: USB
Input Connection: Default
Metrology Institute: Yokogawa Test & Measurement Corporation
Accredited by: Yokogawa Test & Measurement Corporation
Calibration Label: 2004871237-000010-0002
Date of Calibration: 19-Apr-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 448 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 218 300.0 7.22 20.0 0.996 1,569 0.3%
Calibration 2 218 300.0 6.88 20.0 0.996 1,496 0.3%
Calibration 3 218 300.0 6.83 20.0 0.996 1,485 0.3%
100% 218 300.0 6.80 20.0 0.996 1,479 0.3%
90% 218 300.0 5.87 20.0 0.995 1,275 0.4%
80% 219 300.0 5.16 20.0 0.994 1,122 0.4%
70% 219 300.0 4.55 10.0 0.994 990 0.3%
60% 219 300.0 4.03 10.0 0.993 875 0.3%
50% 219 300.0 3.64 10.0 0.991 791 0.3%
40% 219 300.0 3.28 10.0 0.988 710 0.3%
30% 219 300.0 2.90 10.0 0.990 631 0.4%
20% 219 300.0 2.54 10.0 0.988 552 0.4%
10% 219 300.0 2.17 10.0 0.985 469 0.5%
Active Idle 220 300.0 0.900 10.0 0.918 182 0.9%

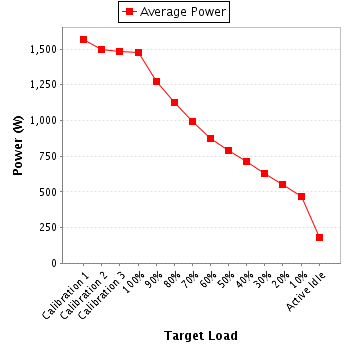

Power details for pwr1
