Hewlett Packard Enterprise ProLiant DL560 Gen10 ssj_ops@100% = 11,554,819
ssj_ops@100% per JVM = 1,444,352
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 27, 2018
Hardware Availability: Jun-2018 Software Availability: Jun-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,594,194
Calibration 2     11,579,926
Calibration 3     11,584,958
ssj_ops@calibrated=11,582,442
100% 99.8% 11,582,442 11,554,819
90% 90.0% 10,424,198 10,420,604
80% 80.0% 9,265,954 9,265,445
70% 70.0% 8,107,710 8,110,297
60% 59.9% 6,949,465 6,940,634
50% 50.0% 5,791,221 5,789,843
40% 40.0% 4,632,977 4,628,921
30% 30.0% 3,474,733 3,473,288
20% 20.0% 2,316,488 2,314,205
10% 10.0% 1,158,244 1,158,780
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL560 Gen10
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 24 x 8192 MB
Memory Details: 8 GB 2Rx8 PC4-2666V-R: slots 1, 3, 5, 8, 10, 12 populated on each socket
Power Supply Quantity and Rating (W): 2 x 800
Power Supply Details: HPE DPS-800AB-35 A 96% (865438-B21)
Disk Drive: 1 x HPE 240GB SATA 6G M.2 2280 SSD (875488-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10 (784308-B21)
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 2-port 332T Adapter (615732-B21)
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP3
OS Version: 4.4.120-94.17-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=384 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: numactl --cpunodebind=[0-7] --localalloc
JVM Instances: 8
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: U34 v1.40 06/15/2018
Management Firmware Version: 1.30 May 31 2018
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version:2018.06.0 (26 Jun 2018), HPE Microprocessor Vulnerability ROM Updates (spp_supplement-2018.06.0.2) Version:2018.06.0(9 Jul 2018); ucode-intel-20180312-13.17.1
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
DL560.001 1,432,086
DL560.002 1,436,824
DL560.003 1,452,730
DL560.004 1,448,334
DL560.005 1,434,680
DL560.006 1,461,732
DL560.007 1,452,560
DL560.008 1,435,872
ssj_ops@100% 11,554,819
ssj_ops@100% per JVM 1,444,352

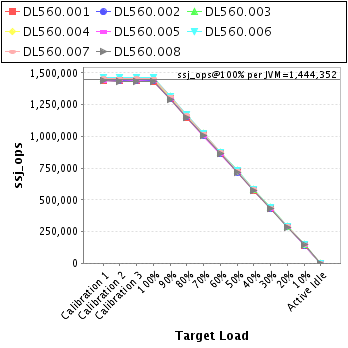

Graph of per-instance results
JVM 'DL560.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,436,959
Calibration 2     1,439,042
Calibration 3     1,437,539
ssj_ops@calibrated=1,438,291
100% 99.6% 1,438,291 1,432,086
90% 90.1% 1,294,462 1,295,281
80% 79.9% 1,150,633 1,149,587
70% 70.3% 1,006,803 1,011,392
60% 59.9% 862,974 861,782
50% 50.0% 719,145 719,745
40% 39.9% 575,316 573,542
30% 30.1% 431,487 432,217
20% 20.0% 287,658 288,034
10% 10.0% 143,829 143,715
Active Idle   0 0
Graph of results

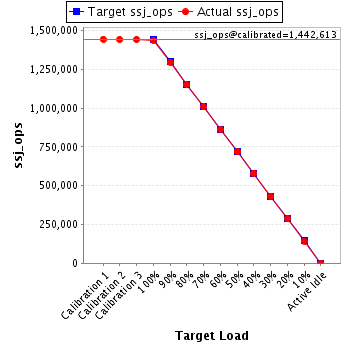

JVM 'DL560.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,444,764
Calibration 2     1,442,922
Calibration 3     1,442,303
ssj_ops@calibrated=1,442,613
100% 99.6% 1,442,613 1,436,824
90% 89.9% 1,298,351 1,296,371
80% 79.9% 1,154,090 1,153,018
70% 70.0% 1,009,829 1,009,496
60% 59.9% 865,568 863,691
50% 49.8% 721,306 718,148
40% 40.1% 577,045 578,363
30% 30.0% 432,784 432,959
20% 20.0% 288,523 288,069
10% 9.9% 144,261 143,387
Active Idle   0 0
Graph of results
JVM 'DL560.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,459,871
Calibration 2     1,456,596
Calibration 3     1,458,148
ssj_ops@calibrated=1,457,372
100% 99.7% 1,457,372 1,452,730
90% 90.0% 1,311,635 1,312,060
80% 79.9% 1,165,898 1,164,430
70% 69.9% 1,020,160 1,019,333
60% 59.9% 874,423 873,304
50% 50.1% 728,686 729,713
40% 39.9% 582,949 582,070
30% 29.9% 437,212 436,383
20% 20.0% 291,474 292,083
10% 10.0% 145,737 145,378
Active Idle   0 0
Graph of results
JVM 'DL560.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,449,420
Calibration 2     1,451,532
Calibration 3     1,450,644
ssj_ops@calibrated=1,451,088
100% 99.8% 1,451,088 1,448,334
90% 90.2% 1,305,979 1,308,613
80% 80.0% 1,160,870 1,160,734
70% 70.2% 1,015,761 1,018,676
60% 60.0% 870,653 870,268
50% 50.0% 725,544 725,391
40% 40.0% 580,435 580,415
30% 30.1% 435,326 436,832
20% 20.0% 290,218 290,172
10% 10.0% 145,109 145,269
Active Idle   0 0
Graph of results
JVM 'DL560.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,439,650
Calibration 2     1,435,784
Calibration 3     1,438,448
ssj_ops@calibrated=1,437,116
100% 99.8% 1,437,116 1,434,680
90% 89.8% 1,293,404 1,290,961
80% 80.2% 1,149,693 1,152,353
70% 69.7% 1,005,981 1,002,149
60% 59.9% 862,269 860,341
50% 49.9% 718,558 716,885
40% 40.0% 574,846 574,147
30% 30.0% 431,135 431,463
20% 20.1% 287,423 288,205
10% 10.0% 143,712 143,564
Active Idle   0 0
Graph of results
JVM 'DL560.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,466,383
Calibration 2     1,464,323
Calibration 3     1,463,337
ssj_ops@calibrated=1,463,830
100% 99.9% 1,463,830 1,461,732
90% 89.9% 1,317,447 1,316,052
80% 79.9% 1,171,064 1,169,855
70% 70.0% 1,024,681 1,024,011
60% 59.8% 878,298 874,724
50% 50.1% 731,915 734,061
40% 39.9% 585,532 584,715
30% 29.9% 439,149 437,639
20% 19.9% 292,766 290,724
10% 10.0% 146,383 146,892
Active Idle   0 0
Graph of results
JVM 'DL560.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,459,035
Calibration 2     1,454,070
Calibration 3     1,458,408
ssj_ops@calibrated=1,456,239
100% 99.7% 1,456,239 1,452,560
90% 90.0% 1,310,615 1,311,231
80% 80.2% 1,164,991 1,168,236
70% 70.0% 1,019,367 1,019,105
60% 60.1% 873,743 875,412
50% 49.9% 728,120 726,794
40% 40.0% 582,496 583,085
30% 29.9% 436,872 435,202
20% 20.0% 291,248 291,203
10% 10.0% 145,624 145,750
Active Idle   0 0
Graph of results
JVM 'DL560.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,438,113
Calibration 2     1,435,658
Calibration 3     1,436,131
ssj_ops@calibrated=1,435,894
100% 100.0% 1,435,894 1,435,872
90% 89.8% 1,292,305 1,290,035
80% 79.9% 1,148,715 1,147,232
70% 70.1% 1,005,126 1,006,136
60% 60.0% 861,537 861,112
50% 50.1% 717,947 719,104
40% 39.9% 574,358 572,584
30% 30.0% 430,768 430,593
20% 19.9% 287,179 285,715
10% 10.1% 143,589 144,825
Active Idle   0 0
Graph of results
