Hewlett Packard Enterprise ProLiant DL360 Gen10 | SPECpower_ssj2008 = 11,126 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Aug 27, 2018 |
Hardware Availability: | Jun-2018 | Software Availability: | Jul-2018 | Publication: | Sep 12, 2018 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

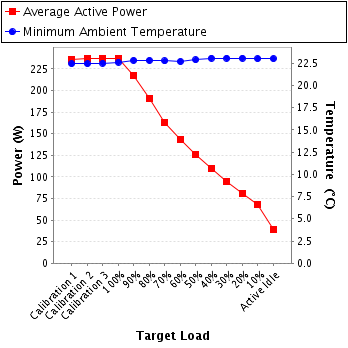

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 236 | 22.4 |
Calibration 2 | 237 | 22.4 |
Calibration 3 | 237 | 22.5 |
100% | 237 | 22.6 |
90% | 217 | 22.8 |
80% | 191 | 22.8 |
70% | 163 | 22.8 |
60% | 144 | 22.7 |
50% | 126 | 22.9 |
40% | 109 | 23.1 |
30% | 94.1 | 23.1 |
20% | 80.7 | 23.1 |
10% | 68.1 | 23.0 |
Active Idle | 38.9 | 23.0 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT310 |
Serial Number: | C2QM22004V |
Connectivity: | Yokogawa USB |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-EL6R4-140-1 |
Date of Calibration: | 05-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | Connected to SUT Power Supply 1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 213 | 300.0 | 1.13 | 2.0 | 0.980 | 236 | 0.4% |
Calibration 2 | 213 | 300.0 | 1.14 | 2.0 | 0.980 | 237 | 0.4% |
Calibration 3 | 213 | 300.0 | 1.14 | 2.0 | 0.980 | 237 | 0.4% |
100% | 213 | 300.0 | 1.13 | 2.0 | 0.980 | 237 | 0.4% |
90% | 213 | 300.0 | 1.04 | 2.0 | 0.980 | 217 | 0.4% |
80% | 213 | 300.0 | 0.920 | 1.0 | 0.975 | 191 | 0.3% |
70% | 213 | 300.0 | 0.791 | 1.0 | 0.967 | 163 | 0.3% |
60% | 213 | 300.0 | 0.704 | 1.0 | 0.958 | 144 | 0.4% |
50% | 213 | 300.0 | 0.623 | 1.0 | 0.947 | 126 | 0.4% |
40% | 213 | 300.0 | 0.551 | 1.0 | 0.934 | 109 | 0.4% |
30% | 213 | 300.0 | 0.482 | 1.0 | 0.917 | 94.1 | 0.5% |
20% | 213 | 300.0 | 0.423 | 0.5 | 0.896 | 80.7 | 0.4% |
10% | 212 | 300.0 | 0.370 | 0.5 | 0.869 | 68.1 | 0.4% |
Active Idle | 212 | 300.0 | 0.259 | 0.5 | 0.709 | 38.9 | 0.6% |
