Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,689,156
ssj_ops@100% per JVM = 1,422,289
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 26, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,703,488
Calibration 2     5,703,471
Calibration 3     5,714,350
ssj_ops@calibrated=5,708,910
100% 99.7% 5,708,910 5,689,156
90% 90.1% 5,138,019 5,144,376
80% 80.0% 4,567,128 4,565,254
70% 70.0% 3,996,237 3,996,502
60% 59.9% 3,425,346 3,422,204
50% 50.0% 2,854,455 2,852,553
40% 39.9% 2,283,564 2,280,367
30% 30.0% 1,712,673 1,711,251
20% 20.0% 1,141,782 1,141,350
10% 10.0% 570,891 571,776
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 7
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE05.001 1,427,127
NODE05.002 1,403,387
NODE05.003 1,435,141
NODE05.004 1,423,500
ssj_ops@100% 5,689,156
ssj_ops@100% per JVM 1,422,289

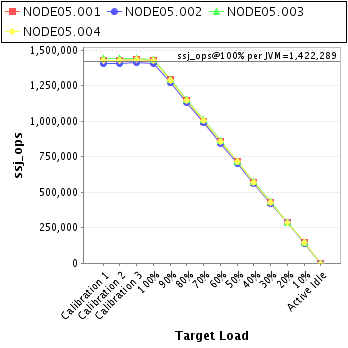

Graph of per-instance results
JVM 'NODE05.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,426,767
Calibration 2     1,426,996
Calibration 3     1,432,434
ssj_ops@calibrated=1,429,715
100% 99.8% 1,429,715 1,427,127
90% 90.3% 1,286,743 1,290,902
80% 79.9% 1,143,772 1,142,947
70% 69.9% 1,000,800 999,677
60% 60.1% 857,829 859,901
50% 50.1% 714,857 715,825
40% 39.9% 571,886 570,248
30% 30.1% 428,914 429,639
20% 20.1% 285,943 286,988
10% 10.0% 142,971 142,850
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE05.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,404,523
Calibration 2     1,406,645
Calibration 3     1,410,097
ssj_ops@calibrated=1,408,371
100% 99.6% 1,408,371 1,403,387
90% 90.1% 1,267,534 1,268,668
80% 80.1% 1,126,697 1,127,971
70% 70.1% 985,860 986,851
60% 59.8% 845,023 842,785
50% 49.9% 704,186 702,324
40% 40.0% 563,349 562,694
30% 29.7% 422,511 418,986
20% 20.2% 281,674 284,336
10% 10.0% 140,837 140,892
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE05.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,442,535
Calibration 2     1,441,984
Calibration 3     1,440,018
ssj_ops@calibrated=1,441,001
100% 99.6% 1,441,001 1,435,141
90% 89.9% 1,296,901 1,295,901
80% 79.9% 1,152,801 1,150,767
70% 69.9% 1,008,701 1,007,950
60% 60.0% 864,601 864,481
50% 49.9% 720,500 718,383
40% 40.0% 576,400 575,876
30% 30.1% 432,300 433,975
20% 19.8% 288,200 285,985
10% 10.0% 144,100 144,103
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE05.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,429,662
Calibration 2     1,427,846
Calibration 3     1,431,800
ssj_ops@calibrated=1,429,823
100% 99.6% 1,429,823 1,423,500
90% 90.1% 1,286,841 1,288,905
80% 80.0% 1,143,859 1,143,569
70% 70.1% 1,000,876 1,002,024
60% 59.8% 857,894 855,036
50% 50.1% 714,912 716,020
40% 40.0% 571,929 571,549
30% 30.0% 428,947 428,651
20% 19.9% 285,965 284,041
10% 10.1% 142,982 143,931
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
