Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module SPECpower_ssj2008 = 10,429 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 24, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 3,957 22.2
Calibration 2 3,974 22.3
Calibration 3 3,978 22.3
100% 3,971 22.2
90% 3,594 22.2
80% 3,038 22.2
70% 2,625 22.2
60% 2,295 22.3
50% 2,007 22.4
40% 1,784 22.6
30% 1,590 22.5
20% 1,402 22.4
10% 1,211 22.3
Active Idle 695 22.3

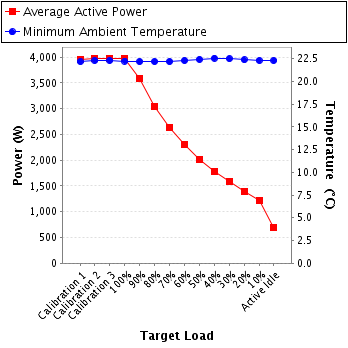

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 2, and 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EN5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1, and 4
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 3, and 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 6.32 10.0 0.992 1,326 0.4%
Calibration 2 212 300.0 6.35 10.0 0.992 1,332 0.4%
Calibration 3 211 300.0 6.37 10.0 0.992 1,333 0.4%
100% 211 300.0 6.35 10.0 0.992 1,331 0.4%
90% 211 300.0 5.73 10.0 0.989 1,196 0.4%
80% 211 300.0 4.86 10.0 0.985 1,011 0.5%
70% 212 300.0 4.25 10.0 0.981 882 0.5%
60% 212 300.0 3.76 5.0 0.975 777 0.4%
50% 212 300.0 3.33 5.0 0.969 684 0.4%
40% 211 300.0 3.04 5.0 0.963 619 0.4%
30% 212 300.0 2.66 5.0 0.950 536 0.5%
20% 211 300.0 2.47 5.0 0.932 486 0.5%
10% 212 300.0 2.11 5.0 0.897 400 0.6%
Active Idle 212 300.0 1.36 2.0 0.798 230 0.6%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 6.27 10.0 0.992 1,319 0.4%
Calibration 2 212 300.0 6.30 10.0 0.992 1,325 0.4%
Calibration 3 212 300.0 6.32 10.0 0.992 1,326 0.4%
100% 212 300.0 6.30 10.0 0.992 1,323 0.4%
90% 212 300.0 5.75 10.0 0.990 1,204 0.4%
80% 212 300.0 4.88 10.0 0.986 1,019 0.5%
70% 212 300.0 4.21 10.0 0.982 876 0.5%
60% 212 300.0 3.69 5.0 0.976 765 0.4%
50% 212 300.0 3.21 5.0 0.968 661 0.4%
40% 212 300.0 2.85 5.0 0.960 581 0.5%
30% 212 300.0 2.68 5.0 0.955 542 0.5%
20% 212 300.0 2.31 5.0 0.924 452 0.6%
10% 212 300.0 2.04 5.0 0.889 385 0.6%
Active Idle 212 300.0 1.31 2.0 0.795 220 0.6%

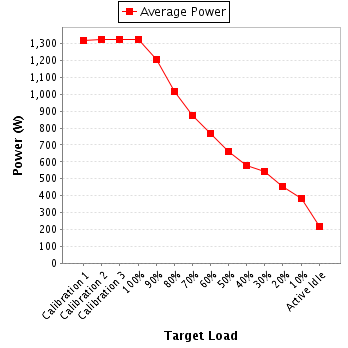

Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 214 300.0 6.33 10.0 0.967 1,311 0.4%
Calibration 2 214 300.0 6.36 10.0 0.968 1,317 0.4%
Calibration 3 214 300.0 6.38 10.0 0.968 1,319 0.4%
100% 214 300.0 6.37 10.0 0.968 1,317 0.4%
90% 214 300.0 5.81 10.0 0.961 1,194 0.5%
80% 214 300.0 4.98 10.0 0.946 1,007 0.5%
70% 214 300.0 4.36 10.0 0.929 867 0.6%
60% 214 300.0 3.87 5.0 0.909 753 0.4%
50% 214 300.0 3.48 5.0 0.886 662 0.5%
40% 214 300.0 3.18 5.0 0.858 585 0.5%
30% 214 300.0 2.89 5.0 0.825 512 0.6%
20% 214 300.0 2.74 5.0 0.791 464 0.6%
10% 214 300.0 2.60 5.0 0.765 426 0.7%
Active Idle 215 300.0 1.99 2.0 0.572 244 0.7%
Power details for pwr3
