Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module SPECpower_ssj2008 = 10,541 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 26, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 4,422 22.5
Calibration 2 4,448 22.4
Calibration 3 4,453 22.5
100% 4,444 22.4
90% 4,022 22.4
80% 3,384 22.4
70% 2,927 22.6
60% 2,551 22.6
50% 2,232 22.6
40% 1,985 22.6
30% 1,766 22.6
20% 1,554 22.5
10% 1,332 22.5
Active Idle 746 22.6
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 2, and 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EN5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1, and 4
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 3, and 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 7.07 10.0 0.992 1,493 0.4%
Calibration 2 213 300.0 7.12 10.0 0.992 1,503 0.4%
Calibration 3 212 300.0 7.15 10.0 0.992 1,506 0.4%
100% 212 300.0 7.16 10.0 0.993 1,504 0.4%
90% 212 300.0 6.41 10.0 0.992 1,349 0.4%
80% 213 300.0 5.36 10.0 0.988 1,125 0.4%
70% 213 300.0 4.67 10.0 0.984 979 0.5%
60% 213 300.0 4.12 5.0 0.979 860 0.4%
50% 213 300.0 3.63 5.0 0.973 752 0.4%
40% 213 300.0 3.19 5.0 0.966 656 0.4%
30% 213 300.0 2.84 5.0 0.956 580 0.5%
20% 213 300.0 2.47 5.0 0.938 495 0.5%
10% 214 300.0 2.33 5.0 0.922 460 0.6%
Active Idle 214 300.0 1.40 2.0 0.804 241 0.5%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 6.95 10.0 0.993 1,470 0.4%
Calibration 2 213 300.0 6.98 10.0 0.993 1,477 0.4%
Calibration 3 213 300.0 6.99 10.0 0.993 1,476 0.4%
100% 212 300.0 6.99 10.0 0.993 1,472 0.4%
90% 213 300.0 6.37 10.0 0.992 1,342 0.4%
80% 213 300.0 5.40 10.0 0.989 1,136 0.4%
70% 213 300.0 4.65 10.0 0.985 977 0.5%
60% 213 300.0 4.06 5.0 0.980 848 0.4%
50% 213 300.0 3.56 5.0 0.974 740 0.4%
40% 213 300.0 3.21 5.0 0.969 663 0.4%
30% 214 300.0 2.89 5.0 0.961 593 0.5%
20% 214 300.0 2.60 5.0 0.950 528 0.5%
10% 214 300.0 2.15 5.0 0.912 419 0.6%
Active Idle 214 300.0 1.40 2.0 0.820 245 0.5%

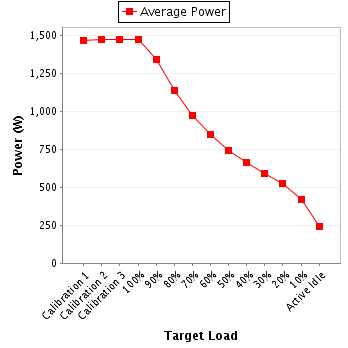

Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 216 300.0 6.93 10.0 0.973 1,459 0.4%
Calibration 2 216 300.0 6.97 10.0 0.974 1,468 0.4%
Calibration 3 216 300.0 6.99 10.0 0.974 1,470 0.4%
100% 215 300.0 7.00 10.0 0.974 1,467 0.4%
90% 216 300.0 6.36 10.0 0.969 1,330 0.4%
80% 216 300.0 5.43 10.0 0.956 1,124 0.5%
70% 217 300.0 4.76 10.0 0.942 972 0.5%
60% 217 300.0 4.21 5.0 0.925 843 0.4%
50% 217 300.0 3.77 5.0 0.907 740 0.4%
40% 217 300.0 3.45 5.0 0.888 665 0.5%
30% 217 300.0 3.16 5.0 0.864 593 0.5%
20% 217 300.0 2.92 5.0 0.838 531 0.6%
10% 217 300.0 2.65 5.0 0.789 453 0.6%
Active Idle 218 300.0 1.99 2.0 0.602 261 0.6%
Power details for pwr3
