Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,734,170
ssj_ops@100% per JVM = 1,433,542
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 24, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,754,123
Calibration 2     5,745,141
Calibration 3     5,754,144
ssj_ops@calibrated=5,749,642
100% 99.7% 5,749,642 5,734,170
90% 90.0% 5,174,678 5,175,267
80% 79.9% 4,599,714 4,595,739
70% 69.9% 4,024,750 4,021,607
60% 60.0% 3,449,785 3,451,028
50% 50.0% 2,874,821 2,872,800
40% 40.1% 2,299,857 2,307,468
30% 30.0% 1,724,893 1,726,405
20% 19.9% 1,149,928 1,146,836
10% 10.1% 574,964 578,320
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 10
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE03.001 1,427,968
NODE03.002 1,437,916
NODE03.003 1,429,636
NODE03.004 1,438,651
ssj_ops@100% 5,734,170
ssj_ops@100% per JVM 1,433,542

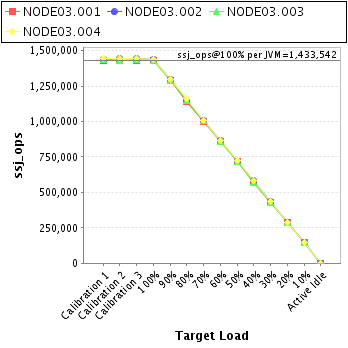

Graph of per-instance results
JVM 'NODE03.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,430,913
Calibration 2     1,429,214
Calibration 3     1,429,572
ssj_ops@calibrated=1,429,393
100% 99.9% 1,429,393 1,427,968
90% 90.1% 1,286,454 1,288,069
80% 79.6% 1,143,514 1,138,013
70% 70.0% 1,000,575 1,000,012
60% 60.0% 857,636 858,245
50% 50.1% 714,697 716,139
40% 40.1% 571,757 572,509
30% 29.9% 428,818 427,109
20% 19.9% 285,879 285,150
10% 10.1% 142,939 144,659
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE03.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,440,922
Calibration 2     1,441,814
Calibration 3     1,442,394
ssj_ops@calibrated=1,442,104
100% 99.7% 1,442,104 1,437,916
90% 89.9% 1,297,894 1,296,958
80% 79.8% 1,153,683 1,151,199
70% 69.7% 1,009,473 1,005,398
60% 60.0% 865,263 865,547
50% 49.8% 721,052 718,376
40% 40.2% 576,842 580,381
30% 30.0% 432,631 432,771
20% 20.0% 288,421 288,662
10% 10.1% 144,210 145,070
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE03.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,435,552
Calibration 2     1,432,460
Calibration 3     1,436,339
ssj_ops@calibrated=1,434,400
100% 99.7% 1,434,400 1,429,636
90% 90.0% 1,290,960 1,290,515
80% 80.0% 1,147,520 1,147,585
70% 70.2% 1,004,080 1,007,118
60% 60.0% 860,640 859,932
50% 49.9% 717,200 715,609
40% 39.9% 573,760 572,409
30% 29.9% 430,320 429,584
20% 19.8% 286,880 284,503
10% 10.0% 143,440 143,366
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE03.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,446,737
Calibration 2     1,441,652
Calibration 3     1,445,838
ssj_ops@calibrated=1,443,745
100% 99.6% 1,443,745 1,438,651
90% 90.0% 1,299,371 1,299,725
80% 80.3% 1,154,996 1,158,941
70% 69.9% 1,010,622 1,009,078
60% 60.1% 866,247 867,304
50% 50.1% 721,873 722,676
40% 40.3% 577,498 582,169
30% 30.3% 433,124 436,941
20% 20.0% 288,749 288,521
10% 10.1% 144,375 145,225
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
