Supermicro Inc. SYS-1029U-TR4 SPECpower_ssj2008 = 11,960 overall ssj_ops/watt
Test Sponsor: Supermicro Inc. SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Inc. Test Location: Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) Test Date: Jul 15, 2018
Hardware Availability: Nov-2017 Software Availability: Jul-2017 Publication: Aug 15, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 425 20.5
Calibration 2 425 20.9
Calibration 3 418 21.0
100% 423 21.1
90% 357 21.1
80% 316 21.0
70% 277 20.9
60% 242 20.9
50% 215 20.8
40% 198 20.8
30% 178 20.8
20% 156 20.7
10% 133 20.6
Active Idle 64.2 20.6

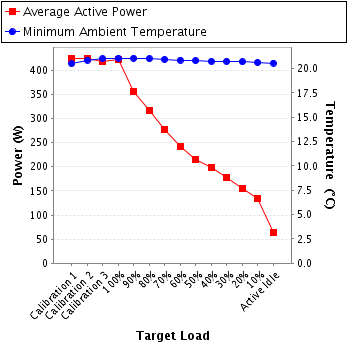

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation.
Model: WT310
Serial Number: C3TA01001E
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: Omnio Calibration Lab. Co., Ltd.
Calibration Label: OCL-2351803H15G8
Date of Calibration: 16-Mar-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 227 300.0 1.89 2.0 0.989 425 0.2%
Calibration 2 227 300.0 1.89 2.0 0.989 425 0.2%
Calibration 3 227 300.0 1.86 2.0 0.989 418 0.2%
100% 228 300.0 1.88 2.0 0.989 423 0.2%
90% 228 300.0 1.59 2.0 0.987 357 0.2%
80% 228 300.0 1.41 2.0 0.985 316 0.2%
70% 228 300.0 1.24 2.0 0.981 277 0.3%
60% 227 300.0 1.10 2.0 0.975 242 0.3%
50% 225 300.0 0.987 1.0 0.969 215 0.2%
40% 225 300.0 0.913 1.0 0.964 198 0.2%
30% 225 300.0 0.829 1.0 0.957 178 0.2%
20% 225 300.0 0.731 1.0 0.948 156 0.3%
10% 225 300.0 0.636 1.0 0.933 133 0.3%
Active Idle 224 300.0 0.349 0.5 0.820 64.2 0.3%
Power details for pwr1
