Hewlett Packard Enterprise ProLiant DL385 Gen10 | SPECpower_ssj2008 = 11,140 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Jul 3, 2018 |
Hardware Availability: | May-2018 | Software Availability: | Feb-2018 | Publication: | Jul 18, 2018 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

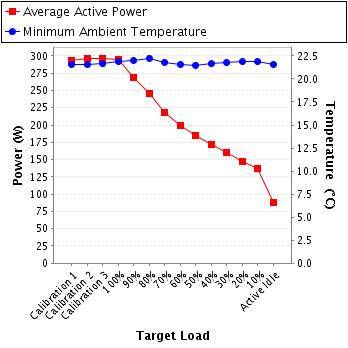

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 293 | 21.6 |
Calibration 2 | 297 | 21.6 |
Calibration 3 | 297 | 21.6 |
100% | 295 | 21.9 |
90% | 269 | 22.0 |
80% | 246 | 22.2 |
70% | 218 | 21.8 |
60% | 199 | 21.6 |
50% | 184 | 21.5 |
40% | 172 | 21.6 |
30% | 160 | 21.8 |
20% | 148 | 21.9 |
10% | 137 | 21.9 |
Active Idle | 88.3 | 21.6 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT310E |
Serial Number: | C2QM22002V |
Connectivity: | Yokogawa USB |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-D537U-20-1 |
Date of Calibration: | 28-Jul-2017 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supply 1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |

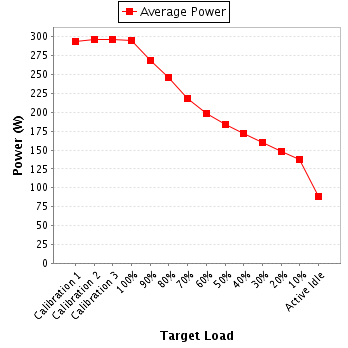

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 215 | 300.0 | 1.39 | 2.0 | 0.982 | 293 | 0.3% |
Calibration 2 | 215 | 300.0 | 1.40 | 2.0 | 0.982 | 297 | 0.3% |
Calibration 3 | 215 | 300.0 | 1.41 | 2.0 | 0.982 | 297 | 0.3% |
100% | 215 | 300.0 | 1.40 | 2.0 | 0.982 | 295 | 0.3% |
90% | 215 | 300.0 | 1.27 | 2.0 | 0.980 | 269 | 0.4% |
80% | 215 | 300.0 | 1.17 | 2.0 | 0.977 | 246 | 0.4% |
70% | 215 | 300.0 | 1.04 | 2.0 | 0.975 | 218 | 0.4% |
60% | 215 | 300.0 | 0.952 | 2.0 | 0.971 | 199 | 0.4% |
50% | 215 | 300.0 | 0.886 | 2.0 | 0.968 | 184 | 0.5% |
40% | 215 | 300.0 | 0.831 | 2.0 | 0.965 | 172 | 0.5% |
30% | 215 | 300.0 | 0.776 | 2.0 | 0.961 | 160 | 0.5% |
20% | 215 | 300.0 | 0.721 | 2.0 | 0.954 | 148 | 0.6% |
10% | 215 | 300.0 | 0.673 | 2.0 | 0.949 | 137 | 0.6% |
Active Idle | 216 | 300.0 | 0.459 | 1.0 | 0.892 | 88.3 | 0.5% |
