Dell Inc. PowerEdge R840 (Intel Xeon Platinum 8180 2.50 GHz) SPECpower_ssj2008 = 11,962 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jun 20, 2018
Hardware Availability: Jun-2018 Software Availability: Nov-2016 Publication: Jul 18, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 916 20.9
Calibration 2 927 21.1
Calibration 3 927 21.4
100% 923 21.6
90% 822 21.8
80% 689 21.7
70% 575 21.7
60% 496 21.6
50% 430 21.8
40% 374 21.9
30% 326 22.1
20% 280 21.9
10% 232 21.8
Active Idle 85.6 21.8

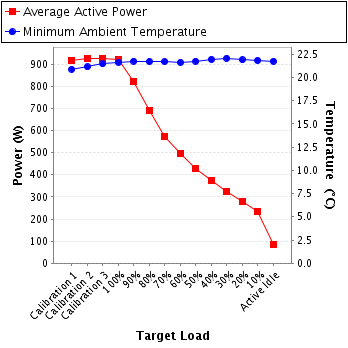

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91KA21979
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: TesCom
Calibration Label: 66762
Date of Calibration: 27-Feb-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 208 300.0 4.41 5.0 0.999 916 0.3%
Calibration 2 208 300.0 4.46 5.0 0.999 927 0.3%
Calibration 3 208 300.0 4.46 5.0 0.999 927 0.3%
100% 208 300.0 4.45 5.0 0.999 923 0.3%
90% 208 300.0 3.96 5.0 0.998 822 0.3%
80% 208 300.0 3.33 5.0 0.997 689 0.4%
70% 208 300.0 2.77 5.0 0.996 575 0.4%
60% 208 300.0 2.39 5.0 0.996 496 0.5%
50% 208 300.0 2.07 5.0 0.995 430 0.5%
40% 208 300.0 1.81 2.0 0.992 374 0.3%
30% 208 300.0 1.58 2.0 0.989 326 0.4%
20% 208 300.0 1.36 2.0 0.984 280 0.4%
10% 208 300.0 1.14 2.0 0.976 232 0.5%
Active Idle 208 300.0 0.477 1.0 0.861 85.6 0.6%
Power details for pwr1
