Sugon I620-G30 (Intel Xeon Platinum 8180) | SPECpower_ssj2008 = 12,306 overall ssj_ops/watt | ||||
Test Sponsor: | Sugon | SPEC License #: | 9046 | Test Method: | Single Node |
Tested By: | Sugon | Test Location: | Beijing, CHN | Test Date: | May 25, 2018 |
Hardware Availability: | Feb-2018 | Software Availability: | Jan-2018 | Publication: | Aug 15, 2018 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

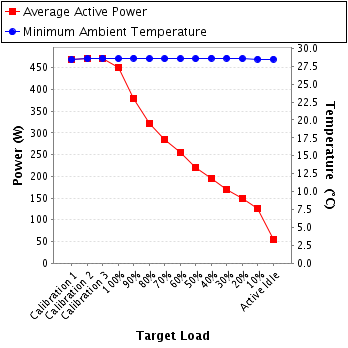

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 468 | 28.4 |
Calibration 2 | 471 | 28.6 |
Calibration 3 | 472 | 28.6 |
100% | 450 | 28.6 |
90% | 378 | 28.6 |
80% | 320 | 28.6 |
70% | 284 | 28.6 |
60% | 254 | 28.6 |
50% | 221 | 28.6 |
40% | 194 | 28.6 |
30% | 171 | 28.6 |
20% | 149 | 28.6 |
10% | 125 | 28.5 |
Active Idle | 54.6 | 28.5 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | YOKOGAWA Meters and Instruments Corporation |
Model: | WT310E |
Serial Number: | C3UB14026E |
Connectivity: | GPIB |
Input Connection: | Default |
Metrology Institute: | CNAS(China National Accreditation Service for Conformity Assessment) |
Accredited by: | National Institute of Metrology |
Calibration Label: | CSG06300180301-1145 |
Date of Calibration: | 01-Mar-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | Connect to PSU1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | iButton Link Technology |
Model: | iButton Link T-Sense/T-Probe |
Driver Version: | 2.12.24.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 10mm in front of SUT main airflow intake |

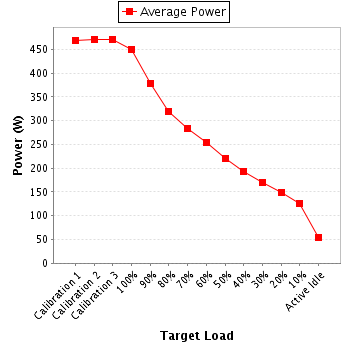

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 223 | 300.0 | 2.11 | 5.0 | 0.992 | 468 | 0.3% |
Calibration 2 | 223 | 300.0 | 2.13 | 5.0 | 0.993 | 471 | 0.3% |
Calibration 3 | 222 | 300.0 | 2.14 | 5.0 | 0.993 | 472 | 0.3% |
100% | 223 | 300.0 | 2.04 | 5.0 | 0.992 | 450 | 0.3% |
90% | 223 | 300.0 | 1.71 | 2.0 | 0.991 | 378 | 0.2% |
80% | 223 | 300.0 | 1.45 | 2.0 | 0.988 | 320 | 0.2% |
70% | 223 | 300.0 | 1.29 | 2.0 | 0.986 | 284 | 0.2% |
60% | 224 | 300.0 | 1.16 | 2.0 | 0.981 | 254 | 0.3% |
50% | 223 | 300.0 | 1.02 | 2.0 | 0.976 | 221 | 0.3% |
40% | 221 | 300.0 | 0.903 | 1.0 | 0.970 | 194 | 0.2% |
30% | 224 | 300.0 | 0.793 | 1.0 | 0.961 | 171 | 0.2% |
20% | 224 | 300.0 | 0.699 | 1.0 | 0.950 | 149 | 0.3% |
10% | 224 | 300.0 | 0.597 | 1.0 | 0.935 | 125 | 0.3% |
Active Idle | 224 | 300.0 | 0.345 | 0.5 | 0.710 | 54.6 | 0.4% |
