Sugon A620-G30 SPECpower_ssj2008 = 10,831 overall ssj_ops/watt
Test Sponsor: Sugon SPEC License #: 9046 Test Method: Single Node
Tested By: Sugon Test Location: Beijing, CHN Test Date: Apr 23, 2018
Hardware Availability: Sep-2018 Software Availability: Oct-2017 Publication: Jul 5, 2018
System Source: Parts Built System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 294 28.2
Calibration 2 296 28.2
Calibration 3 297 28.3
100% 296 28.3
90% 279 28.2
80% 258 28.2
70% 233 28.2
60% 212 28.3
50% 196 28.2
40% 183 28.2
30% 171 28.3
20% 159 28.4
10% 145 28.4
Active Idle 94.9 28.4

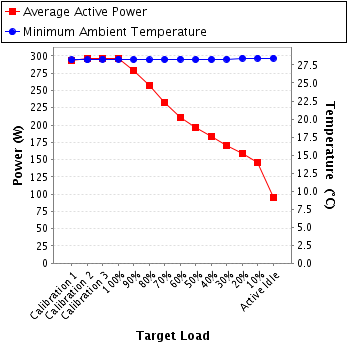

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Chroma Inc.
Model: Chroma66202
Serial Number: 662022006060
Connectivity: GPIB
Input Connection: Default
Metrology Institute: National Institute of Metrology
Accredited by: Internal Calibration Laboratory
Calibration Label: C1804051425
Date of Calibration: 5-Apr-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: iButton Link Technology
Model: iButton Link T-Sense/T-Probe
Driver Version: 2.12.24.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 224 300.0 1.33 2.0 0.987 294 0.3%
Calibration 2 225 300.0 1.34 2.0 0.987 296 0.3%
Calibration 3 224 300.0 1.34 2.0 0.987 297 0.3%
100% 224 300.0 1.34 2.0 0.987 296 0.3%
90% 226 300.0 1.26 2.0 0.984 279 0.3%
80% 226 300.0 1.16 2.0 0.980 258 0.3%
70% 228 300.0 1.05 2.0 0.974 233 0.4%
60% 228 300.0 0.956 2.0 0.971 212 0.4%
50% 228 300.0 0.888 2.0 0.968 196 0.4%
40% 228 300.0 0.835 2.0 0.964 183 0.4%
30% 228 300.0 0.782 2.0 0.960 171 0.5%
20% 227 300.0 0.731 2.0 0.955 159 0.5%
10% 228 300.0 0.673 2.0 0.947 145 0.5%
Active Idle 228 300.0 0.459 2.0 0.906 94.9 0.7%
Power details for pwr1
