Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module SPECpower_ssj2008 = 11,021 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Apr 10, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Apr 26, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 69,404,522 5,968 11,630
90% 90.0% 62,632,356 5,387 11,627
80% 80.0% 55,704,892 4,510 12,350
70% 70.0% 48,719,173 3,815 12,771
60% 60.0% 41,742,200 3,284 12,710
50% 50.0% 34,792,887 2,837 12,266
40% 40.0% 27,851,045 2,484 11,214
30% 30.0% 20,875,301 2,183 9,562
20% 20.0% 13,919,003 1,895 7,345
10% 10.0% 6,962,600 1,596 4,361
Active Idle 0 758 0
∑ssj_ops / ∑power = 11,021

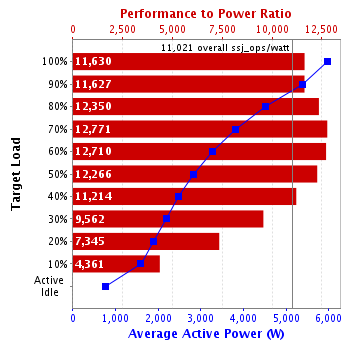

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
6 24 672 1,344 2,304 6 48
System Under Test
Shared Hardware
Shared Hardware
Enclosure: HPE Synergy 12000 Frame
Form Factor: 10U
Power Supply Quantity and Rating (W): 6 x 2650
Power Supply Details: HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch: 1
Network Switch Details: HP A5820X Series Switch JG219A
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: 1 x HPE Synergy 10Gb Pass Thru Module (799330-B21), 1 x HPE Synergy Composer (804353-B21), 1 x HPE Synergy Frame Link Module (804942-B21)
Comment: Network switch not measured for power
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 6
Comment: SUT
Hardware per Node
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 660 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE 480GB SATA 6G Read Intensive M.2 (875319-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=30 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2,4,6] /AFFINITY [0x0000000FC0FF, 0xFC0FF0000000]; start /NODE [1,3,5,7] /AFFINITY [0x0000000FF03F,0xFF03F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I43 v1.32 (02/01/2018)
Management Firmware Version: 1.15 August 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
CPU Description: 2 x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Microsoft Windows Server 2012 R2
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_144-b01 (build 25.144-b01, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91K112851
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-D0562-20-1
Date of Calibration: 18-Apr-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 2, and 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91K208943
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-D0562-140-1
Date of Calibration: 25-Apr-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1, and 4
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-D38YR-220-1
Date of Calibration: 21-Jun-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 3, and 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 5,968 22.2
90% 5,387 22.2
80% 4,510 22.2
70% 3,815 22.2
60% 3,284 22.2
50% 2,837 22.1
40% 2,484 22.1
30% 2,183 22.1
20% 1,895 22.1
10% 1,596 22.1
Active Idle 758 22.1
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 22.1 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     69,548,584
Calibration 2     69,581,336
Calibration 3     69,620,709
ssj_ops@calibrated=69,601,023
100% 99.7% 69,601,023 69,404,522
90% 90.0% 62,640,920 62,632,356
80% 80.0% 55,680,818 55,704,892
70% 70.0% 48,720,716 48,719,173
60% 60.0% 41,760,614 41,742,200
50% 50.0% 34,800,511 34,792,887
40% 40.0% 27,840,409 27,851,045
30% 30.0% 20,880,307 20,875,301
20% 20.0% 13,920,205 13,919,003
10% 10.0% 6,960,102 6,962,600
Active Idle   0 0

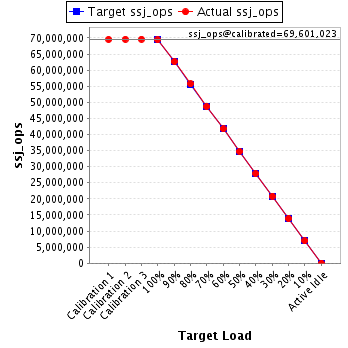

Graph of results
