Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module SPECpower_ssj2008 = 11,021 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Apr 10, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Apr 26, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 5,920 22.2
Calibration 2 5,976 22.4
Calibration 3 5,982 22.4
100% 5,968 22.2
90% 5,387 22.2
80% 4,510 22.2
70% 3,815 22.2
60% 3,284 22.2
50% 2,837 22.1
40% 2,484 22.1
30% 2,183 22.1
20% 1,895 22.1
10% 1,596 22.1
Active Idle 758 22.1
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91K112851
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-D0562-20-1
Date of Calibration: 18-Apr-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 2, and 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91K208943
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-D0562-140-1
Date of Calibration: 25-Apr-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1, and 4
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-D38YR-220-1
Date of Calibration: 21-Jun-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 3, and 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 210 300.0 9.32 10.0 0.996 1,947 0.3%
Calibration 2 210 300.0 9.38 10.0 0.996 1,958 0.3%
Calibration 3 210 300.0 9.39 10.0 0.996 1,960 0.3%
100% 210 300.0 9.36 10.0 0.996 1,954 0.3%
90% 210 300.0 8.51 10.0 0.995 1,776 0.3%
80% 210 300.0 7.17 10.0 0.993 1,496 0.4%
70% 210 300.0 5.99 10.0 0.991 1,248 0.4%
60% 211 300.0 5.12 5.0 0.988 1,066 0.3%
50% 211 300.0 4.44 5.0 0.984 922 0.3%
40% 211 300.0 3.92 5.0 0.979 809 0.4%
30% 211 300.0 3.48 5.0 0.974 714 0.4%
20% 211 300.0 3.01 5.0 0.966 613 0.4%
10% 211 300.0 2.57 5.0 0.952 515 0.5%
Active Idle 211 300.0 1.40 2.0 0.831 245 0.5%

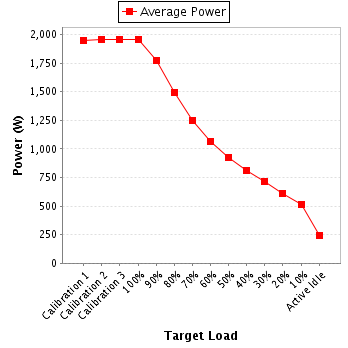

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 9.27 10.0 0.995 1,963 0.3%
Calibration 2 213 300.0 9.42 10.0 0.995 1,994 0.3%
Calibration 3 213 300.0 9.41 10.0 0.995 1,993 0.3%
100% 213 300.0 9.38 10.0 0.995 1,985 0.3%
90% 213 300.0 8.46 10.0 0.995 1,790 0.3%
80% 213 300.0 7.11 10.0 0.992 1,503 0.4%
70% 213 300.0 6.01 10.0 0.990 1,269 0.4%
60% 214 300.0 5.21 5.0 0.986 1,098 0.3%
50% 214 300.0 4.51 5.0 0.982 948 0.3%
40% 214 300.0 3.98 5.0 0.976 832 0.4%
30% 214 300.0 3.52 5.0 0.970 730 0.4%
20% 214 300.0 3.10 5.0 0.962 638 0.4%
10% 214 300.0 2.62 5.0 0.944 529 0.5%
Active Idle 214 300.0 1.43 2.0 0.805 246 0.5%
Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 9.52 10.0 0.996 2,010 0.3%
Calibration 2 212 300.0 9.59 10.0 0.996 2,024 0.3%
Calibration 3 212 300.0 9.60 10.0 0.996 2,028 0.3%
100% 212 300.0 9.60 10.0 0.996 2,028 0.3%
90% 212 300.0 8.62 10.0 0.996 1,820 0.3%
80% 212 300.0 7.16 10.0 0.993 1,511 0.4%
70% 213 300.0 6.15 10.0 0.992 1,297 0.4%
60% 213 300.0 5.32 5.0 0.989 1,121 0.3%
50% 213 300.0 4.60 5.0 0.985 967 0.3%
40% 213 300.0 4.03 5.0 0.980 843 0.4%
30% 214 300.0 3.56 5.0 0.974 740 0.4%
20% 214 300.0 3.12 5.0 0.966 644 0.4%
10% 214 300.0 2.71 5.0 0.954 552 0.5%
Active Idle 214 300.0 1.50 2.0 0.832 267 0.5%
Power details for pwr3
