Hewlett Packard Enterprise ProLiant DL385 Gen10 ssj_ops@100% = 4,295,252
ssj_ops@100% per JVM = 268,453
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 16, 2018
Hardware Availability: Jan-2018 Software Availability: Oct-2017 Publication: May 1, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,301,156
Calibration 2     4,303,561
Calibration 3     4,300,393
ssj_ops@calibrated=4,301,977
100% 99.8% 4,301,977 4,295,252
90% 89.9% 3,871,779 3,866,000
80% 79.8% 3,441,581 3,433,541
70% 69.9% 3,011,384 3,009,106
60% 60.0% 2,581,186 2,580,804
50% 49.9% 2,150,988 2,148,432
40% 40.0% 1,720,791 1,720,665
30% 30.0% 1,290,593 1,290,277
20% 20.0% 860,395 859,238
10% 10.0% 430,198 430,149
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL385 Gen10
Form Factor: 2U
CPU Name: AMD EPYC 7601 2.20 GHz
CPU Characteristics: 32-Core, 2.20GHz 64MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 64 MB I+D on chip per core
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 16 x 8192 MB
Memory Details: 8GB 1Rx8 PC4-2666V-R slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (865438-B21)
Disk Drive: 1 x HPE 480GB SATA M.2 (880877-B21)
Disk Controller: embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 4-port 331i Adapter
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: 1 x HPE High Performance Fan kit (867810-B21)
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx6656m -Xms6656m -Xmn4500m -XX:SurvivorRatio=15 -XX:InlineSmallCode=8000 -XX:FreqInlineSize=8000 -XX:+UseLargePages -XX:+UseBiasedLocking -XX:ParallelGCThreads=8 -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+OptimizeStringConcat -XX:AllocatePrefetchLines=7 -XX:MaxInlineSize=80 -XX:LoopUnrollLimit=30 -XX:AllocatePrefetchDistance=192 -XX:InitialTenuringThreshold=10
JVM Affinity: start /NODE[0,1,2,3,4,5,6,7] /AFFINITY [0xFF, 0xFF00]
JVM Instances: 16
JVM Initial Heap (MB): 6656
JVM Maximum Heap (MB): 6656
JVM Address Bits: 64
Boot Firmware Version: A40 v1.20 (01/12/2018)
Management Firmware Version: 1.20 Dec 15 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version 2017.10.1, Microsoft kb4025334
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-3DG6L1BR1VR.001 266,486
WIN-3DG6L1BR1VR.002 272,031
WIN-3DG6L1BR1VR.003 271,756
WIN-3DG6L1BR1VR.004 265,211
WIN-3DG6L1BR1VR.005 271,082
WIN-3DG6L1BR1VR.006 269,470
WIN-3DG6L1BR1VR.007 262,138
WIN-3DG6L1BR1VR.008 261,301
WIN-3DG6L1BR1VR.009 275,366
WIN-3DG6L1BR1VR.010 268,690
WIN-3DG6L1BR1VR.011 267,838
WIN-3DG6L1BR1VR.012 268,895
WIN-3DG6L1BR1VR.013 264,907
WIN-3DG6L1BR1VR.014 272,203
WIN-3DG6L1BR1VR.015 275,583
WIN-3DG6L1BR1VR.016 262,295
ssj_ops@100% 4,295,252
ssj_ops@100% per JVM 268,453
Graph of per-instance results
JVM 'WIN-3DG6L1BR1VR.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     266,844
Calibration 2     265,451
Calibration 3     267,004
ssj_ops@calibrated=266,227
100% 100.1% 266,227 266,486
90% 90.0% 239,604 239,503
80% 80.2% 212,982 213,523
70% 70.1% 186,359 186,541
60% 60.2% 159,736 160,198
50% 50.1% 133,114 133,490
40% 40.0% 106,491 106,473
30% 30.0% 79,868 79,952
20% 19.9% 53,245 52,935
10% 10.0% 26,623 26,571
Active Idle   0 0
Graph of results

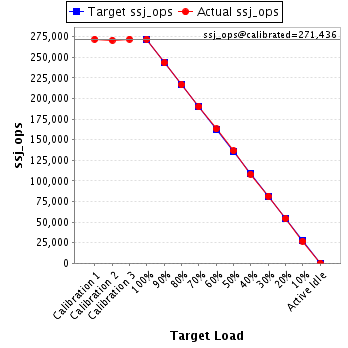

JVM 'WIN-3DG6L1BR1VR.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     271,936
Calibration 2     270,790
Calibration 3     272,083
ssj_ops@calibrated=271,436
100% 100.2% 271,436 272,031
90% 89.7% 244,293 243,509
80% 79.9% 217,149 216,806
70% 70.1% 190,005 190,194
60% 60.1% 162,862 163,030
50% 50.3% 135,718 136,499
40% 39.8% 108,574 108,059
30% 30.0% 81,431 81,473
20% 19.9% 54,287 54,121
10% 9.9% 27,144 26,912
Active Idle   0 0
Graph of results
JVM 'WIN-3DG6L1BR1VR.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     271,698
Calibration 2     271,229
Calibration 3     270,666
ssj_ops@calibrated=270,947
100% 100.3% 270,947 271,756
90% 89.2% 243,853 241,710
80% 79.7% 216,758 216,042
70% 70.5% 189,663 190,953
60% 59.7% 162,568 161,794
50% 49.9% 135,474 135,210
40% 39.8% 108,379 107,723
30% 29.8% 81,284 80,695
20% 20.0% 54,189 54,278
10% 10.2% 27,095 27,504
Active Idle   0 0
Graph of results
JVM 'WIN-3DG6L1BR1VR.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     265,410
Calibration 2     265,188
Calibration 3     265,596
ssj_ops@calibrated=265,392
100% 99.9% 265,392 265,211
90% 89.1% 238,853 236,550
80% 79.6% 212,314 211,326
70% 69.9% 185,775 185,481
60% 60.0% 159,235 159,196
50% 50.1% 132,696 133,044
40% 40.6% 106,157 107,812
30% 29.7% 79,618 78,734
20% 20.0% 53,078 52,982
10% 9.7% 26,539 25,645
Active Idle   0 0
Graph of results
JVM 'WIN-3DG6L1BR1VR.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     272,631
Calibration 2     270,889
Calibration 3     271,624
ssj_ops@calibrated=271,256
100% 99.9% 271,256 271,082
90% 90.2% 244,131 244,540
80% 79.6% 217,005 215,844
70% 69.7% 189,879 188,993
60% 59.9% 162,754 162,404
50% 49.5% 135,628 134,275
40% 39.7% 108,503 107,602
30% 29.9% 81,377 81,090
20% 19.9% 54,251 53,921
10% 10.0% 27,126 27,024
Active Idle   0 0
Graph of results
JVM 'WIN-3DG6L1BR1VR.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     270,399
Calibration 2     272,355
Calibration 3     271,058
ssj_ops@calibrated=271,707
100% 99.2% 271,707 269,470
90% 90.1% 244,536 244,827
80% 79.5% 217,366 215,957
70% 70.1% 190,195 190,441
60% 60.3% 163,024 163,914
50% 49.9% 135,853 135,687
40% 39.8% 108,683 108,126
30% 30.3% 81,512 82,436
20% 19.9% 54,341 54,032
10% 9.9% 27,171 26,908
Active Idle   0 0
Graph of results
JVM 'WIN-3DG6L1BR1VR.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     263,693
Calibration 2     262,873
Calibration 3     262,414
ssj_ops@calibrated=262,643
100% 99.8% 262,643 262,138
90% 90.5% 236,379 237,600
80% 79.9% 210,115 209,820
70% 70.0% 183,850 183,900
60% 59.5% 157,586 156,332
50% 49.8% 131,322 130,909
40% 39.8% 105,057 104,657
30% 29.6% 78,793 77,708
20% 19.9% 52,529 52,303
10% 10.1% 26,264 26,496
Active Idle   0 0
Graph of results
JVM 'WIN-3DG6L1BR1VR.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     260,117
Calibration 2     261,712
Calibration 3     261,783
ssj_ops@calibrated=261,747
100% 99.8% 261,747 261,301
90% 89.7% 235,573 234,659
80% 80.2% 209,398 209,921
70% 70.1% 183,223 183,420
60% 59.6% 157,048 156,029
50% 49.9% 130,874 130,488
40% 40.2% 104,699 105,335
30% 30.3% 78,524 79,194
20% 19.9% 52,349 52,199
10% 10.0% 26,175 26,183
Active Idle   0 0
Graph of results
JVM 'WIN-3DG6L1BR1VR.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     278,012
Calibration 2     278,220
Calibration 3     277,829
ssj_ops@calibrated=278,024
100% 99.0% 278,024 275,366
90% 89.7% 250,222 249,411
80% 80.0% 222,419 222,326
70% 69.9% 194,617 194,204
60% 59.7% 166,815 166,040
50% 49.6% 139,012 137,971
40% 40.2% 111,210 111,788
30% 30.2% 83,407 84,069
20% 20.2% 55,605 56,189
10% 10.0% 27,802 27,874
Active Idle   0 0
Graph of results
JVM 'WIN-3DG6L1BR1VR.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     269,888
Calibration 2     269,545
Calibration 3     269,288
ssj_ops@calibrated=269,416
100% 99.7% 269,416 268,690
90% 90.4% 242,475 243,510
80% 79.6% 215,533 214,363
70% 70.2% 188,592 189,063
60% 60.3% 161,650 162,552
50% 49.9% 134,708 134,462
40% 39.9% 107,767 107,587
30% 30.2% 80,825 81,360
20% 20.0% 53,883 53,901
10% 10.2% 26,942 27,487
Active Idle   0 0
Graph of results
JVM 'WIN-3DG6L1BR1VR.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     267,300
Calibration 2     268,894
Calibration 3     267,442
ssj_ops@calibrated=268,168
100% 99.9% 268,168 267,838
90% 90.1% 241,351 241,500
80% 79.5% 214,534 213,172
70% 70.3% 187,717 188,593
60% 60.0% 160,901 161,013
50% 50.2% 134,084 134,683
40% 40.2% 107,267 107,702
30% 30.2% 80,450 81,113
20% 20.2% 53,634 54,133
10% 9.9% 26,817 26,649
Active Idle   0 0
Graph of results
JVM 'WIN-3DG6L1BR1VR.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     270,263
Calibration 2     269,378
Calibration 3     269,236
ssj_ops@calibrated=269,307
100% 99.8% 269,307 268,895
90% 89.5% 242,377 241,160
80% 79.3% 215,446 213,593
70% 69.2% 188,515 186,436
60% 60.5% 161,584 162,970
50% 50.0% 134,654 134,774
40% 40.2% 107,723 108,175
30% 29.7% 80,792 80,073
20% 19.9% 53,861 53,671
10% 9.9% 26,931 26,611
Active Idle   0 0
Graph of results

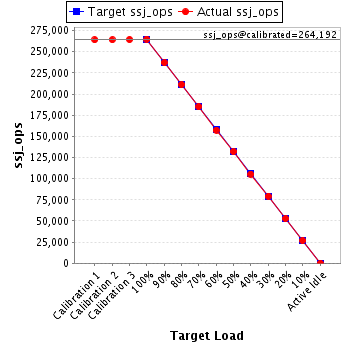

JVM 'WIN-3DG6L1BR1VR.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     264,048
Calibration 2     264,043
Calibration 3     264,341
ssj_ops@calibrated=264,192
100% 100.3% 264,192 264,907
90% 89.8% 237,773 237,148
80% 79.9% 211,354 210,996
70% 70.1% 184,935 185,089
60% 59.6% 158,515 157,360
50% 50.0% 132,096 132,123
40% 39.9% 105,677 105,485
30% 30.0% 79,258 79,380
20% 19.9% 52,838 52,693
10% 10.2% 26,419 26,933
Active Idle   0 0
Graph of results
JVM 'WIN-3DG6L1BR1VR.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     271,987
Calibration 2     272,593
Calibration 3     272,500
ssj_ops@calibrated=272,547
100% 99.9% 272,547 272,203
90% 90.2% 245,292 245,777
80% 79.9% 218,038 217,686
70% 69.5% 190,783 189,352
60% 60.2% 163,528 164,174
50% 49.9% 136,273 136,001
40% 39.9% 109,019 108,817
30% 30.0% 81,764 81,779
20% 20.1% 54,509 54,680
10% 10.0% 27,255 27,242
Active Idle   0 0
Graph of results
JVM 'WIN-3DG6L1BR1VR.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     274,213
Calibration 2     276,315
Calibration 3     275,364
ssj_ops@calibrated=275,840
100% 99.9% 275,840 275,583
90% 89.8% 248,256 247,662
80% 80.1% 220,672 221,078
70% 70.0% 193,088 193,105
60% 59.9% 165,504 165,335
50% 49.6% 137,920 136,915
40% 39.8% 110,336 109,855
30% 30.0% 82,752 82,647
20% 19.9% 55,168 54,755
10% 10.2% 27,584 28,016
Active Idle   0 0
Graph of results
JVM 'WIN-3DG6L1BR1VR.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     262,717
Calibration 2     264,086
Calibration 3     262,164
ssj_ops@calibrated=263,125
100% 99.7% 263,125 262,295
90% 90.0% 236,813 236,935
80% 80.2% 210,500 211,089
70% 69.7% 184,188 183,339
60% 60.2% 157,875 158,463
50% 50.1% 131,563 131,901
40% 40.1% 105,250 105,471
30% 29.9% 78,938 78,573
20% 19.9% 52,625 52,445
10% 9.9% 26,313 26,094
Active Idle   0 0
Graph of results
