Fujitsu FUJITSU Server PRIMERGY RX4770 M4 ssj_ops@100% = 10,419,443
ssj_ops@100% per JVM = 93,031
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Oct 11, 2017
Hardware Availability: Jan-2018 Software Availability: Jan-2015 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     10,439,272
Calibration 2     10,421,726
Calibration 3     10,441,675
ssj_ops@calibrated=10,431,701
100% 99.9% 10,431,701 10,419,443
90% 89.9% 9,388,531 9,382,151
80% 80.1% 8,345,361 8,351,735
70% 70.0% 7,302,190 7,300,332
60% 60.0% 6,259,020 6,259,308
50% 50.0% 5,215,850 5,213,836
40% 40.0% 4,172,680 4,175,025
30% 30.0% 3,129,510 3,134,266
20% 20.0% 2,086,340 2,090,048
10% 10.0% 1,043,170 1,042,202
Active Idle   0 0
Graph of results
System Under Test
Set: 'RX4770 M4'
Set Identifier: RX4770 M4
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX4770 M4
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176M
CPU Characteristics: 28-Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 24 x 8192 MB
Memory Details: 24 x 8 GB DDR4, registered, ECC, 2666 MHz, PC4-2666V, DIMM, 2Rx8; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R, 1S, 1T, 1U, 1V, 1W, 1X, 1Y, 1Z populated
Power Supply Quantity and Rating (W): 1 x 1600
Power Supply Details: Standard power supply part of base unit S26361-K1587-V100
Disk Drive: 1 x SSD M.2 SATA 6Gbps 150GB N H-P, S26361-F5656-L150
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x PLAN EM 4 x 1Gb T OCP(Dynamic LOM), S26361-F3953-E401
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1400m -Xmx1400m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2,4,6] /AFFINTY 0x3,0xC,0x30,0xC0,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000 /NODE [1,3,5,7] /AFFINTY 0x3,0xC,0x30,0x3000,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000
JVM Instances: 112
JVM Initial Heap (MB): 1400
JVM Maximum Heap (MB): 1400
JVM Address Bits: 64
Boot Firmware Version: R1.3.0
Management Firmware Version: 1.10P
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
RX4770M4.001 91,552
RX4770M4.002 93,630
RX4770M4.003 93,762
RX4770M4.004 92,953
RX4770M4.005 93,264
RX4770M4.006 93,855
RX4770M4.007 91,694
RX4770M4.008 93,197
RX4770M4.009 92,422
RX4770M4.010 91,943
RX4770M4.011 93,423
RX4770M4.012 92,823
RX4770M4.013 92,753
RX4770M4.014 94,269
RX4770M4.015 91,467
RX4770M4.016 93,353
RX4770M4.017 92,808
RX4770M4.018 91,798
RX4770M4.019 92,872
RX4770M4.020 91,003
RX4770M4.021 93,225
RX4770M4.022 91,950
RX4770M4.023 92,941
RX4770M4.024 94,436
RX4770M4.025 95,448
RX4770M4.026 94,032
RX4770M4.027 93,115
RX4770M4.028 94,140
RX4770M4.029 94,779
RX4770M4.030 91,150
RX4770M4.031 93,063
RX4770M4.032 90,982
RX4770M4.033 91,422
RX4770M4.034 92,541
RX4770M4.035 93,380
RX4770M4.036 92,707
RX4770M4.037 91,393
RX4770M4.038 91,599
RX4770M4.039 94,299
RX4770M4.040 91,379
RX4770M4.041 95,043
RX4770M4.042 94,399
RX4770M4.043 94,104
RX4770M4.044 93,415
RX4770M4.045 92,220
RX4770M4.046 93,127
RX4770M4.047 91,482
RX4770M4.048 92,353
RX4770M4.049 93,491
RX4770M4.050 91,324
RX4770M4.051 92,527
RX4770M4.052 93,749
RX4770M4.053 96,720
RX4770M4.054 94,472
RX4770M4.055 91,941
RX4770M4.056 94,435
RX4770M4.057 92,960
RX4770M4.058 93,228
RX4770M4.059 94,030
RX4770M4.060 93,272
RX4770M4.061 93,180
RX4770M4.062 93,862
RX4770M4.063 93,405
RX4770M4.064 92,947
RX4770M4.065 93,686
RX4770M4.066 91,661
RX4770M4.067 92,283
RX4770M4.068 93,216
RX4770M4.069 94,710
RX4770M4.070 95,105
RX4770M4.071 91,771
RX4770M4.072 92,700
RX4770M4.073 91,487
RX4770M4.074 93,423
RX4770M4.075 93,599
RX4770M4.076 94,131
RX4770M4.077 93,027
RX4770M4.078 91,197
RX4770M4.079 93,847
RX4770M4.080 92,411
RX4770M4.081 93,920
RX4770M4.082 94,233
RX4770M4.083 93,299
RX4770M4.084 92,225
RX4770M4.085 93,223
RX4770M4.086 93,344
RX4770M4.087 94,351
RX4770M4.088 93,319
RX4770M4.089 93,389
RX4770M4.090 93,395
RX4770M4.091 92,494
RX4770M4.092 94,031
RX4770M4.093 93,621
RX4770M4.094 92,400
RX4770M4.095 94,503
RX4770M4.096 93,842
RX4770M4.097 93,772
RX4770M4.098 89,958
RX4770M4.099 92,537
RX4770M4.100 92,812
RX4770M4.101 94,463
RX4770M4.102 91,855
RX4770M4.103 91,699
RX4770M4.104 93,492
RX4770M4.105 92,305
RX4770M4.106 92,574
RX4770M4.107 94,937
RX4770M4.108 92,486
RX4770M4.109 94,921
RX4770M4.110 91,765
RX4770M4.111 92,517
RX4770M4.112 89,004
ssj_ops@100% 10,419,443
ssj_ops@100% per JVM 93,031

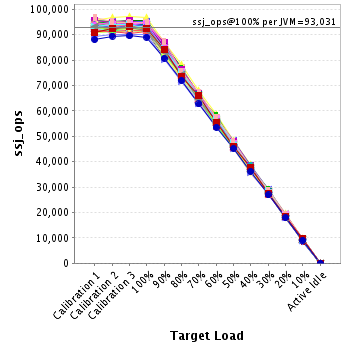

Graph of per-instance results
JVM 'RX4770M4.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,695
Calibration 2     91,661
Calibration 3     91,481
ssj_ops@calibrated=91,571
100% 100.0% 91,571 91,552
90% 89.8% 82,414 82,258
80% 79.3% 73,257 72,632
70% 70.4% 64,100 64,458
60% 58.8% 54,943 53,880
50% 50.3% 45,786 46,066
40% 40.5% 36,629 37,102
30% 30.3% 27,471 27,715
20% 20.4% 18,314 18,724
10% 10.1% 9,157 9,245
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,413
Calibration 2     93,319
Calibration 3     93,334
ssj_ops@calibrated=93,326
100% 100.3% 93,326 93,630
90% 89.6% 83,994 83,617
80% 79.4% 74,661 74,088
70% 70.3% 65,328 65,564
60% 60.1% 55,996 56,074
50% 49.9% 46,663 46,541
40% 39.8% 37,331 37,179
30% 30.0% 27,998 28,033
20% 19.9% 18,665 18,545
10% 9.7% 9,333 9,095
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,215
Calibration 2     93,906
Calibration 3     94,467
ssj_ops@calibrated=94,187
100% 99.5% 94,187 93,762
90% 90.7% 84,768 85,418
80% 79.7% 75,349 75,080
70% 69.3% 65,931 65,290
60% 60.0% 56,512 56,505
50% 49.2% 47,093 46,372
40% 40.0% 37,675 37,665
30% 30.2% 28,256 28,465
20% 19.7% 18,837 18,590
10% 10.0% 9,419 9,428
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,726
Calibration 2     93,133
Calibration 3     93,158
ssj_ops@calibrated=93,145
100% 99.8% 93,145 92,953
90% 90.6% 83,831 84,369
80% 80.7% 74,516 75,188
70% 70.8% 65,202 65,963
60% 60.1% 55,887 55,993
50% 50.5% 46,573 47,007
40% 39.8% 37,258 37,096
30% 29.9% 27,944 27,848
20% 19.8% 18,629 18,459
10% 10.0% 9,315 9,320
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,052
Calibration 2     92,920
Calibration 3     93,317
ssj_ops@calibrated=93,118
100% 100.2% 93,118 93,264
90% 90.7% 83,806 84,415
80% 80.3% 74,495 74,781
70% 70.7% 65,183 65,802
60% 60.3% 55,871 56,147
50% 49.0% 46,559 45,665
40% 40.1% 37,247 37,322
30% 30.1% 27,935 28,069
20% 19.9% 18,624 18,525
10% 10.2% 9,312 9,513
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,715
Calibration 2     93,962
Calibration 3     93,692
ssj_ops@calibrated=93,827
100% 100.0% 93,827 93,855
90% 90.7% 84,445 85,066
80% 79.6% 75,062 74,723
70% 69.5% 65,679 65,244
60% 60.2% 56,296 56,519
50% 50.1% 46,914 47,039
40% 40.3% 37,531 37,768
30% 30.3% 28,148 28,395
20% 19.9% 18,765 18,679
10% 9.9% 9,383 9,258
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,223
Calibration 2     91,162
Calibration 3     91,260
ssj_ops@calibrated=91,211
100% 100.5% 91,211 91,694
90% 89.3% 82,090 81,483
80% 80.3% 72,969 73,207
70% 70.8% 63,848 64,534
60% 60.0% 54,727 54,682
50% 49.5% 45,605 45,130
40% 38.9% 36,484 35,471
30% 30.0% 27,363 27,390
20% 20.0% 18,242 18,270
10% 9.7% 9,121 8,865
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,649
Calibration 2     92,972
Calibration 3     93,196
ssj_ops@calibrated=93,084
100% 100.1% 93,084 93,197
90% 89.5% 83,776 83,348
80% 80.3% 74,467 74,727
70% 71.1% 65,159 66,148
60% 60.3% 55,851 56,100
50% 50.1% 46,542 46,589
40% 40.6% 37,234 37,829
30% 30.5% 27,925 28,396
20% 20.0% 18,617 18,658
10% 9.8% 9,308 9,151
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,082
Calibration 2     92,892
Calibration 3     92,775
ssj_ops@calibrated=92,834
100% 99.6% 92,834 92,422
90% 90.9% 83,550 84,367
80% 79.4% 74,267 73,746
70% 70.4% 64,983 65,343
60% 59.3% 55,700 55,058
50% 49.6% 46,417 46,018
40% 40.3% 37,133 37,405
30% 29.5% 27,850 27,430
20% 19.8% 18,567 18,373
10% 9.4% 9,283 8,766
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,105
Calibration 2     91,499
Calibration 3     91,861
ssj_ops@calibrated=91,680
100% 100.3% 91,680 91,943
90% 89.4% 82,512 81,942
80% 80.5% 73,344 73,833
70% 69.2% 64,176 63,422
60% 59.3% 55,008 54,389
50% 50.5% 45,840 46,302
40% 40.3% 36,672 36,929
30% 30.9% 27,504 28,313
20% 19.9% 18,336 18,204
10% 10.4% 9,168 9,529
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,216
Calibration 2     93,415
Calibration 3     93,621
ssj_ops@calibrated=93,518
100% 99.9% 93,518 93,423
90% 90.0% 84,166 84,129
80% 80.0% 74,814 74,811
70% 69.8% 65,463 65,241
60% 61.0% 56,111 57,029
50% 50.4% 46,759 47,121
40% 39.8% 37,407 37,199
30% 30.2% 28,055 28,269
20% 20.5% 18,704 19,185
10% 10.5% 9,352 9,775
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,969
Calibration 2     93,054
Calibration 3     92,727
ssj_ops@calibrated=92,891
100% 99.9% 92,891 92,823
90% 90.9% 83,602 84,419
80% 80.1% 74,313 74,392
70% 70.3% 65,024 65,312
60% 59.5% 55,734 55,262
50% 49.5% 46,445 46,026
40% 40.1% 37,156 37,205
30% 30.3% 27,867 28,191
20% 20.0% 18,578 18,559
10% 10.3% 9,289 9,608
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,720
Calibration 2     94,071
Calibration 3     94,098
ssj_ops@calibrated=94,084
100% 98.6% 94,084 92,753
90% 90.2% 84,676 84,854
80% 79.4% 75,268 74,657
70% 69.1% 65,859 64,977
60% 60.5% 56,451 56,909
50% 49.5% 47,042 46,603
40% 39.8% 37,634 37,409
30% 30.2% 28,225 28,448
20% 19.8% 18,817 18,656
10% 9.9% 9,408 9,275
Active Idle   0 0

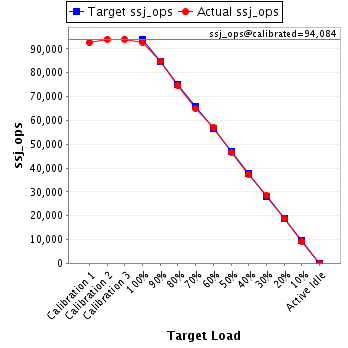

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,824
Calibration 2     94,256
Calibration 3     94,428
ssj_ops@calibrated=94,342
100% 99.9% 94,342 94,269
90% 89.8% 84,908 84,753
80% 80.6% 75,474 76,003
70% 70.3% 66,039 66,318
60% 60.2% 56,605 56,779
50% 50.0% 47,171 47,154
40% 39.7% 37,737 37,437
30% 29.7% 28,303 27,988
20% 20.0% 18,868 18,898
10% 10.0% 9,434 9,462
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,135
Calibration 2     91,374
Calibration 3     91,506
ssj_ops@calibrated=91,440
100% 100.0% 91,440 91,467
90% 88.7% 82,296 81,128
80% 81.1% 73,152 74,169
70% 69.1% 64,008 63,166
60% 59.9% 54,864 54,738
50% 50.4% 45,720 46,123
40% 40.2% 36,576 36,745
30% 30.1% 27,432 27,523
20% 19.4% 18,288 17,750
10% 10.3% 9,144 9,450
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,345
Calibration 2     93,223
Calibration 3     93,566
ssj_ops@calibrated=93,395
100% 100.0% 93,395 93,353
90% 89.1% 84,055 83,243
80% 79.6% 74,716 74,336
70% 70.6% 65,376 65,938
60% 59.6% 56,037 55,705
50% 50.2% 46,697 46,905
40% 40.4% 37,358 37,727
30% 30.0% 28,018 27,976
20% 20.2% 18,679 18,831
10% 10.0% 9,339 9,374
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,030
Calibration 2     92,382
Calibration 3     92,700
ssj_ops@calibrated=92,541
100% 100.3% 92,541 92,808
90% 89.7% 83,287 82,987
80% 79.4% 74,033 73,449
70% 70.4% 64,779 65,161
60% 59.7% 55,525 55,276
50% 49.8% 46,271 46,123
40% 39.8% 37,017 36,854
30% 30.3% 27,762 27,995
20% 19.8% 18,508 18,309
10% 10.4% 9,254 9,596
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,945
Calibration 2     91,428
Calibration 3     91,485
ssj_ops@calibrated=91,457
100% 100.4% 91,457 91,798
90% 90.6% 82,311 82,904
80% 79.6% 73,165 72,822
70% 69.6% 64,020 63,621
60% 60.2% 54,874 55,096
50% 50.0% 45,728 45,711
40% 40.6% 36,583 37,121
30% 30.0% 27,437 27,436
20% 19.9% 18,291 18,238
10% 10.2% 9,146 9,370
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,410
Calibration 2     93,258
Calibration 3     93,247
ssj_ops@calibrated=93,253
100% 99.6% 93,253 92,872
90% 90.0% 83,927 83,899
80% 79.9% 74,602 74,510
70% 69.1% 65,277 64,401
60% 60.4% 55,952 56,329
50% 50.2% 46,626 46,847
40% 39.9% 37,301 37,175
30% 29.9% 27,976 27,837
20% 20.2% 18,651 18,807
10% 9.8% 9,325 9,185
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,878
Calibration 2     90,296
Calibration 3     92,657
ssj_ops@calibrated=91,477
100% 99.5% 91,477 91,003
90% 90.8% 82,329 83,066
80% 80.3% 73,182 73,413
70% 70.1% 64,034 64,123
60% 60.3% 54,886 55,186
50% 49.9% 45,738 45,602
40% 40.8% 36,591 37,310
30% 30.0% 27,443 27,477
20% 20.3% 18,295 18,608
10% 10.1% 9,148 9,224
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,795
Calibration 2     92,652
Calibration 3     93,646
ssj_ops@calibrated=93,149
100% 100.1% 93,149 93,225
90% 90.8% 83,834 84,563
80% 79.6% 74,519 74,142
70% 70.2% 65,204 65,410
60% 59.9% 55,889 55,842
50% 50.5% 46,574 47,015
40% 39.7% 37,260 36,941
30% 29.3% 27,945 27,287
20% 19.8% 18,630 18,466
10% 9.8% 9,315 9,158
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,688
Calibration 2     92,569
Calibration 3     91,736
ssj_ops@calibrated=92,153
100% 99.8% 92,153 91,950
90% 89.1% 82,937 82,097
80% 80.5% 73,722 74,189
70% 70.1% 64,507 64,572
60% 59.9% 55,292 55,166
50% 50.1% 46,076 46,148
40% 41.0% 36,861 37,798
30% 30.0% 27,646 27,643
20% 19.7% 18,431 18,179
10% 10.1% 9,215 9,279
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,569
Calibration 2     92,526
Calibration 3     92,045
ssj_ops@calibrated=92,286
100% 100.7% 92,286 92,941
90% 89.6% 83,057 82,722
80% 78.6% 73,829 72,538
70% 69.4% 64,600 64,024
60% 60.3% 55,371 55,642
50% 49.7% 46,143 45,878
40% 40.4% 36,914 37,283
30% 30.9% 27,686 28,513
20% 19.5% 18,457 18,016
10% 10.0% 9,229 9,233
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,372
Calibration 2     94,801
Calibration 3     95,275
ssj_ops@calibrated=95,038
100% 99.4% 95,038 94,436
90% 90.7% 85,534 86,156
80% 80.5% 76,030 76,489
70% 70.4% 66,527 66,933
60% 60.0% 57,023 56,995
50% 49.1% 47,519 46,656
40% 40.3% 38,015 38,259
30% 30.5% 28,511 28,968
20% 19.9% 19,008 18,885
10% 10.2% 9,504 9,673
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

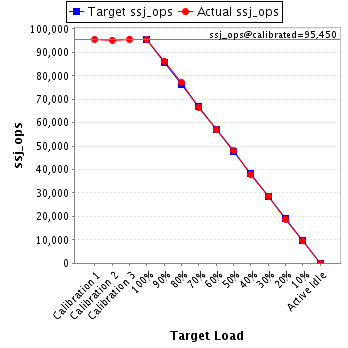

JVM 'RX4770M4.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,641
Calibration 2     95,244
Calibration 3     95,656
ssj_ops@calibrated=95,450
100% 100.0% 95,450 95,448
90% 90.3% 85,905 86,199
80% 81.0% 76,360 77,276
70% 69.8% 66,815 66,636
60% 59.7% 57,270 56,956
50% 50.2% 47,725 47,929
40% 39.8% 38,180 37,994
30% 30.0% 28,635 28,664
20% 19.8% 19,090 18,891
10% 10.0% 9,545 9,528
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,516
Calibration 2     94,332
Calibration 3     94,509
ssj_ops@calibrated=94,421
100% 99.6% 94,421 94,032
90% 90.2% 84,979 85,140
80% 79.6% 75,536 75,132
70% 70.2% 66,094 66,249
60% 59.9% 56,652 56,603
50% 49.3% 47,210 46,562
40% 39.5% 37,768 37,324
30% 29.9% 28,326 28,249
20% 19.7% 18,884 18,622
10% 9.8% 9,442 9,237
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,620
Calibration 2     93,197
Calibration 3     93,033
ssj_ops@calibrated=93,115
100% 100.0% 93,115 93,115
90% 89.5% 83,803 83,358
80% 80.7% 74,492 75,166
70% 69.8% 65,180 65,020
60% 60.2% 55,869 56,045
50% 50.2% 46,557 46,759
40% 39.9% 37,246 37,178
30% 30.2% 27,934 28,154
20% 19.8% 18,623 18,434
10% 10.1% 9,311 9,391
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,448
Calibration 2     94,436
Calibration 3     93,863
ssj_ops@calibrated=94,150
100% 100.0% 94,150 94,140
90% 89.9% 84,735 84,683
80% 80.3% 75,320 75,571
70% 69.3% 65,905 65,264
60% 59.8% 56,490 56,309
50% 49.2% 47,075 46,353
40% 39.9% 37,660 37,552
30% 30.0% 28,245 28,218
20% 20.1% 18,830 18,943
10% 9.8% 9,415 9,191
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,811
Calibration 2     94,430
Calibration 3     94,950
ssj_ops@calibrated=94,690
100% 100.1% 94,690 94,779
90% 90.9% 85,221 86,058
80% 80.4% 75,752 76,086
70% 70.9% 66,283 67,149
60% 59.6% 56,814 56,431
50% 49.1% 47,345 46,456
40% 39.9% 37,876 37,818
30% 29.4% 28,407 27,863
20% 20.2% 18,938 19,116
10% 10.0% 9,469 9,445
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,436
Calibration 2     90,971
Calibration 3     91,234
ssj_ops@calibrated=91,103
100% 100.1% 91,103 91,150
90% 90.5% 81,992 82,477
80% 79.2% 72,882 72,111
70% 69.2% 63,772 63,053
60% 60.4% 54,662 55,018
50% 50.4% 45,551 45,903
40% 40.4% 36,441 36,794
30% 30.3% 27,331 27,586
20% 20.4% 18,221 18,588
10% 9.8% 9,110 8,927
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,709
Calibration 2     92,921
Calibration 3     93,339
ssj_ops@calibrated=93,130
100% 99.9% 93,130 93,063
90% 90.2% 83,817 84,014
80% 79.0% 74,504 73,547
70% 70.3% 65,191 65,474
60% 59.3% 55,878 55,252
50% 50.3% 46,565 46,834
40% 40.6% 37,252 37,822
30% 30.4% 27,939 28,281
20% 19.8% 18,626 18,453
10% 9.8% 9,313 9,087
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,989
Calibration 2     91,929
Calibration 3     91,919
ssj_ops@calibrated=91,924
100% 99.0% 91,924 90,982
90% 90.0% 82,732 82,759
80% 80.0% 73,539 73,517
70% 69.9% 64,347 64,249
60% 60.3% 55,154 55,474
50% 50.5% 45,962 46,408
40% 40.2% 36,770 36,963
30% 30.3% 27,577 27,829
20% 19.5% 18,385 17,887
10% 9.8% 9,192 8,970
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,775
Calibration 2     92,019
Calibration 3     92,596
ssj_ops@calibrated=92,308
100% 99.0% 92,308 91,422
90% 90.5% 83,077 83,493
80% 80.4% 73,846 74,218
70% 70.0% 64,615 64,655
60% 61.2% 55,385 56,476
50% 49.9% 46,154 46,105
40% 40.5% 36,923 37,402
30% 30.0% 27,692 27,651
20% 20.9% 18,462 19,337
10% 9.9% 9,231 9,140
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,556
Calibration 2     91,753
Calibration 3     92,694
ssj_ops@calibrated=92,223
100% 100.3% 92,223 92,541
90% 90.5% 83,001 83,501
80% 80.4% 73,779 74,104
70% 69.3% 64,556 63,910
60% 60.3% 55,334 55,611
50% 50.1% 46,112 46,249
40% 40.2% 36,889 37,068
30% 29.6% 27,667 27,276
20% 20.0% 18,445 18,407
10% 10.3% 9,222 9,503
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,977
Calibration 2     93,362
Calibration 3     93,717
ssj_ops@calibrated=93,540
100% 99.8% 93,540 93,380
90% 89.6% 84,186 83,835
80% 80.5% 74,832 75,272
70% 69.3% 65,478 64,783
60% 60.1% 56,124 56,181
50% 49.5% 46,770 46,299
40% 39.9% 37,416 37,364
30% 30.1% 28,062 28,187
20% 19.7% 18,708 18,383
10% 10.0% 9,354 9,375
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,936
Calibration 2     92,557
Calibration 3     92,817
ssj_ops@calibrated=92,687
100% 100.0% 92,687 92,707
90% 89.3% 83,418 82,759
80% 79.0% 74,150 73,268
70% 69.1% 64,881 64,070
60% 59.0% 55,612 54,656
50% 50.9% 46,343 47,194
40% 40.3% 37,075 37,333
30% 29.6% 27,806 27,470
20% 20.1% 18,537 18,587
10% 9.9% 9,269 9,216
Active Idle   0 0

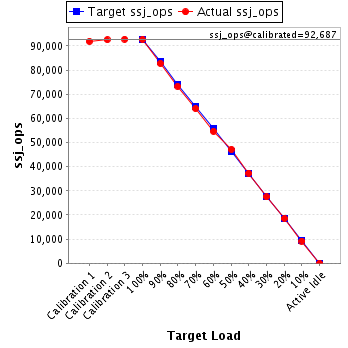

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,257
Calibration 2     91,425
Calibration 3     91,496
ssj_ops@calibrated=91,460
100% 99.9% 91,460 91,393
90% 89.9% 82,314 82,181
80% 79.9% 73,168 73,043
70% 71.1% 64,022 64,998
60% 60.1% 54,876 54,960
50% 49.9% 45,730 45,662
40% 40.5% 36,584 37,059
30% 30.1% 27,438 27,533
20% 19.7% 18,292 18,016
10% 10.0% 9,146 9,121
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,704
Calibration 2     91,236
Calibration 3     91,592
ssj_ops@calibrated=91,414
100% 100.2% 91,414 91,599
90% 89.5% 82,273 81,851
80% 80.7% 73,131 73,782
70% 70.7% 63,990 64,614
60% 60.2% 54,849 55,033
50% 49.5% 45,707 45,284
40% 39.2% 36,566 35,858
30% 30.4% 27,424 27,797
20% 20.1% 18,283 18,373
10% 10.2% 9,141 9,279
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,256
Calibration 2     93,467
Calibration 3     94,147
ssj_ops@calibrated=93,807
100% 100.5% 93,807 94,299
90% 91.2% 84,426 85,571
80% 80.4% 75,046 75,392
70% 69.9% 65,665 65,614
60% 59.9% 56,284 56,199
50% 50.0% 46,904 46,891
40% 39.5% 37,523 37,078
30% 30.5% 28,142 28,619
20% 19.7% 18,761 18,516
10% 10.3% 9,381 9,650
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,243
Calibration 2     92,538
Calibration 3     93,051
ssj_ops@calibrated=92,794
100% 98.5% 92,794 91,379
90% 89.9% 83,515 83,460
80% 79.8% 74,236 74,041
70% 69.5% 64,956 64,519
60% 60.2% 55,677 55,886
50% 49.5% 46,397 45,949
40% 39.4% 37,118 36,567
30% 29.9% 27,838 27,785
20% 20.1% 18,559 18,642
10% 9.7% 9,279 9,019
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

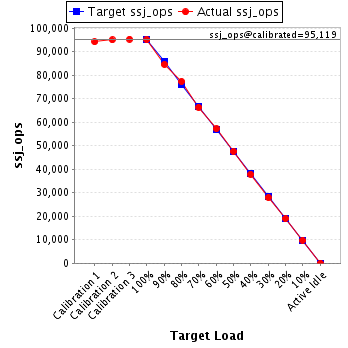

JVM 'RX4770M4.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,108
Calibration 2     94,954
Calibration 3     95,283
ssj_ops@calibrated=95,119
100% 99.9% 95,119 95,043
90% 88.9% 85,607 84,574
80% 81.2% 76,095 77,280
70% 69.7% 66,583 66,305
60% 60.1% 57,071 57,214
50% 50.1% 47,559 47,650
40% 39.7% 38,047 37,804
30% 29.3% 28,536 27,890
20% 19.9% 19,024 18,952
10% 10.3% 9,512 9,774
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,388
Calibration 2     94,358
Calibration 3     94,550
ssj_ops@calibrated=94,454
100% 99.9% 94,454 94,399
90% 90.0% 85,008 85,014
80% 79.5% 75,563 75,049
70% 69.9% 66,118 66,006
60% 60.0% 56,672 56,714
50% 50.2% 47,227 47,377
40% 40.5% 37,781 38,291
30% 30.2% 28,336 28,568
20% 19.6% 18,891 18,487
10% 10.1% 9,445 9,529
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,370
Calibration 2     93,913
Calibration 3     94,110
ssj_ops@calibrated=94,012
100% 100.1% 94,012 94,104
90% 89.9% 84,610 84,489
80% 79.9% 75,209 75,128
70% 69.4% 65,808 65,209
60% 59.3% 56,407 55,788
50% 49.6% 47,006 46,640
40% 40.4% 37,605 37,964
30% 30.0% 28,203 28,192
20% 19.8% 18,802 18,582
10% 9.8% 9,401 9,208
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

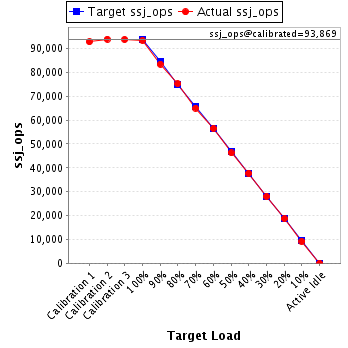

JVM 'RX4770M4.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,775
Calibration 2     93,929
Calibration 3     93,809
ssj_ops@calibrated=93,869
100% 99.5% 93,869 93,415
90% 88.9% 84,482 83,490
80% 80.2% 75,095 75,238
70% 69.3% 65,708 65,059
60% 60.2% 56,322 56,555
50% 49.3% 46,935 46,265
40% 40.2% 37,548 37,724
30% 29.9% 28,161 28,051
20% 19.9% 18,774 18,698
10% 9.8% 9,387 9,194
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,092
Calibration 2     92,224
Calibration 3     92,247
ssj_ops@calibrated=92,235
100% 100.0% 92,235 92,220
90% 89.7% 83,012 82,737
80% 79.7% 73,788 73,541
70% 70.5% 64,565 65,057
60% 59.9% 55,341 55,264
50% 50.1% 46,118 46,179
40% 40.4% 36,894 37,260
30% 30.3% 27,671 27,911
20% 19.9% 18,447 18,384
10% 10.1% 9,224 9,306
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,340
Calibration 2     93,160
Calibration 3     93,116
ssj_ops@calibrated=93,138
100% 100.0% 93,138 93,127
90% 90.6% 83,824 84,376
80% 79.4% 74,511 73,989
70% 70.0% 65,197 65,221
60% 59.6% 55,883 55,539
50% 50.4% 46,569 46,980
40% 40.5% 37,255 37,740
30% 30.6% 27,941 28,469
20% 19.6% 18,628 18,228
10% 10.0% 9,314 9,329
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,302
Calibration 2     91,727
Calibration 3     91,985
ssj_ops@calibrated=91,856
100% 99.6% 91,856 91,482
90% 89.6% 82,670 82,298
80% 81.4% 73,485 74,800
70% 69.0% 64,299 63,390
60% 60.0% 55,114 55,149
50% 50.2% 45,928 46,131
40% 40.5% 36,742 37,244
30% 30.0% 27,557 27,544
20% 19.8% 18,371 18,195
10% 9.7% 9,186 8,941
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,663
Calibration 2     91,700
Calibration 3     93,126
ssj_ops@calibrated=92,413
100% 99.9% 92,413 92,353
90% 89.5% 83,172 82,740
80% 80.6% 73,931 74,469
70% 71.0% 64,689 65,634
60% 59.8% 55,448 55,244
50% 50.1% 46,207 46,295
40% 39.8% 36,965 36,765
30% 30.1% 27,724 27,775
20% 20.3% 18,483 18,716
10% 10.0% 9,241 9,233
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,619
Calibration 2     92,656
Calibration 3     93,736
ssj_ops@calibrated=93,196
100% 100.3% 93,196 93,491
90% 91.5% 83,876 85,257
80% 80.3% 74,557 74,804
70% 69.3% 65,237 64,563
60% 60.1% 55,918 56,014
50% 49.7% 46,598 46,308
40% 40.2% 37,278 37,471
30% 30.1% 27,959 28,040
20% 20.1% 18,639 18,758
10% 10.2% 9,320 9,466
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,165
Calibration 2     91,447
Calibration 3     90,645
ssj_ops@calibrated=91,046
100% 100.3% 91,046 91,324
90% 90.3% 81,941 82,252
80% 81.8% 72,837 74,504
70% 69.5% 63,732 63,256
60% 59.6% 54,628 54,223
50% 50.2% 45,523 45,663
40% 40.4% 36,418 36,763
30% 30.1% 27,314 27,366
20% 20.5% 18,209 18,650
10% 10.0% 9,105 9,069
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,464
Calibration 2     92,356
Calibration 3     91,518
ssj_ops@calibrated=91,937
100% 100.6% 91,937 92,527
90% 89.7% 82,743 82,488
80% 80.0% 73,550 73,506
70% 71.1% 64,356 65,406
60% 60.1% 55,162 55,216
50% 50.4% 45,969 46,314
40% 39.5% 36,775 36,314
30% 30.4% 27,581 27,961
20% 20.4% 18,387 18,800
10% 10.1% 9,194 9,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,153
Calibration 2     94,394
Calibration 3     94,937
ssj_ops@calibrated=94,666
100% 99.0% 94,666 93,749
90% 89.6% 85,199 84,852
80% 79.8% 75,732 75,498
70% 69.9% 66,266 66,172
60% 60.6% 56,799 57,346
50% 50.0% 47,333 47,286
40% 40.1% 37,866 37,985
30% 29.9% 28,400 28,265
20% 20.3% 18,933 19,195
10% 9.9% 9,467 9,349
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,747
Calibration 2     96,760
Calibration 3     97,239
ssj_ops@calibrated=96,999
100% 99.7% 96,999 96,720
90% 89.7% 87,299 86,983
80% 80.5% 77,600 78,100
70% 70.1% 67,900 67,949
60% 60.6% 58,200 58,767
50% 49.6% 48,500 48,152
40% 40.3% 38,800 39,067
30% 29.5% 29,100 28,640
20% 20.3% 19,400 19,708
10% 9.9% 9,700 9,575
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,428
Calibration 2     94,310
Calibration 3     94,347
ssj_ops@calibrated=94,329
100% 100.2% 94,329 94,472
90% 90.5% 84,896 85,342
80% 80.5% 75,463 75,944
70% 69.7% 66,030 65,736
60% 59.8% 56,597 56,378
50% 49.7% 47,164 46,910
40% 40.3% 37,731 38,022
30% 30.1% 28,299 28,417
20% 20.3% 18,866 19,195
10% 10.0% 9,433 9,442
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,984
Calibration 2     92,604
Calibration 3     93,046
ssj_ops@calibrated=92,825
100% 99.0% 92,825 91,941
90% 89.6% 83,542 83,182
80% 80.4% 74,260 74,632
70% 70.8% 64,977 65,700
60% 59.8% 55,695 55,499
50% 49.8% 46,412 46,218
40% 40.4% 37,130 37,460
30% 30.2% 27,847 27,992
20% 20.2% 18,565 18,788
10% 9.9% 9,282 9,213
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,678
Calibration 2     94,684
Calibration 3     94,901
ssj_ops@calibrated=94,792
100% 99.6% 94,792 94,435
90% 89.9% 85,313 85,188
80% 80.5% 75,834 76,332
70% 69.6% 66,355 65,931
60% 60.1% 56,875 57,016
50% 49.4% 47,396 46,865
40% 39.9% 37,917 37,783
30% 29.9% 28,438 28,298
20% 20.2% 18,958 19,145
10% 10.2% 9,479 9,629
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,947
Calibration 2     93,167
Calibration 3     93,205
ssj_ops@calibrated=93,186
100% 99.8% 93,186 92,960
90% 89.6% 83,867 83,540
80% 80.3% 74,549 74,803
70% 70.2% 65,230 65,392
60% 60.0% 55,912 55,949
50% 49.9% 46,593 46,513
40% 39.3% 37,274 36,663
30% 29.9% 27,956 27,904
20% 19.8% 18,637 18,439
10% 10.0% 9,319 9,304
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,848
Calibration 2     93,102
Calibration 3     93,053
ssj_ops@calibrated=93,078
100% 100.2% 93,078 93,228
90% 90.5% 83,770 84,250
80% 81.0% 74,462 75,347
70% 69.9% 65,154 65,060
60% 59.7% 55,847 55,545
50% 50.1% 46,539 46,666
40% 39.5% 37,231 36,807
30% 30.0% 27,923 27,915
20% 20.1% 18,616 18,724
10% 10.3% 9,308 9,583
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,078
Calibration 2     93,671
Calibration 3     93,689
ssj_ops@calibrated=93,680
100% 100.4% 93,680 94,030
90% 89.3% 84,312 83,672
80% 80.6% 74,944 75,550
70% 69.6% 65,576 65,167
60% 60.5% 56,208 56,704
50% 50.2% 46,840 47,018
40% 40.1% 37,472 37,521
30% 29.8% 28,104 27,932
20% 20.3% 18,736 19,041
10% 10.2% 9,368 9,554
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,116
Calibration 2     93,320
Calibration 3     93,188
ssj_ops@calibrated=93,254
100% 100.0% 93,254 93,272
90% 89.9% 83,929 83,800
80% 80.9% 74,603 75,488
70% 69.8% 65,278 65,050
60% 60.0% 55,953 55,981
50% 49.8% 46,627 46,425
40% 40.5% 37,302 37,784
30% 29.8% 27,976 27,816
20% 20.2% 18,651 18,833
10% 9.5% 9,325 8,875
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

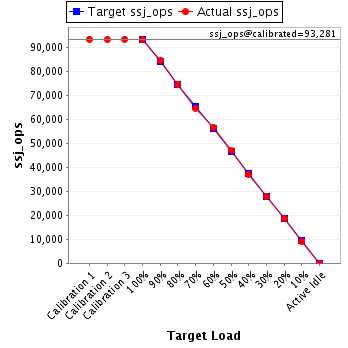

JVM 'RX4770M4.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,358
Calibration 2     93,212
Calibration 3     93,350
ssj_ops@calibrated=93,281
100% 99.9% 93,281 93,180
90% 90.6% 83,953 84,499
80% 80.0% 74,625 74,642
70% 69.3% 65,297 64,675
60% 60.7% 55,969 56,591
50% 50.4% 46,641 46,981
40% 39.8% 37,312 37,111
30% 29.8% 27,984 27,757
20% 20.0% 18,656 18,612
10% 9.9% 9,328 9,251
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,927
Calibration 2     93,475
Calibration 3     93,662
ssj_ops@calibrated=93,568
100% 100.3% 93,568 93,862
90% 88.5% 84,212 82,803
80% 80.6% 74,855 75,416
70% 70.3% 65,498 65,747
60% 59.7% 56,141 55,831
50% 49.9% 46,784 46,662
40% 40.1% 37,427 37,516
30% 30.4% 28,071 28,418
20% 20.4% 18,714 19,108
10% 10.0% 9,357 9,311
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,164
Calibration 2     92,650
Calibration 3     93,059
ssj_ops@calibrated=92,855
100% 100.6% 92,855 93,405
90% 90.4% 83,569 83,921
80% 80.4% 74,284 74,614
70% 69.8% 64,998 64,844
60% 59.9% 55,713 55,653
50% 49.3% 46,427 45,808
40% 40.1% 37,142 37,269
30% 29.9% 27,856 27,761
20% 20.0% 18,571 18,585
10% 9.8% 9,285 9,087
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,193
Calibration 2     94,178
Calibration 3     94,065
ssj_ops@calibrated=94,121
100% 98.8% 94,121 92,947
90% 90.1% 84,709 84,773
80% 79.5% 75,297 74,809
70% 70.2% 65,885 66,119
60% 60.1% 56,473 56,586
50% 49.4% 47,061 46,468
40% 39.3% 37,649 37,021
30% 29.4% 28,236 27,700
20% 20.0% 18,824 18,833
10% 9.5% 9,412 8,949
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,148
Calibration 2     93,163
Calibration 3     93,168
ssj_ops@calibrated=93,165
100% 100.6% 93,165 93,686
90% 89.1% 83,849 83,056
80% 80.8% 74,532 75,270
70% 70.5% 65,216 65,640
60% 60.3% 55,899 56,206
50% 50.2% 46,583 46,814
40% 40.5% 37,266 37,766
30% 30.3% 27,950 28,229
20% 20.0% 18,633 18,629
10% 10.1% 9,317 9,423
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,856
Calibration 2     91,808
Calibration 3     91,383
ssj_ops@calibrated=91,596
100% 100.1% 91,596 91,661
90% 88.9% 82,436 81,431
80% 79.3% 73,276 72,635
70% 69.3% 64,117 63,437
60% 59.3% 54,957 54,272
50% 50.0% 45,798 45,830
40% 39.2% 36,638 35,878
30% 30.2% 27,479 27,635
20% 19.9% 18,319 18,216
10% 10.0% 9,160 9,175
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,709
Calibration 2     92,380
Calibration 3     92,446
ssj_ops@calibrated=92,413
100% 99.9% 92,413 92,283
90% 90.4% 83,171 83,579
80% 79.5% 73,930 73,453
70% 69.6% 64,689 64,345
60% 60.1% 55,448 55,572
50% 50.4% 46,206 46,574
40% 39.6% 36,965 36,615
30% 29.5% 27,724 27,258
20% 19.9% 18,483 18,433
10% 9.7% 9,241 8,945
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,711
Calibration 2     92,841
Calibration 3     93,074
ssj_ops@calibrated=92,957
100% 100.3% 92,957 93,216
90% 89.7% 83,662 83,425
80% 80.0% 74,366 74,326
70% 69.0% 65,070 64,150
60% 60.1% 55,774 55,885
50% 50.2% 46,479 46,666
40% 39.6% 37,183 36,771
30% 29.7% 27,887 27,602
20% 20.1% 18,591 18,687
10% 9.8% 9,296 9,149
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

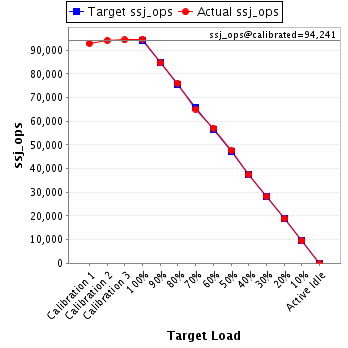

JVM 'RX4770M4.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,916
Calibration 2     94,122
Calibration 3     94,360
ssj_ops@calibrated=94,241
100% 100.5% 94,241 94,710
90% 89.8% 84,817 84,645
80% 80.7% 75,393 76,087
70% 69.2% 65,969 65,180
60% 60.6% 56,545 57,125
50% 50.6% 47,121 47,722
40% 39.8% 37,696 37,528
30% 30.0% 28,272 28,294
20% 20.0% 18,848 18,849
10% 10.1% 9,424 9,495
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

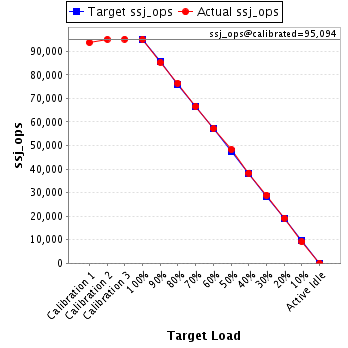

JVM 'RX4770M4.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,691
Calibration 2     95,038
Calibration 3     95,150
ssj_ops@calibrated=95,094
100% 100.0% 95,094 95,105
90% 89.7% 85,584 85,259
80% 80.4% 76,075 76,423
70% 70.1% 66,566 66,665
60% 60.1% 57,056 57,155
50% 50.8% 47,547 48,302
40% 40.3% 38,038 38,314
30% 30.4% 28,528 28,944
20% 20.2% 19,019 19,179
10% 9.6% 9,509 9,145
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,461
Calibration 2     92,481
Calibration 3     92,187
ssj_ops@calibrated=92,334
100% 99.4% 92,334 91,771
90% 89.7% 83,100 82,858
80% 79.8% 73,867 73,687
70% 69.8% 64,634 64,446
60% 59.8% 55,400 55,183
50% 50.0% 46,167 46,141
40% 40.3% 36,933 37,198
30% 30.6% 27,700 28,236
20% 20.4% 18,467 18,871
10% 9.7% 9,233 8,971
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,248
Calibration 2     92,854
Calibration 3     93,215
ssj_ops@calibrated=93,034
100% 99.6% 93,034 92,700
90% 89.2% 83,731 82,953
80% 79.7% 74,427 74,177
70% 70.2% 65,124 65,331
60% 60.2% 55,821 56,025
50% 50.8% 46,517 47,243
40% 38.7% 37,214 35,963
30% 30.2% 27,910 28,099
20% 20.3% 18,607 18,870
10% 10.4% 9,303 9,637
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,115
Calibration 2     91,917
Calibration 3     91,823
ssj_ops@calibrated=91,870
100% 99.6% 91,870 91,487
90% 89.5% 82,683 82,230
80% 79.9% 73,496 73,433
70% 69.3% 64,309 63,703
60% 60.3% 55,122 55,394
50% 49.7% 45,935 45,651
40% 40.4% 36,748 37,086
30% 30.5% 27,561 28,045
20% 19.7% 18,374 18,113
10% 10.0% 9,187 9,162
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,032
Calibration 2     92,637
Calibration 3     93,912
ssj_ops@calibrated=93,275
100% 100.2% 93,275 93,423
90% 90.4% 83,947 84,338
80% 79.5% 74,620 74,169
70% 70.0% 65,292 65,256
60% 59.7% 55,965 55,729
50% 50.8% 46,637 47,426
40% 39.4% 37,310 36,752
30% 29.9% 27,982 27,915
20% 20.4% 18,655 19,041
10% 9.7% 9,327 9,076
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,938
Calibration 2     92,888
Calibration 3     93,938
ssj_ops@calibrated=93,413
100% 100.2% 93,413 93,599
90% 89.6% 84,072 83,698
80% 80.5% 74,730 75,220
70% 69.7% 65,389 65,081
60% 60.1% 56,048 56,130
50% 50.3% 46,707 46,946
40% 39.7% 37,365 37,087
30% 29.8% 28,024 27,815
20% 20.2% 18,683 18,855
10% 9.9% 9,341 9,239
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,733
Calibration 2     94,340
Calibration 3     93,554
ssj_ops@calibrated=93,947
100% 100.2% 93,947 94,131
90% 89.5% 84,552 84,075
80% 80.6% 75,157 75,678
70% 70.3% 65,763 66,025
60% 59.9% 56,368 56,319
50% 50.5% 46,973 47,421
40% 39.5% 37,579 37,110
30% 29.6% 28,184 27,837
20% 19.7% 18,789 18,536
10% 10.1% 9,395 9,533
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,264
Calibration 2     92,931
Calibration 3     92,197
ssj_ops@calibrated=92,564
100% 100.5% 92,564 93,027
90% 89.2% 83,308 82,587
80% 80.8% 74,051 74,796
70% 69.9% 64,795 64,668
60% 60.0% 55,538 55,536
50% 50.1% 46,282 46,343
40% 40.4% 37,026 37,352
30% 30.0% 27,769 27,753
20% 19.8% 18,513 18,362
10% 10.1% 9,256 9,383
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,448
Calibration 2     92,235
Calibration 3     92,442
ssj_ops@calibrated=92,338
100% 98.8% 92,338 91,197
90% 89.6% 83,104 82,730
80% 79.3% 73,871 73,189
70% 70.1% 64,637 64,721
60% 60.6% 55,403 55,992
50% 50.5% 46,169 46,601
40% 40.2% 36,935 37,136
30% 30.2% 27,701 27,851
20% 20.1% 18,468 18,604
10% 10.1% 9,234 9,302
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,327
Calibration 2     95,321
Calibration 3     95,144
ssj_ops@calibrated=95,233
100% 98.5% 95,233 93,847
90% 90.4% 85,709 86,123
80% 80.5% 76,186 76,642
70% 69.1% 66,663 65,813
60% 61.0% 57,140 58,078
50% 49.6% 47,616 47,223
40% 39.5% 38,093 37,580
30% 30.5% 28,570 29,038
20% 19.7% 19,047 18,773
10% 9.7% 9,523 9,266
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,503
Calibration 2     92,218
Calibration 3     92,857
ssj_ops@calibrated=92,538
100% 99.9% 92,538 92,411
90% 89.9% 83,284 83,170
80% 80.5% 74,030 74,466
70% 69.9% 64,776 64,695
60% 59.6% 55,523 55,173
50% 50.0% 46,269 46,244
40% 40.6% 37,015 37,597
30% 30.5% 27,761 28,244
20% 19.5% 18,508 18,051
10% 9.9% 9,254 9,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.081' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,475
Calibration 2     94,962
Calibration 3     95,484
ssj_ops@calibrated=95,223
100% 98.6% 95,223 93,920
90% 91.2% 85,701 86,859
80% 80.0% 76,178 76,166
70% 70.2% 66,656 66,856
60% 59.9% 57,134 57,031
50% 50.2% 47,612 47,835
40% 40.5% 38,089 38,598
30% 29.7% 28,567 28,325
20% 20.1% 19,045 19,130
10% 9.9% 9,522 9,383
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.082' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,475
Calibration 2     94,229
Calibration 3     94,341
ssj_ops@calibrated=94,285
100% 99.9% 94,285 94,233
90% 90.0% 84,856 84,827
80% 80.2% 75,428 75,584
70% 69.0% 65,999 65,078
60% 60.4% 56,571 56,918
50% 50.1% 47,142 47,257
40% 41.0% 37,714 38,672
30% 29.7% 28,285 28,018
20% 20.1% 18,857 18,945
10% 9.8% 9,428 9,287
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.083' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,331
Calibration 2     93,625
Calibration 3     93,710
ssj_ops@calibrated=93,667
100% 99.6% 93,667 93,299
90% 90.0% 84,301 84,326
80% 79.5% 74,934 74,426
70% 68.9% 65,567 64,556
60% 60.0% 56,200 56,247
50% 49.8% 46,834 46,669
40% 40.0% 37,467 37,510
30% 30.0% 28,100 28,068
20% 19.7% 18,733 18,469
10% 10.0% 9,367 9,391
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.084' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,700
Calibration 2     91,955
Calibration 3     92,431
ssj_ops@calibrated=92,193
100% 100.0% 92,193 92,225
90% 89.4% 82,974 82,457
80% 79.3% 73,754 73,070
70% 70.0% 64,535 64,512
60% 59.5% 55,316 54,876
50% 50.2% 46,096 46,245
40% 40.1% 36,877 36,963
30% 30.3% 27,658 27,927
20% 20.0% 18,439 18,399
10% 9.7% 9,219 8,983
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.085' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,122
Calibration 2     93,259
Calibration 3     93,528
ssj_ops@calibrated=93,393
100% 99.8% 93,393 93,223
90% 90.0% 84,054 84,101
80% 80.6% 74,715 75,321
70% 69.7% 65,375 65,079
60% 60.6% 56,036 56,620
50% 49.7% 46,697 46,434
40% 40.1% 37,357 37,460
30% 30.6% 28,018 28,622
20% 20.2% 18,679 18,902
10% 9.9% 9,339 9,231
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.086' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,162
Calibration 2     93,476
Calibration 3     93,342
ssj_ops@calibrated=93,409
100% 99.9% 93,409 93,344
90% 90.4% 84,068 84,483
80% 79.8% 74,727 74,554
70% 70.9% 65,386 66,265
60% 59.9% 56,045 55,981
50% 49.9% 46,704 46,628
40% 39.9% 37,363 37,266
30% 29.4% 28,023 27,440
20% 20.3% 18,682 18,964
10% 10.2% 9,341 9,562
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.087' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,766
Calibration 2     94,883
Calibration 3     94,410
ssj_ops@calibrated=94,647
100% 99.7% 94,647 94,351
90% 89.1% 85,182 84,322
80% 79.8% 75,717 75,567
70% 70.1% 66,253 66,379
60% 59.9% 56,788 56,661
50% 49.0% 47,323 46,396
40% 40.0% 37,859 37,857
30% 30.5% 28,394 28,894
20% 19.9% 18,929 18,850
10% 10.1% 9,465 9,591
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.088' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,186
Calibration 2     92,902
Calibration 3     93,356
ssj_ops@calibrated=93,129
100% 100.2% 93,129 93,319
90% 90.6% 83,816 84,358
80% 81.1% 74,503 75,505
70% 69.7% 65,190 64,919
60% 59.8% 55,877 55,732
50% 50.7% 46,565 47,180
40% 39.3% 37,252 36,579
30% 30.1% 27,939 28,037
20% 20.7% 18,626 19,246
10% 10.0% 9,313 9,300
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.089' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,486
Calibration 2     94,067
Calibration 3     93,717
ssj_ops@calibrated=93,892
100% 99.5% 93,892 93,389
90% 89.3% 84,503 83,833
80% 79.5% 75,114 74,669
70% 69.9% 65,724 65,629
60% 59.9% 56,335 56,201
50% 49.4% 46,946 46,384
40% 39.8% 37,557 37,340
30% 29.9% 28,168 28,098
20% 20.0% 18,778 18,796
10% 10.2% 9,389 9,600
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.090' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,288
Calibration 2     92,942
Calibration 3     93,432
ssj_ops@calibrated=93,187
100% 100.2% 93,187 93,395
90% 90.9% 83,868 84,717
80% 80.4% 74,549 74,934
70% 70.3% 65,231 65,510
60% 59.2% 55,912 55,189
50% 50.3% 46,593 46,867
40% 40.3% 37,275 37,547
30% 30.6% 27,956 28,500
20% 21.1% 18,637 19,638
10% 9.6% 9,319 8,916
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.091' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,336
Calibration 2     92,361
Calibration 3     92,598
ssj_ops@calibrated=92,480
100% 100.0% 92,480 92,494
90% 89.0% 83,232 82,290
80% 80.5% 73,984 74,408
70% 69.5% 64,736 64,297
60% 59.5% 55,488 55,000
50% 49.8% 46,240 46,019
40% 39.9% 36,992 36,917
30% 30.0% 27,744 27,703
20% 20.2% 18,496 18,693
10% 9.8% 9,248 9,066
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.092' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,502
Calibration 2     93,964
Calibration 3     94,366
ssj_ops@calibrated=94,165
100% 99.9% 94,165 94,031
90% 90.7% 84,749 85,447
80% 79.8% 75,332 75,181
70% 70.7% 65,916 66,530
60% 60.3% 56,499 56,788
50% 50.3% 47,083 47,339
40% 39.4% 37,666 37,078
30% 30.2% 28,250 28,403
20% 19.6% 18,833 18,452
10% 9.9% 9,417 9,308
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.093' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,100
Calibration 2     93,297
Calibration 3     93,780
ssj_ops@calibrated=93,539
100% 100.1% 93,539 93,621
90% 89.4% 84,185 83,619
80% 79.2% 74,831 74,128
70% 70.7% 65,477 66,138
60% 59.7% 56,123 55,888
50% 50.2% 46,769 46,979
40% 39.9% 37,415 37,314
30% 29.4% 28,062 27,535
20% 20.1% 18,708 18,787
10% 9.8% 9,354 9,169
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.094' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,712
Calibration 2     92,003
Calibration 3     91,872
ssj_ops@calibrated=91,937
100% 100.5% 91,937 92,400
90% 89.8% 82,743 82,539
80% 80.5% 73,550 73,977
70% 70.4% 64,356 64,697
60% 59.7% 55,162 54,874
50% 50.2% 45,969 46,175
40% 39.6% 36,775 36,362
30% 29.9% 27,581 27,478
20% 20.0% 18,387 18,403
10% 10.2% 9,194 9,395
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.095' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,392
Calibration 2     94,157
Calibration 3     94,616
ssj_ops@calibrated=94,386
100% 100.1% 94,386 94,503
90% 90.0% 84,948 84,940
80% 79.5% 75,509 75,056
70% 70.4% 66,070 66,454
60% 59.7% 56,632 56,336
50% 50.3% 47,193 47,506
40% 39.6% 37,755 37,400
30% 29.8% 28,316 28,106
20% 20.4% 18,877 19,278
10% 10.0% 9,439 9,403
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.096' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,098
Calibration 2     94,154
Calibration 3     94,058
ssj_ops@calibrated=94,106
100% 99.7% 94,106 93,842
90% 89.6% 84,695 84,284
80% 79.7% 75,285 75,006
70% 70.4% 65,874 66,273
60% 58.8% 56,464 55,340
50% 49.6% 47,053 46,700
40% 39.6% 37,642 37,223
30% 29.8% 28,232 28,078
20% 20.3% 18,821 19,132
10% 9.9% 9,411 9,345
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.097' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,852
Calibration 2     93,452
Calibration 3     93,681
ssj_ops@calibrated=93,567
100% 100.2% 93,567 93,772
90% 89.1% 84,210 83,351
80% 79.7% 74,853 74,597
70% 70.1% 65,497 65,564
60% 61.8% 56,140 57,833
50% 49.6% 46,783 46,374
40% 40.0% 37,427 37,440
30% 30.1% 28,070 28,196
20% 20.6% 18,713 19,247
10% 10.2% 9,357 9,500
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.098' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,347
Calibration 2     90,038
Calibration 3     90,184
ssj_ops@calibrated=90,111
100% 99.8% 90,111 89,958
90% 89.1% 81,100 80,282
80% 79.3% 72,089 71,479
70% 69.8% 63,078 62,876
60% 60.2% 54,067 54,214
50% 50.2% 45,055 45,214
40% 39.6% 36,044 35,722
30% 30.1% 27,033 27,158
20% 20.1% 18,022 18,091
10% 10.0% 9,011 8,999
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.099' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,436
Calibration 2     92,923
Calibration 3     92,606
ssj_ops@calibrated=92,765
100% 99.8% 92,765 92,537
90% 90.2% 83,488 83,638
80% 79.2% 74,212 73,507
70% 70.8% 64,935 65,686
60% 58.7% 55,659 54,442
50% 49.2% 46,382 45,674
40% 39.9% 37,106 36,991
30% 30.4% 27,829 28,215
20% 20.1% 18,553 18,641
10% 10.1% 9,276 9,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.100' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,044
Calibration 2     93,169
Calibration 3     93,225
ssj_ops@calibrated=93,197
100% 99.6% 93,197 92,812
90% 89.8% 83,877 83,710
80% 78.4% 74,558 73,081
70% 69.8% 65,238 65,076
60% 59.5% 55,918 55,417
50% 49.9% 46,599 46,471
40% 40.2% 37,279 37,493
30% 29.7% 27,959 27,636
20% 19.9% 18,639 18,515
10% 10.1% 9,320 9,395
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.101' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,175
Calibration 2     94,221
Calibration 3     94,498
ssj_ops@calibrated=94,359
100% 100.1% 94,359 94,463
90% 88.8% 84,923 83,809
80% 80.1% 75,487 75,592
70% 69.3% 66,051 65,356
60% 60.4% 56,616 56,953
50% 50.0% 47,180 47,189
40% 40.1% 37,744 37,808
30% 29.5% 28,308 27,815
20% 20.2% 18,872 19,072
10% 10.3% 9,436 9,719
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.102' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,310
Calibration 2     91,630
Calibration 3     92,039
ssj_ops@calibrated=91,834
100% 100.0% 91,834 91,855
90% 89.7% 82,651 82,376
80% 79.6% 73,468 73,140
70% 69.9% 64,284 64,212
60% 60.3% 55,101 55,350
50% 50.1% 45,917 45,967
40% 40.2% 36,734 36,878
30% 29.7% 27,550 27,287
20% 20.4% 18,367 18,724
10% 10.2% 9,183 9,412
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.103' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,125
Calibration 2     91,159
Calibration 3     91,535
ssj_ops@calibrated=91,347
100% 100.4% 91,347 91,699
90% 90.8% 82,213 82,965
80% 80.9% 73,078 73,915
70% 70.8% 63,943 64,705
60% 60.6% 54,808 55,327
50% 49.7% 45,674 45,437
40% 40.2% 36,539 36,757
30% 29.5% 27,404 26,936
20% 20.1% 18,269 18,383
10% 10.3% 9,135 9,406
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.104' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,090
Calibration 2     92,790
Calibration 3     93,552
ssj_ops@calibrated=93,171
100% 100.3% 93,171 93,492
90% 90.1% 83,854 83,961
80% 79.6% 74,537 74,121
70% 70.3% 65,220 65,532
60% 60.2% 55,903 56,085
50% 49.4% 46,586 46,063
40% 40.0% 37,268 37,249
30% 30.0% 27,951 27,978
20% 20.2% 18,634 18,849
10% 9.4% 9,317 8,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.105' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,087
Calibration 2     91,347
Calibration 3     92,663
ssj_ops@calibrated=92,005
100% 100.3% 92,005 92,305
90% 89.2% 82,805 82,056
80% 80.9% 73,604 74,409
70% 70.6% 64,404 64,994
60% 59.1% 55,203 54,355
50% 49.6% 46,003 45,618
40% 39.3% 36,802 36,186
30% 30.6% 27,602 28,116
20% 20.4% 18,401 18,741
10% 9.9% 9,201 9,092
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.106' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,733
Calibration 2     92,435
Calibration 3     91,997
ssj_ops@calibrated=92,216
100% 100.4% 92,216 92,574
90% 88.8% 82,994 81,905
80% 79.4% 73,773 73,205
70% 70.9% 64,551 65,350
60% 59.6% 55,329 54,982
50% 50.2% 46,108 46,282
40% 39.6% 36,886 36,535
30% 30.1% 27,665 27,770
20% 20.1% 18,443 18,556
10% 10.1% 9,222 9,330
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.107' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,083
Calibration 2     94,938
Calibration 3     93,805
ssj_ops@calibrated=94,372
100% 100.6% 94,372 94,937
90% 90.7% 84,935 85,586
80% 80.2% 75,497 75,678
70% 70.5% 66,060 66,567
60% 60.1% 56,623 56,749
50% 50.6% 47,186 47,724
40% 40.6% 37,749 38,303
30% 30.2% 28,312 28,490
20% 19.8% 18,874 18,720
10% 10.2% 9,437 9,666
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.108' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,085
Calibration 2     94,140
Calibration 3     93,886
ssj_ops@calibrated=94,013
100% 98.4% 94,013 92,486
90% 89.9% 84,612 84,485
80% 80.4% 75,210 75,564
70% 69.7% 65,809 65,568
60% 60.4% 56,408 56,772
50% 50.7% 47,007 47,694
40% 40.0% 37,605 37,593
30% 30.4% 28,204 28,625
20% 19.8% 18,803 18,595
10% 10.0% 9,401 9,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.109' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,677
Calibration 2     95,334
Calibration 3     94,759
ssj_ops@calibrated=95,046
100% 99.9% 95,046 94,921
90% 91.8% 85,542 87,281
80% 79.5% 76,037 75,559
70% 70.6% 66,532 67,117
60% 60.2% 57,028 57,221
50% 50.3% 47,523 47,815
40% 39.8% 38,018 37,857
30% 30.2% 28,514 28,703
20% 20.2% 19,009 19,154
10% 10.3% 9,505 9,829
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.110' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,344
Calibration 2     92,404
Calibration 3     92,841
ssj_ops@calibrated=92,623
100% 99.1% 92,623 91,765
90% 89.8% 83,360 83,185
80% 80.2% 74,098 74,256
70% 69.8% 64,836 64,614
60% 60.3% 55,574 55,883
50% 49.7% 46,311 46,007
40% 40.9% 37,049 37,928
30% 29.7% 27,787 27,545
20% 19.5% 18,525 18,020
10% 10.1% 9,262 9,324
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.111' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,998
Calibration 2     92,338
Calibration 3     93,197
ssj_ops@calibrated=92,768
100% 99.7% 92,768 92,517
90% 90.7% 83,491 84,141
80% 79.3% 74,214 73,525
70% 71.3% 64,937 66,189
60% 59.9% 55,661 55,574
50% 49.7% 46,384 46,125
40% 40.5% 37,107 37,581
30% 29.7% 27,830 27,530
20% 19.9% 18,554 18,432
10% 10.3% 9,277 9,583
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.112' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,095
Calibration 2     89,497
Calibration 3     89,561
ssj_ops@calibrated=89,529
100% 99.4% 89,529 89,004
90% 90.3% 80,576 80,802
80% 80.4% 71,623 71,974
70% 70.1% 62,670 62,734
60% 59.8% 53,717 53,536
50% 50.5% 44,765 45,171
40% 40.4% 35,812 36,132
30% 30.0% 26,859 26,888
20% 20.0% 17,906 17,889
10% 10.1% 8,953 9,070
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
