Hewlett Packard Enterprise ProLiant DL560 Gen10 ssj_ops@100% = 11,725,627
ssj_ops@100% per JVM = 1,465,703
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Oct 10, 2017
Hardware Availability: Oct-2017 Software Availability: Apr-2015 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,752,804
Calibration 2     11,759,174
Calibration 3     11,757,292
ssj_ops@calibrated=11,758,233
100% 99.7% 11,758,233 11,725,627
90% 90.0% 10,582,409 10,580,169
80% 80.0% 9,406,586 9,411,437
70% 70.1% 8,230,763 8,241,170
60% 60.0% 7,054,940 7,056,523
50% 50.0% 5,879,116 5,876,594
40% 40.1% 4,703,293 4,709,344
30% 30.0% 3,527,470 3,527,435
20% 20.0% 2,351,647 2,352,157
10% 10.0% 1,175,823 1,173,811
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL560 Gen10
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 24 x 8192 MB
Memory Details: 24 x 8 GB 2Rx8 PC4-2666V-R: slots 1, 3, 5, 8, 10, 12 populated in each socket
Power Supply Quantity and Rating (W): 2 x 800
Power Supply Details: HPE DPS-800AB-35 A 96% (865438-B21)
Disk Drive: 1 x HPE 240GB SATA 6G M.2 2280 SSD (875488-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 2-port 332T Adapter (615732-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3,4,5,6,7] /AFFINITY [FFFFFFF]
JVM Instances: 8
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: U34 v1.22 09/29/2017
Management Firmware Version: 1.15 Aug 03 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-3JGUKDAIHE0.001 1,467,520
WIN-3JGUKDAIHE0.002 1,468,079
WIN-3JGUKDAIHE0.003 1,459,249
WIN-3JGUKDAIHE0.004 1,460,662
WIN-3JGUKDAIHE0.005 1,474,634
WIN-3JGUKDAIHE0.006 1,459,587
WIN-3JGUKDAIHE0.007 1,464,263
WIN-3JGUKDAIHE0.008 1,471,633
ssj_ops@100% 11,725,627
ssj_ops@100% per JVM 1,465,703

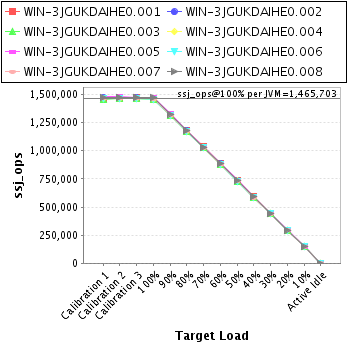

Graph of per-instance results
JVM 'WIN-3JGUKDAIHE0.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,468,749
Calibration 2     1,472,511
Calibration 3     1,472,248
ssj_ops@calibrated=1,472,379
100% 99.7% 1,472,379 1,467,520
90% 90.0% 1,325,141 1,324,565
80% 79.9% 1,177,903 1,177,081
70% 70.2% 1,030,665 1,033,961
60% 60.2% 883,428 886,669
50% 49.9% 736,190 734,648
40% 40.1% 588,952 591,102
30% 30.0% 441,714 441,518
20% 19.9% 294,476 293,547
10% 10.0% 147,238 147,265
Active Idle   0 0
Graph of results
JVM 'WIN-3JGUKDAIHE0.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,474,571
Calibration 2     1,471,182
Calibration 3     1,474,141
ssj_ops@calibrated=1,472,662
100% 99.7% 1,472,662 1,468,079
90% 90.1% 1,325,396 1,327,278
80% 80.2% 1,178,129 1,180,571
70% 70.0% 1,030,863 1,031,042
60% 60.1% 883,597 884,536
50% 50.0% 736,331 736,821
40% 40.0% 589,065 588,479
30% 29.9% 441,799 440,728
20% 20.0% 294,532 294,995
10% 10.1% 147,266 148,303
Active Idle   0 0
Graph of results
JVM 'WIN-3JGUKDAIHE0.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,460,405
Calibration 2     1,462,354
Calibration 3     1,461,935
ssj_ops@calibrated=1,462,145
100% 99.8% 1,462,145 1,459,249
90% 90.0% 1,315,930 1,315,518
80% 80.1% 1,169,716 1,171,289
70% 70.1% 1,023,501 1,025,082
60% 59.9% 877,287 876,024
50% 50.0% 731,072 730,596
40% 40.1% 584,858 585,826
30% 30.0% 438,643 438,797
20% 20.0% 292,429 292,463
10% 9.9% 146,214 144,834
Active Idle   0 0
Graph of results
JVM 'WIN-3JGUKDAIHE0.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,464,322
Calibration 2     1,461,072
Calibration 3     1,463,488
ssj_ops@calibrated=1,462,280
100% 99.9% 1,462,280 1,460,662
90% 90.1% 1,316,052 1,317,694
80% 79.9% 1,169,824 1,168,206
70% 70.2% 1,023,596 1,026,531
60% 60.1% 877,368 878,284
50% 50.1% 731,140 732,917
40% 40.0% 584,912 585,145
30% 30.0% 438,684 438,307
20% 20.0% 292,456 292,536
10% 9.9% 146,228 144,665
Active Idle   0 0
Graph of results

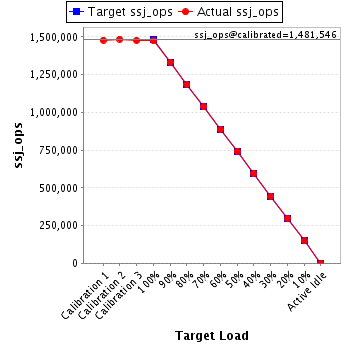

JVM 'WIN-3JGUKDAIHE0.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,479,277
Calibration 2     1,485,584
Calibration 3     1,477,508
ssj_ops@calibrated=1,481,546
100% 99.5% 1,481,546 1,474,634
90% 90.0% 1,333,391 1,332,841
80% 79.9% 1,185,236 1,183,978
70% 70.0% 1,037,082 1,036,824
60% 59.9% 888,927 887,085
50% 50.2% 740,773 743,766
40% 40.2% 592,618 595,027
30% 30.0% 444,464 445,062
20% 20.1% 296,309 297,163
10% 10.0% 148,155 147,911
Active Idle   0 0
Graph of results
JVM 'WIN-3JGUKDAIHE0.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,464,886
Calibration 2     1,464,791
Calibration 3     1,463,982
ssj_ops@calibrated=1,464,387
100% 99.7% 1,464,387 1,459,587
90% 90.0% 1,317,948 1,317,483
80% 80.1% 1,171,509 1,173,568
70% 70.1% 1,025,071 1,026,660
60% 59.7% 878,632 874,968
50% 49.8% 732,193 729,406
40% 40.1% 585,755 587,220
30% 30.1% 439,316 440,575
20% 19.9% 292,877 291,545
10% 10.0% 146,439 146,355
Active Idle   0 0
Graph of results
JVM 'WIN-3JGUKDAIHE0.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,466,462
Calibration 2     1,466,865
Calibration 3     1,468,572
ssj_ops@calibrated=1,467,718
100% 99.8% 1,467,718 1,464,263
90% 89.8% 1,320,947 1,317,844
80% 80.3% 1,174,175 1,178,174
70% 70.0% 1,027,403 1,027,892
60% 60.1% 880,631 881,597
50% 49.9% 733,859 731,823
40% 39.8% 587,087 584,289
30% 30.0% 440,316 440,626
20% 20.1% 293,544 294,492
10% 10.0% 146,772 146,391
Active Idle   0 0
Graph of results
JVM 'WIN-3JGUKDAIHE0.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,474,134
Calibration 2     1,474,815
Calibration 3     1,475,418
ssj_ops@calibrated=1,475,116
100% 99.8% 1,475,116 1,471,633
90% 90.0% 1,327,605 1,326,946
80% 79.9% 1,180,093 1,178,570
70% 70.0% 1,032,581 1,033,179
60% 60.2% 885,070 887,362
50% 49.9% 737,558 736,617
40% 40.1% 590,047 592,255
30% 30.0% 442,535 441,821
20% 20.0% 295,023 295,416
10% 10.0% 147,512 148,086
Active Idle   0 0
Graph of results
