SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2017 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL360 Gen10 | SPECpower_ssj2008 = 12,488 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Oct 9, 2017 |
| Hardware Availability: | Oct-2017 | Software Availability: | Apr-2015 | Publication: | Oct 25, 2017 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

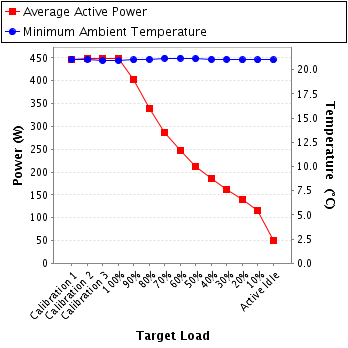

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 446 | 21.1 |
| Calibration 2 | 450 | 21.1 |
| Calibration 3 | 449 | 20.9 |
| 100% | 448 | 20.9 |
| 90% | 404 | 21.0 |
| 80% | 339 | 21.1 |
| 70% | 287 | 21.2 |
| 60% | 247 | 21.2 |
| 50% | 213 | 21.1 |
| 40% | 186 | 21.1 |
| 30% | 162 | 21.1 |
| 20% | 140 | 21.0 |
| 10% | 116 | 21.0 |
| Active Idle | 50.0 | 21.0 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT310E |
| Serial Number: | C2QM22001V |
| Connectivity: | Yokogawa USB |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | Transcat |
| Calibration Label: | 5-D40W6-20-1 |
| Date of Calibration: | 21-Jun-2017 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | Connected to SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |

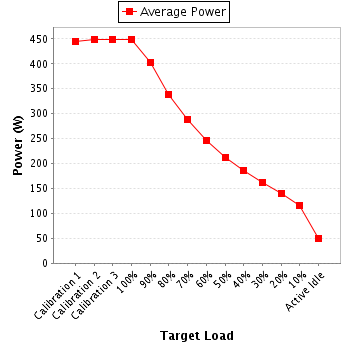

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 211 | 300.0 | 2.13 | 5.0 | 0.991 | 446 | 0.5% |
| Calibration 2 | 212 | 300.0 | 2.14 | 5.0 | 0.991 | 450 | 0.5% |
| Calibration 3 | 212 | 300.0 | 2.14 | 5.0 | 0.991 | 449 | 0.5% |
| 100% | 212 | 300.0 | 2.13 | 5.0 | 0.991 | 448 | 0.5% |
| 90% | 212 | 300.0 | 1.93 | 2.0 | 0.989 | 404 | 0.3% |
| 80% | 212 | 300.0 | 1.62 | 2.0 | 0.985 | 339 | 0.3% |
| 70% | 212 | 300.0 | 1.38 | 2.0 | 0.982 | 287 | 0.3% |
| 60% | 212 | 300.0 | 1.19 | 2.0 | 0.981 | 247 | 0.4% |
| 50% | 212 | 300.0 | 1.03 | 2.0 | 0.979 | 213 | 0.4% |
| 40% | 212 | 300.0 | 0.899 | 1.0 | 0.974 | 186 | 0.3% |
| 30% | 212 | 300.0 | 0.791 | 1.0 | 0.968 | 162 | 0.3% |
| 20% | 212 | 300.0 | 0.689 | 1.0 | 0.958 | 140 | 0.4% |
| 10% | 212 | 300.0 | 0.583 | 1.0 | 0.944 | 116 | 0.4% |
| Active Idle | 212 | 300.0 | 0.299 | 0.5 | 0.789 | 50.0 | 0.5% |
