SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2017 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R740 | SPECpower_ssj2008 = 11,790 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Aug 27, 2017 |
| Hardware Availability: | Jul-2017 | Software Availability: | Apr-2015 | Publication: | Sep 13, 2017 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

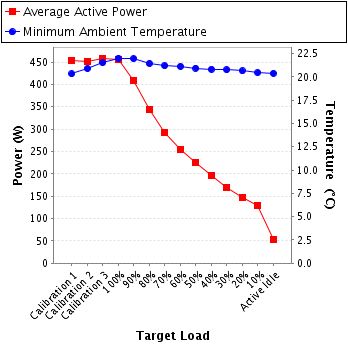

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 454 | 20.3 |
| Calibration 2 | 452 | 20.9 |
| Calibration 3 | 459 | 21.5 |
| 100% | 457 | 22.0 |
| 90% | 408 | 21.9 |
| 80% | 344 | 21.4 |
| 70% | 292 | 21.2 |
| 60% | 255 | 21.1 |
| 50% | 224 | 20.9 |
| 40% | 195 | 20.8 |
| 30% | 170 | 20.8 |
| 20% | 147 | 20.6 |
| 10% | 129 | 20.4 |
| Active Idle | 52.3 | 20.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91JB09484 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | SIMCO |
| Calibration Label: | 7736998 |
| Date of Calibration: | 4-Apr-2017 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |

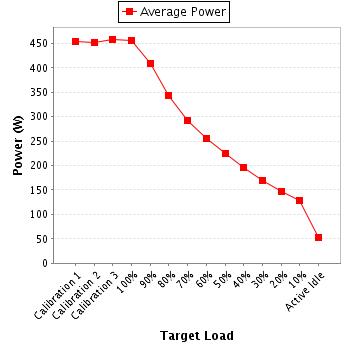

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 2.19 | 5.0 | 0.997 | 454 | 0.5% |
| Calibration 2 | 208 | 300.0 | 2.18 | 5.0 | 0.997 | 452 | 0.5% |
| Calibration 3 | 208 | 300.0 | 2.21 | 5.0 | 0.997 | 459 | 0.5% |
| 100% | 208 | 300.0 | 2.20 | 5.0 | 0.997 | 457 | 0.5% |
| 90% | 208 | 300.0 | 1.97 | 5.0 | 0.997 | 408 | 0.5% |
| 80% | 208 | 300.0 | 1.66 | 2.0 | 0.995 | 344 | 0.3% |
| 70% | 208 | 300.0 | 1.41 | 2.0 | 0.994 | 292 | 0.4% |
| 60% | 208 | 300.0 | 1.23 | 2.0 | 0.994 | 255 | 0.4% |
| 50% | 208 | 300.0 | 1.08 | 2.0 | 0.993 | 224 | 0.4% |
| 40% | 208 | 300.0 | 0.945 | 1.0 | 0.993 | 195 | 0.3% |
| 30% | 208 | 300.0 | 0.826 | 1.0 | 0.990 | 170 | 0.4% |
| 20% | 208 | 300.0 | 0.713 | 1.0 | 0.989 | 147 | 0.4% |
| 10% | 208 | 300.0 | 0.627 | 1.0 | 0.987 | 129 | 0.4% |
| Active Idle | 208 | 300.0 | 0.258 | 0.5 | 0.973 | 52.3 | 0.5% |
