Huawei Technologies Co., Ltd Fusion Server 2288H V5 SPECpower_ssj2008 = 12,968 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Jun 18, 2017
Hardware Availability: Jul-2017 Software Availability: Jan-2015 Publication: Jul 11, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 460 22.4
Calibration 2 462 22.1
Calibration 3 462 22.2
100% 461 22.2
90% 381 22.2
80% 313 22.3
70% 277 22.4
60% 233 22.5
50% 201 22.2
40% 182 22.2
30% 162 22.3
20% 142 22.6
10% 120 22.8
Active Idle 49.6 22.8
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91MC13547
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: B17000815-0076
Date of Calibration: 13-Feb-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 222 300.0 2.08 5.0 0.997 460 0.5%
Calibration 2 222 300.0 2.09 5.0 0.997 462 0.5%
Calibration 3 222 300.0 2.09 5.0 0.997 462 0.5%
100% 222 300.0 2.09 5.0 0.997 461 0.5%
90% 222 300.0 1.73 2.0 0.995 381 0.3%
80% 222 300.0 1.42 2.0 0.996 313 0.4%
70% 222 300.0 1.25 2.0 0.995 277 0.4%
60% 222 300.0 1.06 2.0 0.993 233 0.4%
50% 222 300.0 0.916 1.0 0.990 201 0.3%
40% 222 300.0 0.828 1.0 0.988 182 0.3%
30% 222 300.0 0.740 1.0 0.986 162 0.4%
20% 222 300.0 0.649 1.0 0.982 142 0.4%
10% 222 300.0 0.554 1.0 0.977 120 0.4%
Active Idle 222 300.0 0.240 0.5 0.929 49.6 0.5%

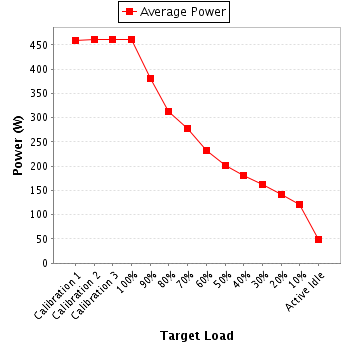

Power details for pwr1
