Lenovo Global Technology ThinkSystem SR650 (Intel Xeon Platinum 8176 CPU 2.10 GHz) SPECpower_ssj2008 = 12,336 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Taipei, Taiwan Test Date: Jun 19, 2017
Hardware Availability: Aug-2017 Software Availability: Sep-2017 Publication: Jul 11, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 383 27.1
Calibration 2 367 27.1
Calibration 3 354 27.1
100% 357 27.1
90% 314 27.1
80% 273 27.1
70% 242 27.1
60% 217 27.1
50% 197 27.1
40% 177 27.1
30% 159 27.1
20% 139 27.1
10% 119 27.1
Active Idle 57.7 27.1

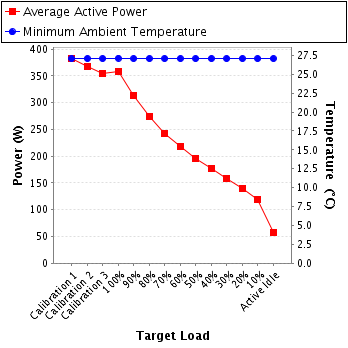

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT210
Serial Number: 91H245648
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NML/ROC
Accredited by: ETC, Taiwan
Calibration Label: 16-07-BAC-062-02L
Date of Calibration: 7-Jul-2016
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.0-efc0c004-20160120
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International
Model: Watchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 1.82 2.0 0.996 383 0.3%
Calibration 2 211 300.0 1.75 2.0 0.997 367 0.3%
Calibration 3 211 300.0 1.68 2.0 0.997 354 0.3%
100% 211 300.0 1.70 2.0 0.997 357 0.3%
90% 211 300.0 1.49 2.0 0.996 314 0.4%
80% 211 300.0 1.30 2.0 0.994 273 0.4%
70% 211 300.0 1.15 2.0 0.992 242 0.4%
60% 211 300.0 1.04 2.0 0.988 217 0.5%
50% 211 300.0 0.944 1.0 0.986 197 0.3%
40% 211 300.0 0.855 1.0 0.982 177 0.4%
30% 211 300.0 0.770 1.0 0.977 159 0.4%
20% 211 300.0 0.680 1.0 0.970 139 0.4%
10% 211 300.0 0.585 1.0 0.960 119 0.5%
Active Idle 211 300.0 0.347 0.5 0.786 57.7 0.6%
Power details for pwr1
