Quanta Computer Inc. QuantaGrid D52B-2U ssj_ops@100% = 5,457,796
ssj_ops@100% per JVM = 97,461
Test Sponsor: Quanta Computer Inc. SPEC License #: 9050 Test Method: Single Node
Tested By: Quanta Cloud Technology Test Location: Taoyuan, TW, R.O.C Test Date: Jun 21, 2017
Hardware Availability: Jul-2017 Software Availability: Sep-2016 Publication: Jul 11, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,595,971
Calibration 2     5,528,152
Calibration 3     5,554,019
ssj_ops@calibrated=5,541,086
100% 98.5% 5,541,086 5,457,796
90% 90.1% 4,986,977 4,993,245
80% 80.0% 4,432,869 4,433,469
70% 70.0% 3,878,760 3,878,631
60% 59.9% 3,324,651 3,319,463
50% 49.9% 2,770,543 2,765,735
40% 40.0% 2,216,434 2,215,868
30% 30.0% 1,662,326 1,660,587
20% 20.0% 1,108,217 1,109,387
10% 10.0% 554,109 553,417
Active Idle   0 0
Graph of results
System Under Test
Set: 'S5B'
Set Identifier: S5B
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Quanta Computer Inc.
Model: QuantaGrid D52B-2U
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28 core, 2.5GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per chip
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 16GB 2Rx4 PC4-2666V-RE1-12-PA0; slots A0, B0, C0, D0, E0, F0, populated for both Processor sockets
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: ARTESYN MC800B6-3-4R-02
Disk Drive: 1 x 120G SATA SSD Quanta P/N:ABS120HC007
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Controller I210, 1-port
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power plan in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000,0x3000000,0xC000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 3A05
Management Firmware Version: 3.13
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-8S1Q51DGKIG.001 104,503
WIN-8S1Q51DGKIG.002 101,938
WIN-8S1Q51DGKIG.003 106,893
WIN-8S1Q51DGKIG.004 103,494
WIN-8S1Q51DGKIG.005 92,202
WIN-8S1Q51DGKIG.006 91,627
WIN-8S1Q51DGKIG.007 92,093
WIN-8S1Q51DGKIG.008 104,944
WIN-8S1Q51DGKIG.009 103,001
WIN-8S1Q51DGKIG.010 101,773
WIN-8S1Q51DGKIG.011 90,101
WIN-8S1Q51DGKIG.012 91,682
WIN-8S1Q51DGKIG.013 90,831
WIN-8S1Q51DGKIG.014 91,813
WIN-8S1Q51DGKIG.015 102,760
WIN-8S1Q51DGKIG.016 104,174
WIN-8S1Q51DGKIG.017 103,316
WIN-8S1Q51DGKIG.018 91,953
WIN-8S1Q51DGKIG.019 92,195
WIN-8S1Q51DGKIG.020 92,275
WIN-8S1Q51DGKIG.021 101,629
WIN-8S1Q51DGKIG.022 102,688
WIN-8S1Q51DGKIG.023 103,399
WIN-8S1Q51DGKIG.024 104,819
WIN-8S1Q51DGKIG.025 91,377
WIN-8S1Q51DGKIG.026 92,318
WIN-8S1Q51DGKIG.027 93,063
WIN-8S1Q51DGKIG.028 92,220
WIN-8S1Q51DGKIG.029 103,753
WIN-8S1Q51DGKIG.030 102,251
WIN-8S1Q51DGKIG.031 104,946
WIN-8S1Q51DGKIG.032 100,967
WIN-8S1Q51DGKIG.033 91,930
WIN-8S1Q51DGKIG.034 91,653
WIN-8S1Q51DGKIG.035 91,266
WIN-8S1Q51DGKIG.036 99,718
WIN-8S1Q51DGKIG.037 102,934
WIN-8S1Q51DGKIG.038 101,542
WIN-8S1Q51DGKIG.039 91,176
WIN-8S1Q51DGKIG.040 91,846
WIN-8S1Q51DGKIG.041 91,554
WIN-8S1Q51DGKIG.042 92,696
WIN-8S1Q51DGKIG.043 103,634
WIN-8S1Q51DGKIG.044 104,967
WIN-8S1Q51DGKIG.045 100,502
WIN-8S1Q51DGKIG.046 92,506
WIN-8S1Q51DGKIG.047 92,622
WIN-8S1Q51DGKIG.048 92,120
WIN-8S1Q51DGKIG.049 100,527
WIN-8S1Q51DGKIG.050 101,493
WIN-8S1Q51DGKIG.051 103,867
WIN-8S1Q51DGKIG.052 101,488
WIN-8S1Q51DGKIG.053 91,413
WIN-8S1Q51DGKIG.054 93,065
WIN-8S1Q51DGKIG.055 93,149
WIN-8S1Q51DGKIG.056 93,129
ssj_ops@100% 5,457,796
ssj_ops@100% per JVM 97,461
Graph of per-instance results
JVM 'WIN-8S1Q51DGKIG.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,598
Calibration 2     103,720
Calibration 3     105,117
ssj_ops@calibrated=104,419
100% 100.1% 104,419 104,503
90% 90.3% 93,977 94,270
80% 80.7% 83,535 84,217
70% 70.3% 73,093 73,354
60% 60.0% 62,651 62,609
50% 49.9% 52,209 52,141
40% 39.4% 41,767 41,133
30% 30.5% 31,326 31,875
20% 19.9% 20,884 20,730
10% 10.0% 10,442 10,451
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,082
Calibration 2     105,646
Calibration 3     103,554
ssj_ops@calibrated=104,600
100% 97.5% 104,600 101,938
90% 90.9% 94,140 95,041
80% 79.4% 83,680 83,006
70% 69.9% 73,220 73,152
60% 59.8% 62,760 62,560
50% 49.4% 52,300 51,674
40% 40.1% 41,840 41,917
30% 29.9% 31,380 31,285
20% 20.1% 20,920 21,019
10% 9.8% 10,460 10,295
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,813
Calibration 2     107,351
Calibration 3     106,902
ssj_ops@calibrated=107,127
100% 99.8% 107,127 106,893
90% 91.1% 96,414 97,605
80% 81.3% 85,701 87,065
70% 70.2% 74,989 75,177
60% 60.3% 64,276 64,640
50% 50.3% 53,563 53,917
40% 40.4% 42,851 43,291
30% 29.4% 32,138 31,541
20% 20.4% 21,425 21,806
10% 10.0% 10,713 10,675
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

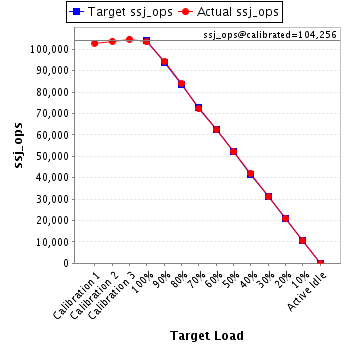

JVM 'WIN-8S1Q51DGKIG.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,885
Calibration 2     103,766
Calibration 3     104,746
ssj_ops@calibrated=104,256
100% 99.3% 104,256 103,494
90% 90.4% 93,831 94,277
80% 80.6% 83,405 84,043
70% 69.3% 72,979 72,231
60% 60.1% 62,554 62,655
50% 49.9% 52,128 52,036
40% 40.3% 41,703 42,003
30% 29.8% 31,277 31,085
20% 20.1% 20,851 20,979
10% 10.1% 10,426 10,545
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,456
Calibration 2     92,440
Calibration 3     93,381
ssj_ops@calibrated=92,910
100% 99.2% 92,910 92,202
90% 90.2% 83,619 83,759
80% 80.2% 74,328 74,552
70% 71.0% 65,037 65,933
60% 59.7% 55,746 55,503
50% 49.6% 46,455 46,086
40% 40.3% 37,164 37,464
30% 30.9% 27,873 28,693
20% 20.5% 18,582 19,024
10% 10.1% 9,291 9,394
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

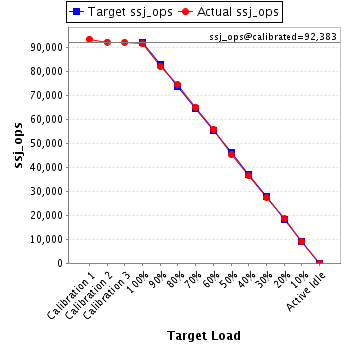

JVM 'WIN-8S1Q51DGKIG.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,603
Calibration 2     92,397
Calibration 3     92,369
ssj_ops@calibrated=92,383
100% 99.2% 92,383 91,627
90% 89.1% 83,145 82,277
80% 80.8% 73,906 74,623
70% 70.6% 64,668 65,254
60% 60.5% 55,430 55,917
50% 49.0% 46,191 45,302
40% 39.6% 36,953 36,611
30% 29.8% 27,715 27,573
20% 20.0% 18,477 18,513
10% 9.7% 9,238 8,970
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,393
Calibration 2     92,629
Calibration 3     93,696
ssj_ops@calibrated=93,162
100% 98.9% 93,162 92,093
90% 89.9% 83,846 83,747
80% 80.9% 74,530 75,412
70% 70.0% 65,214 65,200
60% 60.0% 55,897 55,927
50% 49.9% 46,581 46,527
40% 40.6% 37,265 37,806
30% 29.7% 27,949 27,694
20% 20.2% 18,632 18,855
10% 9.7% 9,316 9,041
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,653
Calibration 2     107,891
Calibration 3     105,826
ssj_ops@calibrated=106,858
100% 98.2% 106,858 104,944
90% 89.1% 96,172 95,260
80% 80.1% 85,487 85,625
70% 70.5% 74,801 75,296
60% 59.8% 64,115 63,930
50% 49.8% 53,429 53,226
40% 40.0% 42,743 42,725
30% 30.7% 32,057 32,802
20% 20.3% 21,372 21,645
10% 10.0% 10,686 10,690
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,715
Calibration 2     104,215
Calibration 3     103,950
ssj_ops@calibrated=104,083
100% 99.0% 104,083 103,001
90% 89.6% 93,674 93,211
80% 79.4% 83,266 82,593
70% 70.3% 72,858 73,152
60% 60.0% 62,450 62,482
50% 50.5% 52,041 52,529
40% 40.3% 41,633 41,994
30% 30.4% 31,225 31,627
20% 19.9% 20,817 20,715
10% 10.0% 10,408 10,382
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

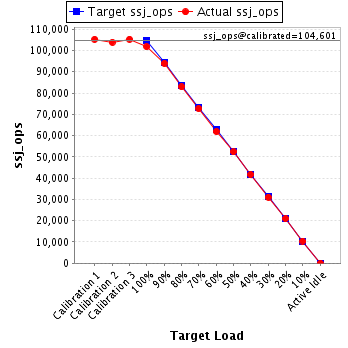

JVM 'WIN-8S1Q51DGKIG.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,272
Calibration 2     103,878
Calibration 3     105,325
ssj_ops@calibrated=104,601
100% 97.3% 104,601 101,773
90% 89.8% 94,141 93,898
80% 79.3% 83,681 82,918
70% 69.5% 73,221 72,717
60% 59.2% 62,761 61,955
50% 50.0% 52,301 52,331
40% 39.8% 41,841 41,638
30% 29.7% 31,380 31,058
20% 20.0% 20,920 20,953
10% 10.0% 10,460 10,449
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,333
Calibration 2     91,578
Calibration 3     91,472
ssj_ops@calibrated=91,525
100% 98.4% 91,525 90,101
90% 91.2% 82,373 83,427
80% 80.0% 73,220 73,259
70% 69.3% 64,068 63,456
60% 59.9% 54,915 54,862
50% 49.2% 45,763 44,990
40% 40.0% 36,610 36,617
30% 29.6% 27,458 27,127
20% 20.8% 18,305 19,009
10% 9.8% 9,153 8,975
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,159
Calibration 2     93,078
Calibration 3     92,945
ssj_ops@calibrated=93,011
100% 98.6% 93,011 91,682
90% 90.7% 83,710 84,319
80% 80.1% 74,409 74,497
70% 70.1% 65,108 65,241
60% 59.9% 55,807 55,701
50% 49.8% 46,506 46,342
40% 40.4% 37,205 37,598
30% 30.5% 27,903 28,370
20% 19.9% 18,602 18,472
10% 10.4% 9,301 9,679
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,581
Calibration 2     92,215
Calibration 3     92,177
ssj_ops@calibrated=92,196
100% 98.5% 92,196 90,831
90% 90.1% 82,976 83,071
80% 79.9% 73,757 73,652
70% 70.3% 64,537 64,840
60% 59.9% 55,318 55,223
50% 49.7% 46,098 45,808
40% 40.1% 36,878 36,926
30% 30.0% 27,659 27,660
20% 20.3% 18,439 18,704
10% 10.1% 9,220 9,279
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,822
Calibration 2     92,760
Calibration 3     93,447
ssj_ops@calibrated=93,104
100% 98.6% 93,104 91,813
90% 90.4% 83,793 84,147
80% 80.1% 74,483 74,595
70% 69.4% 65,173 64,584
60% 60.2% 55,862 56,079
50% 50.1% 46,552 46,688
40% 40.2% 37,242 37,382
30% 29.9% 27,931 27,873
20% 20.1% 18,621 18,703
10% 10.1% 9,310 9,408
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,445
Calibration 2     104,587
Calibration 3     103,073
ssj_ops@calibrated=103,830
100% 99.0% 103,830 102,760
90% 91.1% 93,447 94,553
80% 80.9% 83,064 84,031
70% 69.7% 72,681 72,341
60% 59.7% 62,298 61,978
50% 50.2% 51,915 52,092
40% 39.6% 41,532 41,136
30% 30.2% 31,149 31,307
20% 20.1% 20,766 20,886
10% 10.1% 10,383 10,478
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,669
Calibration 2     104,728
Calibration 3     104,923
ssj_ops@calibrated=104,826
100% 99.4% 104,826 104,174
90% 90.2% 94,343 94,546
80% 80.2% 83,860 84,043
70% 69.9% 73,378 73,224
60% 59.7% 62,895 62,620
50% 50.2% 52,413 52,648
40% 40.4% 41,930 42,366
30% 29.8% 31,448 31,225
20% 20.1% 20,965 21,038
10% 10.1% 10,483 10,594
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,253
Calibration 2     102,188
Calibration 3     105,318
ssj_ops@calibrated=103,753
100% 99.6% 103,753 103,316
90% 90.3% 93,378 93,712
80% 79.0% 83,003 81,946
70% 70.8% 72,627 73,458
60% 59.8% 62,252 62,071
50% 50.2% 51,877 52,059
40% 39.7% 41,501 41,153
30% 29.6% 31,126 30,729
20% 20.1% 20,751 20,804
10% 9.8% 10,375 10,219
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,900
Calibration 2     93,125
Calibration 3     94,256
ssj_ops@calibrated=93,690
100% 98.1% 93,690 91,953
90% 89.2% 84,321 83,611
80% 80.1% 74,952 75,051
70% 70.4% 65,583 65,913
60% 59.9% 56,214 56,094
50% 49.4% 46,845 46,322
40% 40.5% 37,476 37,911
30% 30.1% 28,107 28,155
20% 20.2% 18,738 18,881
10% 10.0% 9,369 9,412
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,704
Calibration 2     93,867
Calibration 3     94,561
ssj_ops@calibrated=94,214
100% 97.9% 94,214 92,195
90% 90.0% 84,793 84,812
80% 80.4% 75,371 75,733
70% 70.1% 65,950 66,027
60% 60.8% 56,528 57,270
50% 50.0% 47,107 47,117
40% 40.1% 37,686 37,752
30% 29.4% 28,264 27,682
20% 19.8% 18,843 18,698
10% 10.3% 9,421 9,725
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,255
Calibration 2     93,485
Calibration 3     94,603
ssj_ops@calibrated=94,044
100% 98.1% 94,044 92,275
90% 91.2% 84,640 85,750
80% 80.0% 75,235 75,199
70% 69.6% 65,831 65,426
60% 59.7% 56,426 56,179
50% 50.6% 47,022 47,568
40% 39.3% 37,618 36,976
30% 30.3% 28,213 28,452
20% 20.5% 18,809 19,264
10% 10.1% 9,404 9,529
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,958
Calibration 2     103,797
Calibration 3     102,519
ssj_ops@calibrated=103,158
100% 98.5% 103,158 101,629
90% 90.9% 92,842 93,776
80% 79.8% 82,526 82,340
70% 71.1% 72,211 73,302
60% 59.7% 61,895 61,594
50% 49.9% 51,579 51,432
40% 40.0% 41,263 41,246
30% 29.6% 30,947 30,572
20% 20.2% 20,632 20,831
10% 9.7% 10,316 10,008
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,784
Calibration 2     105,054
Calibration 3     102,532
ssj_ops@calibrated=103,793
100% 98.9% 103,793 102,688
90% 89.1% 93,414 92,508
80% 80.4% 83,034 83,442
70% 69.5% 72,655 72,095
60% 60.3% 62,276 62,594
50% 49.1% 51,896 50,985
40% 40.4% 41,517 41,963
30% 29.8% 31,138 30,936
20% 19.9% 20,759 20,604
10% 9.9% 10,379 10,316
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,232
Calibration 2     104,624
Calibration 3     105,401
ssj_ops@calibrated=105,012
100% 98.5% 105,012 103,399
90% 90.0% 94,511 94,490
80% 78.7% 84,010 82,625
70% 70.5% 73,509 74,027
60% 59.6% 63,007 62,551
50% 49.9% 52,506 52,359
40% 39.7% 42,005 41,653
30% 29.7% 31,504 31,220
20% 20.1% 21,002 21,135
10% 10.2% 10,501 10,720
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,690
Calibration 2     106,707
Calibration 3     107,232
ssj_ops@calibrated=106,970
100% 98.0% 106,970 104,819
90% 89.6% 96,273 95,825
80% 79.9% 85,576 85,492
70% 70.3% 74,879 75,209
60% 59.5% 64,182 63,680
50% 49.5% 53,485 52,967
40% 38.9% 42,788 41,660
30% 30.1% 32,091 32,210
20% 20.3% 21,394 21,718
10% 10.0% 10,697 10,745
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,557
Calibration 2     92,928
Calibration 3     93,065
ssj_ops@calibrated=92,997
100% 98.3% 92,997 91,377
90% 91.0% 83,697 84,615
80% 80.2% 74,397 74,550
70% 70.2% 65,098 65,307
60% 59.6% 55,798 55,422
50% 50.2% 46,498 46,686
40% 39.2% 37,199 36,425
30% 30.3% 27,899 28,167
20% 19.5% 18,599 18,154
10% 9.8% 9,300 9,136
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,369
Calibration 2     93,128
Calibration 3     95,392
ssj_ops@calibrated=94,260
100% 97.9% 94,260 92,318
90% 88.6% 84,834 83,544
80% 80.9% 75,408 76,245
70% 69.6% 65,982 65,631
60% 59.5% 56,556 56,063
50% 49.6% 47,130 46,709
40% 39.7% 37,704 37,380
30% 30.8% 28,278 29,036
20% 19.9% 18,852 18,721
10% 10.0% 9,426 9,469
Active Idle   0 0

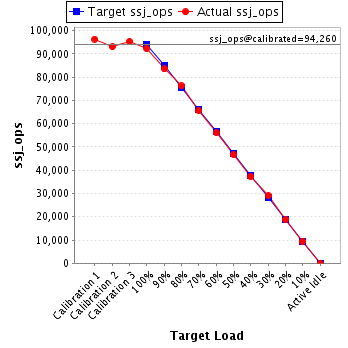

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,959
Calibration 2     94,009
Calibration 3     94,616
ssj_ops@calibrated=94,312
100% 98.7% 94,312 93,063
90% 89.7% 84,881 84,634
80% 79.5% 75,450 74,979
70% 70.8% 66,019 66,766
60% 59.4% 56,587 56,056
50% 50.0% 47,156 47,184
40% 40.1% 37,725 37,858
30% 29.5% 28,294 27,810
20% 20.0% 18,862 18,905
10% 9.8% 9,431 9,225
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,836
Calibration 2     94,224
Calibration 3     95,010
ssj_ops@calibrated=94,617
100% 97.5% 94,617 92,220
90% 90.1% 85,155 85,203
80% 81.2% 75,693 76,815
70% 69.7% 66,232 65,910
60% 60.1% 56,770 56,893
50% 50.0% 47,308 47,323
40% 39.6% 37,847 37,436
30% 30.3% 28,385 28,670
20% 20.2% 18,923 19,116
10% 9.9% 9,462 9,358
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,977
Calibration 2     105,424
Calibration 3     107,832
ssj_ops@calibrated=106,628
100% 97.3% 106,628 103,753
90% 89.7% 95,965 95,658
80% 78.2% 85,302 83,349
70% 70.5% 74,640 75,131
60% 59.8% 63,977 63,804
50% 50.2% 53,314 53,511
40% 40.0% 42,651 42,670
30% 29.7% 31,988 31,711
20% 20.0% 21,326 21,331
10% 9.9% 10,663 10,529
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,750
Calibration 2     103,755
Calibration 3     104,397
ssj_ops@calibrated=104,076
100% 98.2% 104,076 102,251
90% 90.4% 93,668 94,078
80% 80.8% 83,261 84,097
70% 70.8% 72,853 73,702
60% 60.3% 62,446 62,805
50% 50.5% 52,038 52,525
40% 40.1% 41,630 41,772
30% 29.8% 31,223 31,055
20% 20.0% 20,815 20,766
10% 9.8% 10,408 10,148
Active Idle   0 0

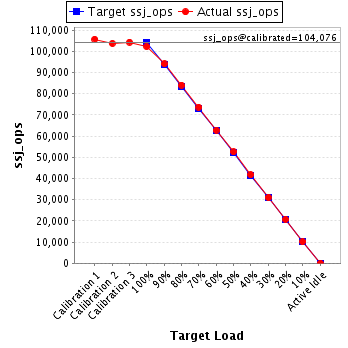

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,224
Calibration 2     105,275
Calibration 3     104,724
ssj_ops@calibrated=105,000
100% 99.9% 105,000 104,946
90% 89.7% 94,500 94,199
80% 80.5% 84,000 84,506
70% 69.1% 73,500 72,542
60% 60.1% 63,000 63,059
50% 50.1% 52,500 52,638
40% 40.1% 42,000 42,132
30% 29.4% 31,500 30,922
20% 19.5% 21,000 20,468
10% 10.0% 10,500 10,457
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,115
Calibration 2     100,717
Calibration 3     103,722
ssj_ops@calibrated=102,220
100% 98.8% 102,220 100,967
90% 89.9% 91,998 91,914
80% 79.8% 81,776 81,552
70% 69.6% 71,554 71,138
60% 60.0% 61,332 61,300
50% 50.4% 51,110 51,548
40% 39.9% 40,888 40,767
30% 29.6% 30,666 30,275
20% 20.1% 20,444 20,562
10% 10.0% 10,222 10,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,216
Calibration 2     92,430
Calibration 3     94,331
ssj_ops@calibrated=93,381
100% 98.4% 93,381 91,930
90% 89.7% 84,043 83,727
80% 79.5% 74,705 74,254
70% 69.6% 65,366 64,976
60% 59.5% 56,028 55,559
50% 49.3% 46,690 46,080
40% 40.4% 37,352 37,715
30% 30.2% 28,014 28,194
20% 20.3% 18,676 18,914
10% 10.2% 9,338 9,554
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,870
Calibration 2     92,600
Calibration 3     93,016
ssj_ops@calibrated=92,808
100% 98.8% 92,808 91,653
90% 88.9% 83,527 82,519
80% 79.7% 74,247 73,982
70% 69.2% 64,966 64,227
60% 59.7% 55,685 55,405
50% 50.0% 46,404 46,427
40% 40.0% 37,123 37,114
30% 30.4% 27,842 28,229
20% 19.8% 18,562 18,354
10% 9.7% 9,281 8,979
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,993
Calibration 2     92,411
Calibration 3     93,795
ssj_ops@calibrated=93,103
100% 98.0% 93,103 91,266
90% 90.4% 83,793 84,158
80% 80.7% 74,482 75,161
70% 69.8% 65,172 64,992
60% 60.7% 55,862 56,553
50% 48.8% 46,552 45,391
40% 40.1% 37,241 37,291
30% 29.6% 27,931 27,564
20% 19.7% 18,621 18,306
10% 9.9% 9,310 9,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,362
Calibration 2     101,353
Calibration 3     101,368
ssj_ops@calibrated=101,361
100% 98.4% 101,361 99,718
90% 90.1% 91,225 91,361
80% 80.5% 81,089 81,553
70% 70.5% 70,952 71,464
60% 60.0% 60,816 60,797
50% 49.9% 50,680 50,582
40% 39.6% 40,544 40,109
30% 30.2% 30,408 30,645
20% 19.6% 20,272 19,855
10% 9.8% 10,136 9,912
Active Idle   0 0

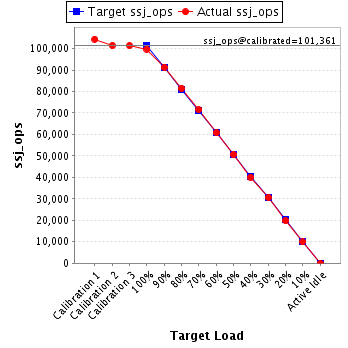

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,879
Calibration 2     103,406
Calibration 3     103,218
ssj_ops@calibrated=103,312
100% 99.6% 103,312 102,934
90% 90.4% 92,981 93,373
80% 80.3% 82,650 82,944
70% 70.4% 72,318 72,782
60% 58.9% 61,987 60,877
50% 50.1% 51,656 51,757
40% 39.8% 41,325 41,147
30% 30.1% 30,994 31,107
20% 19.5% 20,662 20,191
10% 10.0% 10,331 10,291
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,221
Calibration 2     104,805
Calibration 3     105,743
ssj_ops@calibrated=105,274
100% 96.5% 105,274 101,542
90% 90.1% 94,747 94,841
80% 80.1% 84,219 84,297
70% 69.4% 73,692 73,013
60% 59.7% 63,164 62,832
50% 50.6% 52,637 53,253
40% 40.4% 42,110 42,581
30% 29.5% 31,582 31,104
20% 19.7% 21,055 20,688
10% 10.0% 10,527 10,487
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,275
Calibration 2     93,283
Calibration 3     93,741
ssj_ops@calibrated=93,512
100% 97.5% 93,512 91,176
90% 88.9% 84,161 83,125
80% 80.0% 74,809 74,850
70% 69.6% 65,458 65,121
60% 60.0% 56,107 56,149
50% 50.0% 46,756 46,765
40% 40.0% 37,405 37,428
30% 29.2% 28,054 27,312
20% 19.9% 18,702 18,562
10% 10.1% 9,351 9,419
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,120
Calibration 2     93,906
Calibration 3     93,721
ssj_ops@calibrated=93,814
100% 97.9% 93,814 91,846
90% 89.9% 84,432 84,355
80% 79.5% 75,051 74,624
70% 70.1% 65,670 65,785
60% 59.9% 56,288 56,185
50% 50.7% 46,907 47,609
40% 40.5% 37,525 37,959
30% 29.6% 28,144 27,774
20% 20.7% 18,763 19,421
10% 10.2% 9,381 9,604
Active Idle   0 0

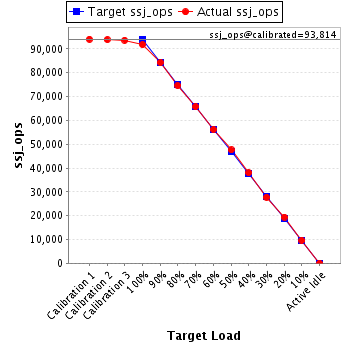

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,979
Calibration 2     92,899
Calibration 3     93,402
ssj_ops@calibrated=93,150
100% 98.3% 93,150 91,554
90% 89.7% 83,835 83,524
80% 79.4% 74,520 74,005
70% 70.2% 65,205 65,362
60% 60.4% 55,890 56,304
50% 49.3% 46,575 45,913
40% 40.0% 37,260 37,279
30% 29.0% 27,945 27,051
20% 20.3% 18,630 18,899
10% 10.3% 9,315 9,629
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,731
Calibration 2     93,463
Calibration 3     94,966
ssj_ops@calibrated=94,214
100% 98.4% 94,214 92,696
90% 90.9% 84,793 85,638
80% 79.7% 75,371 75,088
70% 70.3% 65,950 66,230
60% 60.5% 56,528 56,965
50% 49.6% 47,107 46,751
40% 39.9% 37,686 37,628
30% 29.8% 28,264 28,109
20% 19.6% 18,843 18,438
10% 10.2% 9,421 9,611
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,750
Calibration 2     105,666
Calibration 3     103,819
ssj_ops@calibrated=104,742
100% 98.9% 104,742 103,634
90% 91.6% 94,268 95,992
80% 80.0% 83,794 83,787
70% 70.0% 73,320 73,291
60% 60.3% 62,845 63,193
50% 49.6% 52,371 51,978
40% 39.9% 41,897 41,753
30% 30.1% 31,423 31,532
20% 20.6% 20,948 21,525
10% 10.1% 10,474 10,594
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,244
Calibration 2     105,503
Calibration 3     105,333
ssj_ops@calibrated=105,418
100% 99.6% 105,418 104,967
90% 90.7% 94,876 95,631
80% 79.1% 84,334 83,373
70% 70.2% 73,792 74,016
60% 60.0% 63,251 63,247
50% 49.7% 52,709 52,390
40% 40.4% 42,167 42,544
30% 30.3% 31,625 31,959
20% 19.8% 21,084 20,870
10% 10.2% 10,542 10,729
Active Idle   0 0

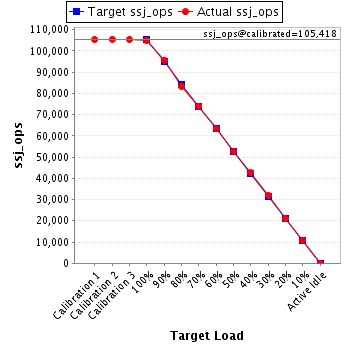

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,249
Calibration 2     101,188
Calibration 3     104,896
ssj_ops@calibrated=103,042
100% 97.5% 103,042 100,502
90% 90.4% 92,738 93,115
80% 79.2% 82,433 81,613
70% 69.8% 72,129 71,900
60% 60.1% 61,825 61,910
50% 49.5% 51,521 50,984
40% 39.2% 41,217 40,367
30% 29.9% 30,913 30,801
20% 19.7% 20,608 20,290
10% 9.9% 10,304 10,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,433
Calibration 2     92,907
Calibration 3     94,924
ssj_ops@calibrated=93,916
100% 98.5% 93,916 92,506
90% 89.3% 84,524 83,892
80% 80.4% 75,133 75,537
70% 69.4% 65,741 65,196
60% 60.0% 56,349 56,354
50% 50.0% 46,958 46,923
40% 39.8% 37,566 37,353
30% 30.0% 28,175 28,212
20% 19.9% 18,783 18,702
10% 9.9% 9,392 9,254
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,044
Calibration 2     92,462
Calibration 3     92,830
ssj_ops@calibrated=92,646
100% 100.0% 92,646 92,622
90% 90.7% 83,381 84,005
80% 79.8% 74,117 73,899
70% 69.6% 64,852 64,479
60% 60.1% 55,588 55,693
50% 50.8% 46,323 47,059
40% 40.5% 37,058 37,523
30% 30.4% 27,794 28,161
20% 20.1% 18,529 18,583
10% 9.9% 9,265 9,196
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,315
Calibration 2     93,080
Calibration 3     92,773
ssj_ops@calibrated=92,926
100% 99.1% 92,926 92,120
90% 90.4% 83,634 84,019
80% 80.6% 74,341 74,876
70% 69.5% 65,048 64,547
60% 59.8% 55,756 55,582
50% 50.1% 46,463 46,571
40% 40.5% 37,171 37,612
30% 30.0% 27,878 27,885
20% 20.0% 18,585 18,596
10% 9.8% 9,293 9,066
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,198
Calibration 2     101,998
Calibration 3     103,828
ssj_ops@calibrated=102,913
100% 97.7% 102,913 100,527
90% 90.0% 92,622 92,613
80% 79.4% 82,330 81,748
70% 69.5% 72,039 71,507
60% 60.2% 61,748 61,908
50% 50.0% 51,456 51,476
40% 40.4% 41,165 41,531
30% 29.9% 30,874 30,774
20% 20.1% 20,583 20,724
10% 9.7% 10,291 10,023
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,188
Calibration 2     103,740
Calibration 3     101,239
ssj_ops@calibrated=102,490
100% 99.0% 102,490 101,493
90% 89.8% 92,241 92,068
80% 80.2% 81,992 82,160
70% 70.2% 71,743 71,936
60% 59.3% 61,494 60,825
50% 50.1% 51,245 51,301
40% 40.0% 40,996 41,039
30% 29.8% 30,747 30,507
20% 20.6% 20,498 21,065
10% 10.1% 10,249 10,339
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,193
Calibration 2     106,856
Calibration 3     105,306
ssj_ops@calibrated=106,081
100% 97.9% 106,081 103,867
90% 91.1% 95,473 96,616
80% 80.9% 84,865 85,867
70% 70.3% 74,257 74,533
60% 60.0% 63,649 63,609
50% 50.2% 53,040 53,239
40% 39.9% 42,432 42,375
30% 30.2% 31,824 32,047
20% 20.0% 21,216 21,207
10% 10.0% 10,608 10,645
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,532
Calibration 2     106,161
Calibration 3     106,189
ssj_ops@calibrated=106,175
100% 95.6% 106,175 101,488
90% 90.2% 95,558 95,807
80% 79.9% 84,940 84,857
70% 70.8% 74,323 75,224
60% 59.7% 63,705 63,392
50% 49.8% 53,088 52,883
40% 39.9% 42,470 42,411
30% 30.3% 31,853 32,126
20% 19.8% 21,235 21,021
10% 9.9% 10,618 10,554
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,700
Calibration 2     91,125
Calibration 3     92,627
ssj_ops@calibrated=91,876
100% 99.5% 91,876 91,413
90% 90.1% 82,688 82,764
80% 79.4% 73,501 72,986
70% 70.1% 64,313 64,369
60% 59.0% 55,126 54,171
50% 49.1% 45,938 45,071
40% 39.9% 36,750 36,691
30% 30.2% 27,563 27,724
20% 20.0% 18,375 18,414
10% 10.1% 9,188 9,306
Active Idle   0 0

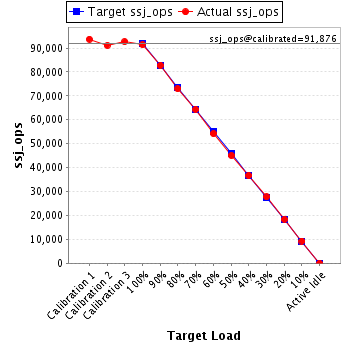

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,891
Calibration 2     93,906
Calibration 3     94,866
ssj_ops@calibrated=94,386
100% 98.6% 94,386 93,065
90% 88.6% 84,947 83,627
80% 79.8% 75,509 75,343
70% 69.8% 66,070 65,843
60% 60.3% 56,632 56,895
50% 50.3% 47,193 47,480
40% 39.8% 37,754 37,594
30% 30.2% 28,316 28,539
20% 19.7% 18,877 18,554
10% 9.8% 9,439 9,270
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,232
Calibration 2     94,477
Calibration 3     94,565
ssj_ops@calibrated=94,521
100% 98.5% 94,521 93,149
90% 89.8% 85,069 84,864
80% 79.7% 75,617 75,294
70% 69.7% 66,165 65,852
60% 60.3% 56,713 56,970
50% 50.1% 47,261 47,384
40% 40.1% 37,809 37,888
30% 30.1% 28,356 28,407
20% 19.4% 18,904 18,382
10% 9.6% 9,452 9,100
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,313
Calibration 2     93,337
Calibration 3     95,443
ssj_ops@calibrated=94,390
100% 98.7% 94,390 93,129
90% 91.0% 84,951 85,878
80% 79.8% 75,512 75,321
70% 69.1% 66,073 65,251
60% 59.3% 56,634 56,013
50% 50.0% 47,195 47,193
40% 39.8% 37,756 37,572
30% 30.1% 28,317 28,427
20% 19.9% 18,878 18,816
10% 10.5% 9,439 9,933
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
