Huawei Technologies Co., Ltd FusionServer CH121 V3 ssj_ops@100% = 30,620,865
ssj_ops@100% per Host = 3,062,087
ssj_ops@100% per JVM = 191,380
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Sep 17, 2016
Hardware Availability: Mar-2016 Software Availability: Jan-2015 Publication: Dec 21, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     31,170,960
Calibration 2     30,664,388
Calibration 3     30,717,803
ssj_ops@calibrated=30,691,096
100% 99.8% 30,691,096 30,620,865
90% 90.0% 27,621,986 27,620,845
80% 80.0% 24,552,876 24,537,699
70% 70.0% 21,483,767 21,494,553
60% 60.0% 18,414,657 18,416,559
50% 50.0% 15,345,548 15,345,830
40% 40.0% 12,276,438 12,267,267
30% 30.0% 9,207,329 9,209,014
20% 20.0% 6,138,219 6,145,152
10% 10.0% 3,069,110 3,069,909
Active Idle   0 0

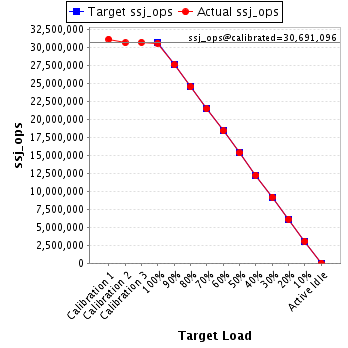

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
10 20 320 640 5,120 10 160
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Huawei FusionServer E9000
Form Factor: 12U
Power Supply Quantity and Rating (W): 6 x 3000
Power Supply Details: Huawei P/N 02310LKL
Network Switch: Huawei Quidway S5348TP-SI
Network Switch Details: 48-PORT Quidway S5348TP-SI
KVM Switch: None
KVM Switch Details: None
Other Hardware: <ul><li>2 x CX310 10 GE switch module Huawei P/N 03054849.</li><li>2 x MM910 shelf management module Huawei P/N 03054675.</li><li>14 x hot-swappable fan module Huawei P/N 03030QEJ.</li><li>
Comment: None
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 10
Comment: None
Hardware per Node
Hardware Vendor: Huawei Technologies Co., Ltd
Model: FusionServer CH121 V3
Form Factor: 12U
CPU Name: Intel Xeon E5-2683 V4
CPU Characteristics: 16-Core, 2.1GHz, 40MB L3 Cache (Intel Turbo Boost Technology up to 3.0GHz)
CPU Frequency (MHz): 2100
CPU(s) Enabled: 32 cores, 2 chips, 16 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 40 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32 GB
Memory Details: 32GB 2Rx4 PC4-2400T ECC RDIMM;slots DIMM000, DIMM001, DIMM010, DIMM011, DIMM020, DIMM021, DIMM030, DIMM030, DIMM100, DIMM101, DIMM110, DIMM111, DIMM120, DIMM121, DIMM130, and DIMM131 populated
Power Supply Quantity and Rating (W): 6 x 3000
Power Supply Details: Shared
Disk Drive: 2 x 300GB HDD 2.5" SAS Huawei P/N 02311EXX
Disk Controller: LSI 3008
# and type of Network Interface Cards (NICs) Installed: 1 x Quad-port 10Gigabit Ethernet controller CNA Mezzanine Card Huawei P/N 03022ATY
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1400m -Xms1575m -Xmx1575m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=4 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000,F000000000000,F0000000000000,F00000000000000,F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1575
JVM Maximum Heap (MB): 1575
JVM Address Bits: 64
Boot Firmware Version: 3.26
Management Firmware Version: 2.08
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
WIN-077TRT4GEF2 3,014,684
WIN-55BH8MNMDU7 3,084,779
WIN-5C8S426S2RU 3,100,233
WIN-6BC44BKC4CK 3,047,901
WIN-6EM57JFRD2U 3,037,977
WIN-GJIUEU859PS 3,083,864
WIN-K9FDIH0FKUS 3,031,521
WIN-LPJCV7B9839 3,055,723
WIN-R596DNGV8HH 3,070,466
WIN-UDBKKJI1UBH 3,093,717
ssj_ops@100% 30,620,865
ssj_ops@100% per Host 3,062,087
ssj_ops@100% per JVM 191,380

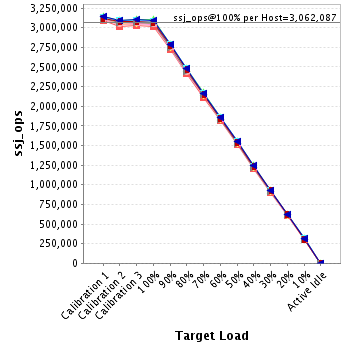

Graph of per-host results
Host 'WIN-077TRT4GEF2' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,087,117
Calibration 2     3,018,617
Calibration 3     3,023,416
ssj_ops@calibrated=3,021,017
100% 99.8% 3,021,017 3,014,684
90% 90.0% 2,718,915 2,719,956
80% 80.0% 2,416,813 2,416,725
70% 70.1% 2,114,712 2,117,021
60% 60.0% 1,812,610 1,812,384
50% 50.2% 1,510,508 1,515,052
40% 40.0% 1,208,407 1,208,294
30% 29.9% 906,305 903,757
20% 20.0% 604,203 604,087
10% 10.0% 302,102 302,555
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-55BH8MNMDU7' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,125,911
Calibration 2     3,094,601
Calibration 3     3,093,981
ssj_ops@calibrated=3,094,291
100% 99.7% 3,094,291 3,084,779
90% 90.0% 2,784,862 2,786,392
80% 79.9% 2,475,433 2,471,537
70% 70.0% 2,166,004 2,165,634
60% 60.0% 1,856,574 1,857,961
50% 50.0% 1,547,145 1,546,874
40% 40.0% 1,237,716 1,236,872
30% 30.1% 928,287 929,912
20% 20.0% 618,858 618,609
10% 10.0% 309,429 309,962
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-5C8S426S2RU' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,139,866
Calibration 2     3,097,552
Calibration 3     3,104,275
ssj_ops@calibrated=3,100,913
100% 100.0% 3,100,913 3,100,233
90% 90.0% 2,790,822 2,790,485
80% 79.8% 2,480,731 2,475,595
70% 70.1% 2,170,639 2,172,215
60% 59.9% 1,860,548 1,858,844
50% 50.0% 1,550,457 1,552,003
40% 40.0% 1,240,365 1,239,926
30% 30.0% 930,274 930,906
20% 20.0% 620,183 620,203
10% 10.0% 310,091 310,572
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-6BC44BKC4CK' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,101,915
Calibration 2     3,052,482
Calibration 3     3,056,113
ssj_ops@calibrated=3,054,298
100% 99.8% 3,054,298 3,047,901
90% 90.1% 2,748,868 2,750,998
80% 79.9% 2,443,438 2,441,460
70% 70.1% 2,138,008 2,142,196
60% 59.9% 1,832,579 1,830,861
50% 50.0% 1,527,149 1,527,253
40% 39.9% 1,221,719 1,220,158
30% 30.0% 916,289 915,904
20% 19.9% 610,860 609,010
10% 10.0% 305,430 306,066
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-6EM57JFRD2U' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,109,316
Calibration 2     3,042,702
Calibration 3     3,047,473
ssj_ops@calibrated=3,045,088
100% 99.8% 3,045,088 3,037,977
90% 90.0% 2,740,579 2,740,460
80% 80.0% 2,436,070 2,435,797
70% 70.1% 2,131,561 2,133,515
60% 60.1% 1,827,053 1,828,710
50% 49.9% 1,522,544 1,520,916
40% 39.9% 1,218,035 1,214,116
30% 30.1% 913,526 916,159
20% 20.1% 609,018 611,860
10% 10.0% 304,509 303,171
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-GJIUEU859PS' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,129,538
Calibration 2     3,089,045
Calibration 3     3,097,010
ssj_ops@calibrated=3,093,027
100% 99.7% 3,093,027 3,083,864
90% 90.0% 2,783,724 2,783,089
80% 80.0% 2,474,422 2,475,770
70% 70.0% 2,165,119 2,166,412
60% 60.1% 1,855,816 1,858,532
50% 50.1% 1,546,514 1,550,477
40% 39.9% 1,237,211 1,233,107
30% 30.1% 927,908 931,622
20% 20.0% 618,605 619,771
10% 10.1% 309,303 311,935
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.

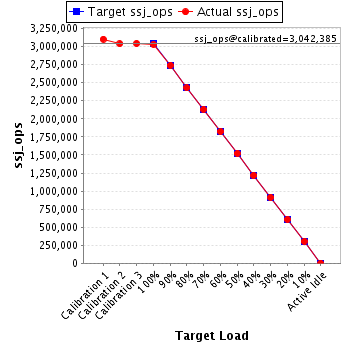

Host 'WIN-K9FDIH0FKUS' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,103,653
Calibration 2     3,040,436
Calibration 3     3,044,334
ssj_ops@calibrated=3,042,385
100% 99.6% 3,042,385 3,031,521
90% 90.1% 2,738,147 2,741,386
80% 79.8% 2,433,908 2,428,382
70% 70.1% 2,129,670 2,132,408
60% 60.0% 1,825,431 1,824,517
50% 49.9% 1,521,193 1,519,440
40% 40.0% 1,216,954 1,217,462
30% 30.0% 912,716 912,388
20% 20.0% 608,477 608,480
10% 10.0% 304,239 303,724
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-LPJCV7B9839' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,114,285
Calibration 2     3,060,173
Calibration 3     3,064,916
ssj_ops@calibrated=3,062,544
100% 99.8% 3,062,544 3,055,723
90% 89.9% 2,756,290 2,752,370
80% 79.9% 2,450,035 2,445,823
70% 70.0% 2,143,781 2,144,078
60% 60.0% 1,837,527 1,836,063
50% 49.9% 1,531,272 1,528,562
40% 40.0% 1,225,018 1,224,819
30% 29.9% 918,763 915,544
20% 20.1% 612,509 615,286
10% 10.0% 306,254 304,808
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-R596DNGV8HH' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,114,791
Calibration 2     3,073,010
Calibration 3     3,081,245
ssj_ops@calibrated=3,077,127
100% 99.8% 3,077,127 3,070,466
90% 90.0% 2,769,415 2,770,078
80% 80.1% 2,461,702 2,463,691
70% 70.0% 2,153,989 2,154,353
60% 60.0% 1,846,276 1,847,776
50% 49.9% 1,538,564 1,534,198
40% 40.0% 1,230,851 1,230,482
30% 30.0% 923,138 924,512
20% 20.1% 615,425 617,232
10% 10.0% 307,713 307,441
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.

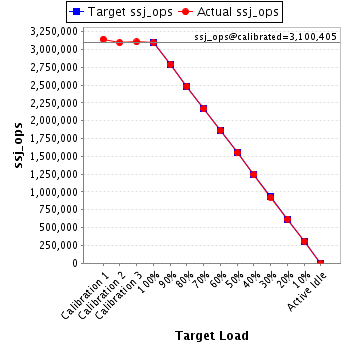

Host 'WIN-UDBKKJI1UBH' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,144,569
Calibration 2     3,095,770
Calibration 3     3,105,041
ssj_ops@calibrated=3,100,405
100% 99.8% 3,100,405 3,093,717
90% 89.8% 2,790,365 2,785,632
80% 80.1% 2,480,324 2,482,922
70% 69.9% 2,170,284 2,166,722
60% 60.0% 1,860,243 1,860,910
50% 50.0% 1,550,203 1,551,055
40% 40.1% 1,240,162 1,242,033
30% 29.9% 930,122 928,311
20% 20.0% 620,081 620,613
10% 10.0% 310,041 309,676
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
