Huawei Technologies Co., Ltd FusionServer CH121 V3 SPECpower_ssj2008 = 5,555 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Sep 17, 2016
Hardware Availability: Mar-2016 Software Availability: Jan-2015 Publication: Dec 21, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 4,399 21.5
Calibration 2 4,426 21.7
Calibration 3 4,430 21.8
100% 4,425 21.9
90% 4,097 21.9
80% 3,654 21.9
70% 3,150 22.0
60% 2,817 22.2
50% 2,577 22.2
40% 2,391 22.2
30% 2,187 22.3
20% 2,007 22.3
10% 1,821 22.2
Active Idle 1,250 22.2
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91MC13547
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: A16002467-0051
Date of Calibration: 21-Mar-2016
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.0-efc0c004-20160120
Setup Description: SUT power supplies 1,2,3
Power Analyzer pwr2
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91L704197
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: A15012323-0014
Date of Calibration: 9-Dec-2015
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.0-efc0c004-20160120
Setup Description: SUT power supplies 4,5,6
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 225 300.0 13.0 20.0 0.996 2,905 0.4%
Calibration 2 225 300.0 13.1 20.0 0.996 2,923 0.4%
Calibration 3 225 300.0 13.1 20.0 0.996 2,926 0.4%
100% 225 300.0 13.0 20.0 0.996 2,922 0.4%
90% 225 300.0 12.1 20.0 0.995 2,702 0.4%
80% 225 300.0 10.8 20.0 0.994 2,429 0.4%
70% 226 300.0 9.22 20.0 0.992 2,066 0.5%
60% 226 300.0 8.24 10.0 0.991 1,844 0.3%
50% 226 300.0 7.52 10.0 0.989 1,684 0.4%
40% 227 300.0 6.94 10.0 0.988 1,554 0.4%
30% 227 300.0 6.33 10.0 0.986 1,416 0.4%
20% 227 300.0 5.80 10.0 0.983 1,295 0.4%
10% 228 300.0 5.24 10.0 0.980 1,169 0.4%
Active Idle 229 300.0 3.62 5.0 0.944 782 0.4%

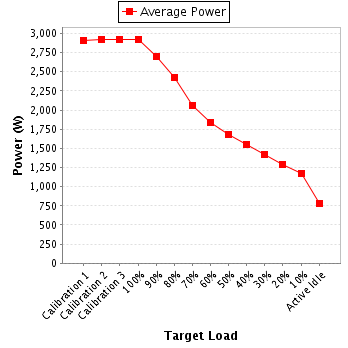

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 225 300.0 6.67 10.0 0.995 1,494 0.4%
Calibration 2 225 300.0 6.70 10.0 0.995 1,503 0.4%
Calibration 3 225 300.0 6.71 10.0 0.995 1,504 0.4%
100% 225 300.0 6.70 10.0 0.995 1,502 0.4%
90% 225 300.0 6.22 10.0 0.995 1,395 0.4%
80% 226 300.0 5.45 10.0 0.995 1,225 0.4%
70% 227 300.0 4.82 10.0 0.993 1,085 0.4%
60% 227 300.0 4.32 5.0 0.992 973 0.3%
50% 227 300.0 3.98 5.0 0.991 894 0.3%
40% 227 300.0 3.73 5.0 0.990 837 0.4%
30% 227 300.0 3.43 5.0 0.989 770 0.4%
20% 228 300.0 3.17 5.0 0.987 712 0.4%
10% 228 300.0 2.90 5.0 0.985 651 0.4%
Active Idle 230 300.0 2.10 5.0 0.973 468 0.5%

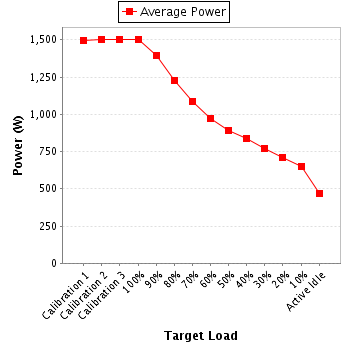

Power details for pwr2
